Rohm USB PD Series User Manual

USB PD Controller Series
Stand-Alone PD Controller for Sink
BD93F10MWV EVK
BD93F10MWV-EVK-001 (Stand-Alone)
Introduction
This User's Guide describes the series of required procedures to operate and evaluate the EVK of the PD controller BD93F10MWV
for Sink. The documentation also contains the circuit components, operating procedures, and the Application Data.
Overview

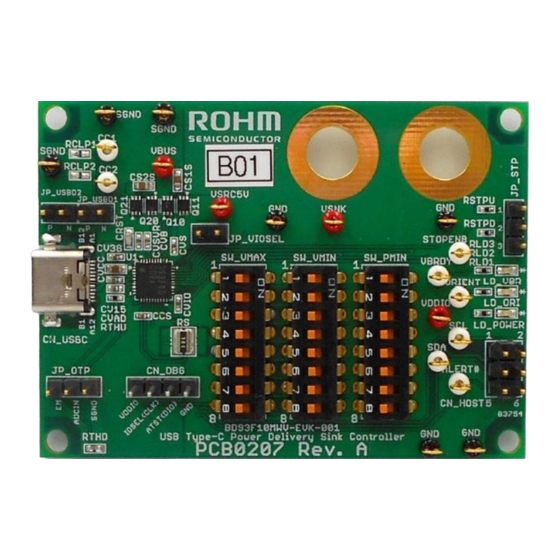

BD93F10MWV-EVK-001 implements Stand-Alone PD Controller IC of BD93F10MWV in Sink mode. This EVK performs the Type-
C connection and make PD contracts with an attached Source device according to the configuration of the DIP switches on the
board. The EVK assumes Stand-Alone operation in the Dead Battery mode, so this EVK does not need an external power source
and works as a VBUS powered product. The board will supply power and voltage via VSNK terminal based on the negotiation
contracted with the source. Therefore, any existing board that is powered by an AC adapter or a regulated power supply up to
80W/20V can work and be evaluated with the EVK as a Type-C/PD power source.
EVK Operation Condition
Parameter
VBUS Power Supply
VSRC5V Power Supply
VSNK Output Voltage
VSNK Output Current Range
© 2021 ROHM Co., Ltd.
Min Typ Max
3.67 5.0
3.1 5.0 5.5
4.75 5.0
3.0/5.0
1/18
Downloaded From Oneyac.com
User's Guide
Units
22 V
V
Guaranteed by USB Standard and
22 V
connected Source.
Depending on the Type-C cable. The
actual load current is depending on the
A
sink device operation that connects to
VSNK terminal.
Conditions
No. 64UG054E Rev.001
2021.10
