Rohm BSMGD3G12D24-EVK001 User Manual

Evaluation board for e/g-type full sic module with 3rd generation sic-mosfet
Hide thumbs

Advertisement

Table of Contents

Evaluation Board for
E/G-type Full SiC Module with
rd
3
Generation SiC-MOSFET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSMGD3G12D24-EVK001 and is the answer not in the manual?

Questions and answers

Related Manuals for Rohm BSMGD3G12D24-EVK001

Summary of Contents for Rohm BSMGD3G12D24-EVK001

  • Page 1 Evaluation Board for E/G-type Full SiC Module with Generation SiC-MOSFET...

  • Page 2: High Voltage Safety Precautions

    [8] Be sure to wear insulated gloves when handling is required during operation. After Use [9] The ROHM Evaluation Board contains circuits which store high voltage. Since it stores charges even after turning off the connected power circuits, please discharge the electricity after using it, and please deal with it after confirming such electric discharge.

  • Page 3: Precautions For Use

    About operation check Gate drive output will not work without assembling a SiC-module, because of the Short Circuit Protection feature (SCP). Please assemble the SiC-module before checking the operation of the board. www.rohm.com HVB01E © 2019 ROHM Co., Ltd. All rights reserved.

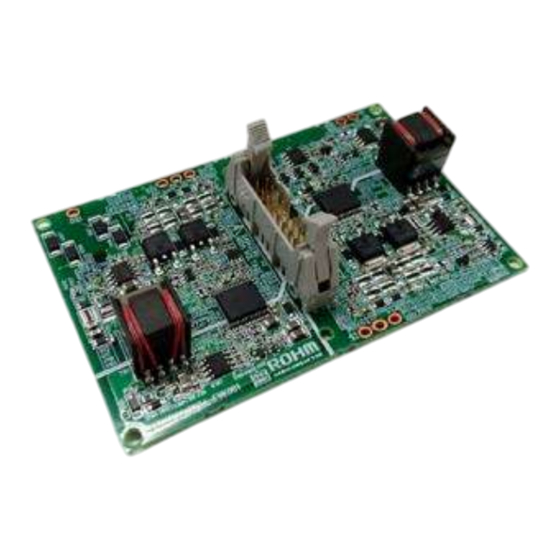

  • Page 4 Generation SiC-MOSFET BSMGD3G12D24-EVK001 １．Overview This evaluation board, BSMGD3G12D24-EVK001, is a gate driver board for full SiC Modules with the 3 Generation SiC-MOSFET in G and E type housing. This evaluation board contains all the necessary components for optimal and safety driving the SiC module.

  • Page 5: Pin Assignment

    Module pin is described in Table 2, and connector CN1 pin is described in Table3. ⑯ ⑮ ⑭ ⑬ ⑫ ⑪ ⑩ ⑨ FLT-L ⑧ ⑦ PWM-L ⑥ ⑤ FLT-H ④ ③ PWM-H ② ① Figure 2. Pin assignment © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 2/29 SEP.2024...
  • Page 6 Table 2. Module Pin Descriptions Pin name details Drain sense (High side) Gate (High side) Source sense(High side) Gate (Low side) Source sense (Low side) Thermistor Thermistor Figure 3. MOSFET Module Pin assignment © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 3/29 SEP.2024...
  • Page 7 When ENA is “H” level or open, output is disabled. 12 GND Ground 13 VCC Power Supply Voltage 14 GND Ground 15 TH Temperature monitoring output pin 16 GND Ground © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 4/29 SEP.2024...
  • Page 8 ENA is pulled up by a resistor, so in case of open input, the ENA is “H”. Figure 6. ENA I/O equivalence circuits ■TH TH is output pin of the Thermistor voltage in SiC module. ＋ － Figure 7. TH I/O equivalence circuits © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 5/29 SEP.2024...
  • Page 9 The Gate drive output voltage is +19V / 0V. ■Fly-back power supply Fly-back power supply consists of ROHM’s Isolated Fly-back Converter (BD7F200EFJ) and transformer. For modification of the output voltage, please check the datasheet of BD7F200EFJ. ■Short Circuit Protection (SCP) When the Drain-Source voltage of SiC module during on state exceeds V , SCP function will be activated.
  • Page 10 Module. The Thermistor Temperature vs. The output Voltage of TH is shown in Figure 9. Table 4 shows , the resistance of thermistor and the output voltage of TH for each temperature of the thermistor. The Thermistor Temperature[ ℃ ] Figure 9. The Thermistor Temperature vs. The Output Voltage of TH © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 7/29 SEP.2024...
  • Page 11 ○ ○ × ON -Note H input ○:>UVP,<OVP、 ×:Don’t care Note: In case of both PWM-H and PWM-L are “H” level, SiC-MOSFET is “OFF”. (High-Side and Low-Side Simultaneous conduction prevention) © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 8/29 SEP.2024...

  • Page 12: Function Block Diagram

    User’s Guide BSMGD3G12D24-EVK001 4.3 Function block diagram Function block diagram is shown in Figure 10. Driving, Logic and Protection functions are highlighted. Figure 10. Function block diagram © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 9/29 SEP.2024...

  • Page 13: Specification

    Release voltage 16.5 CC2UVC Active voltage 21.5 CC2OV Over Voltage Protection of Gate Drive Positive bias Voltage(V Release voltage 21.3 CC2OVC Between Darin and Short Circuit detection voltage 13.5 SCDET Source © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 10/29 SEP.2024...

  • Page 14: How To Use

    6.１.1 Peripheral circuits for gate resistors and soft turn-off resistors The SiC-MOSFET is driven by ROHM’s gate driver IC BM60054AFV-C. When the SCP function is activated, the MOSFET will be turned-off slowly (soft turn-off). The turn off time is based on soft turn-off resistors. The schematics are shown in Figure 11 and Figure 6.１.２...
  • Page 15 Peripheral circuits for gate resistors and soft turn-off resistors Turn off:R124,R125 Turn on:R120,R121 R122,R123 R118,R119 Soft turn off:R126 Figure 12. The mounting position of gate resistors and soft turn-off resistors © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 12/29 SEP.2024...
  • Page 16 Figure 13. Peripheral circuits for gate resistors and soft turn-off resistors Gate resistors Soft turn-off resistors NM：Not Mounted Figure 14. The mounting position of gate resistors and soft turn-off resistors © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 13/29 SEP.2024...
  • Page 17 Determination Criteria ②:No breakdown ■Gate resistors Please adjust the value of the gate resistors to not exceed the maximum rating of the drain–source voltage and the gate-source voltage at your actual application. © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 14/29 SEP.2024...
  • Page 18 BSMGD3G12D24-EVK001 User’s Guide ■Soft turn-off resistors Please adjust soft turn-off resistors to not exceed the maximum rating of the drain–source voltage at your actual application. © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 15/29 SEP.2024...
  • Page 19 Input signal for CN1-7 Low side CN1-8 FLT-L Alarm(Low side) CN1-9 CN1-10 CN1-11 Enabling signal CN1-12 CN1-13 CN1-14 CN1-15 ＋ Temperature monitor － output CN1-16 Figure 15. Recommended Interface Circuit © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 16/29 SEP.2024...

  • Page 20: Power On/Off Sequence

    Otherwise DUT is likely to be damaged due to voltage overshoot. Power On Power Off Sequence Sequence HVDC 800V to 0V (24V) (5V) (5V) (5V) (5V) HVDC 0V to 800V (24V) Figure 16. Power On/Off sequence © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 17/29 SEP.2024...
  • Page 21 ⑥ ⑤ FLT-H ④ ③ PWM-H ② ① NC 6 5 Figure 17. This evaluation board’s pins numbering 【SiC Module】 10 11 SiC module ’ s pins numbering Figure 18. © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 18/29 SEP.2024...
  • Page 22 Note1 : Tightening torque 0.8N ・ m Note2 : Tighten diagonally ② Soldering terminal No.5 to 11 Figure 19. The assembled state of the evaluation board and SiC module © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 19/29 SEP.2024...
  • Page 23 . When the SCP function is released, FLT will be set to the “L” level and the gate drive output will be SCDET enabled again. 500ns/div :200V/div :2kA/div :5V/div The SCP waveform （ BSM600D12P3G001 ） Figure 20. © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 20/29 SEP.2024...
  • Page 24 BSMGD3G12D24-EVK001 User’s Guide 8. Schematics 8.1 High side © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 21/29 SEP.2024...
  • Page 25 User’s Guide BSMGD3G12D24-EVK001 8.2 Low side © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 22/29 SEP.2024...
  • Page 26 User’s Guide BSMGD3G12D24-EVK001 8.3 Common © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 23/29 SEP.2024...
  • Page 27 IC104,IC204,, BD71L4LG-1GTR Reset IC ROHM IC105,IC205,, S-19110PABH-M6T1U4 Reset IC ABLIC ※1 IC3,,, BU4S81G2-TR AND(single) ROHM IC4,,, BU7261SG-TR OP amp ROHM IC5,IC6,IC7,IC8 BU4S11G2-TR NAND(single) ROHM Table 10. Bill of Materials (2) © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 24/29 SEP.2024...
  • Page 28 R136,R236,, LTR18EZPFLR470 0.47Ω,1%,1W ROHM Resistor R137,R237,, MCR03EZPFX1000 100Ω,1%,1/10W ROHM Resistor R138,R238,, MCR03EZPFX4702 47kΩ,1%,1/10W ROHM Resistor R139,R239,, MCR01MZPF1001 1kΩ,1%,1/16W ROHM Resistor R140,R240,, MCR01MZPF3600 360Ω,1%,1/16W ROHM R141,R146,R150,R241 Resistor MCR01MZPF2202 22kΩ,1%,1/16W ROHM R246,R250,, © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 25/29 SEP.2024...
  • Page 29 ZD103,ZD203,, TFZVTR6.2B 6.2V, 20mA ROHM *1. As for 'ABLIC' products, please contact ' Kanematsu Futuretech Solutions' Because this part name is ROHM custom. mailto:Masateru_Kojima@kft.kanematsu.co.jp *2. Please find the website of ' PROTERIAL'. https://www.proterial.com/products/soft_magnetism/isolation_transformer.html © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 26/29 SEP.2024...
  • Page 30 User’s Guide BSMGD3G12D24-EVK001 10.Layout Figure 24. Top-Layer(Top view) Figure 25. Layer 2(Top view) © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 27/29 SEP.2024...
  • Page 31 User’s Guide BSMGD3G12D24-EVK001 Figure 26. Layer 3(Top view) Figure 27. Layer 4(Top view) © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 28/29 SEP.2024...
  • Page 32 User’s Guide BSMGD3G12D24-EVK001 Figure 28. Layer 5(Top view) Figure 29. Bottom-Layer(Top view) © 2019 ROHM Co., Ltd. No. 62UG024E Rev.004 29/29 SEP.2024...
  • Page 33 Specific Applications). Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses, or losses incurred by you or third parties arising from the use of ROHM Products for Specific Applications.
