Rohm KXTJ3-1057-EVK-002 User Manual

Accelerometer
KXTJ3-1057-EVK-002 Manual

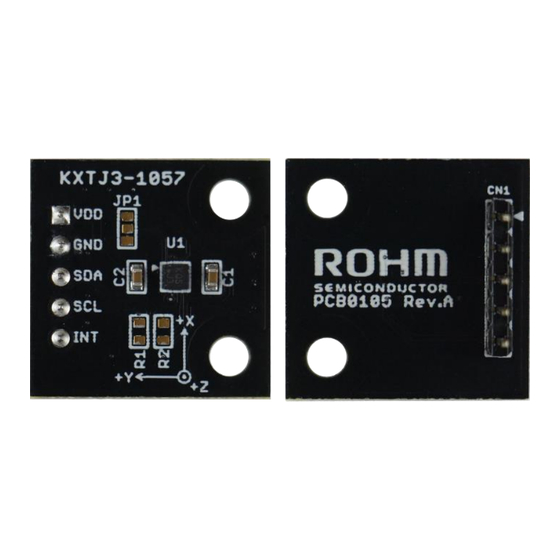

KXTJ3-1057-EVK-002 is an evaluation board for KXTJ3-1057, which is ROHM accelerometer. This User's Guide is about how to use KXTJ3-1057-
EVK-002 together with ROHM Shield for Arduino
*1 ROHM Shield for Arduino is sold separately or as part of ROHM sensor evaluation kit. This User's Guide uses Shield-EVK-001 of Shield for
Arduino.
Preparation
・
KXTJ3-1057-EVK-002
・
Shield for Arduino
・
Arduino Uno
・
USB Cable
・
Computer Installed Arduino IDE
-
Requirement: Arduino IDE 1.8.13 or higher
-
Please get Arduino IDE from the link below:
http://www.arduino.cc/
Setting
Connect Arduino Uno and Shield for Arduino. (Figure 1)
1.

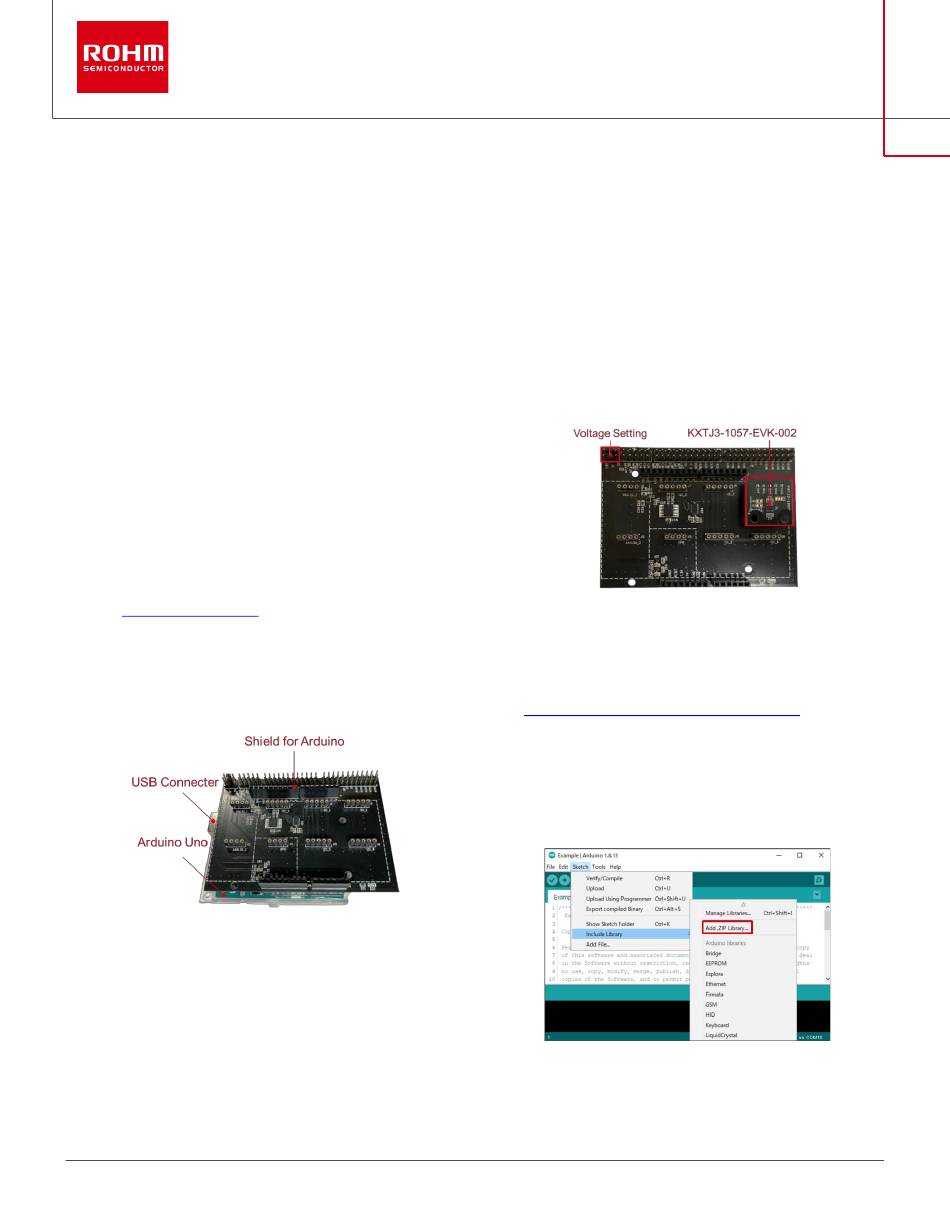

Figure 1. Connection of Arduino Uno and Shield for Arduino
Connect KXTJ3-1057-EVK-002 to the socket of I2C area
2.
on Shield for Arduino. (Figure 2)
Set the voltage of Shield for Arduino to 1.8V or 3.0V.
3.
(Figure 2)
© 2021 ROHM Co., Ltd.
*1 .
1pc
1pc
1pc
1pc
1pc
4.
5.
6.
7.
8.
1/3
User's Guide
Figure 2. Board Connection and Voltage Setting
Connect Arduino Uno to Computer using USB cable.
*2
Get KXTJ3-1057 Software from the link below:
https://www.rohm.com/sensor-shield-support
*2 The software is subject to change without notice.
Launch Arduino IDE.
Select [Sketch] -> [Include Library] -> [Add.ZIP library...],
then KXTJ3-1057 Software. (Figure 3)
Figure 3. Software Installation
Select [File] -> [Examples] -> [Examples from custom
libraries], then KXTJ3-1057 Software.
No. 63UG100E Rev.002
Mar.2021
