Connection to Side-mounted Terminals

1. Remove both terminal screws from the vehicle battery.
2. Screw a 3/8" nut (
1-1/2" bolt furnished in kit.
(1)
3. Slip a 3/8" washer
4. Slide the positive (red wire with fuse link
ring onto the positive (+) battery terminal bolt.
5. Slip a second 3/8" washer
6. Slide the vehicle positive battery cable onto the bolt.
7. Thread the bolt assembly (steps 1--6, above) into the
positive battery terminal. Tighten the bolt securely.
8. Tighten the nut against the washers and cables.
Repeat steps #2 thru #8 for the negative wire (black or brown) from the battery
cable, hooking up the negative cables to the negative (- -) battery terminal.
2
1
6
1. Bolt
2. Nut
3. Vehicle battery
4. Vehicle battery cable
5. Fuse link
6. Washers

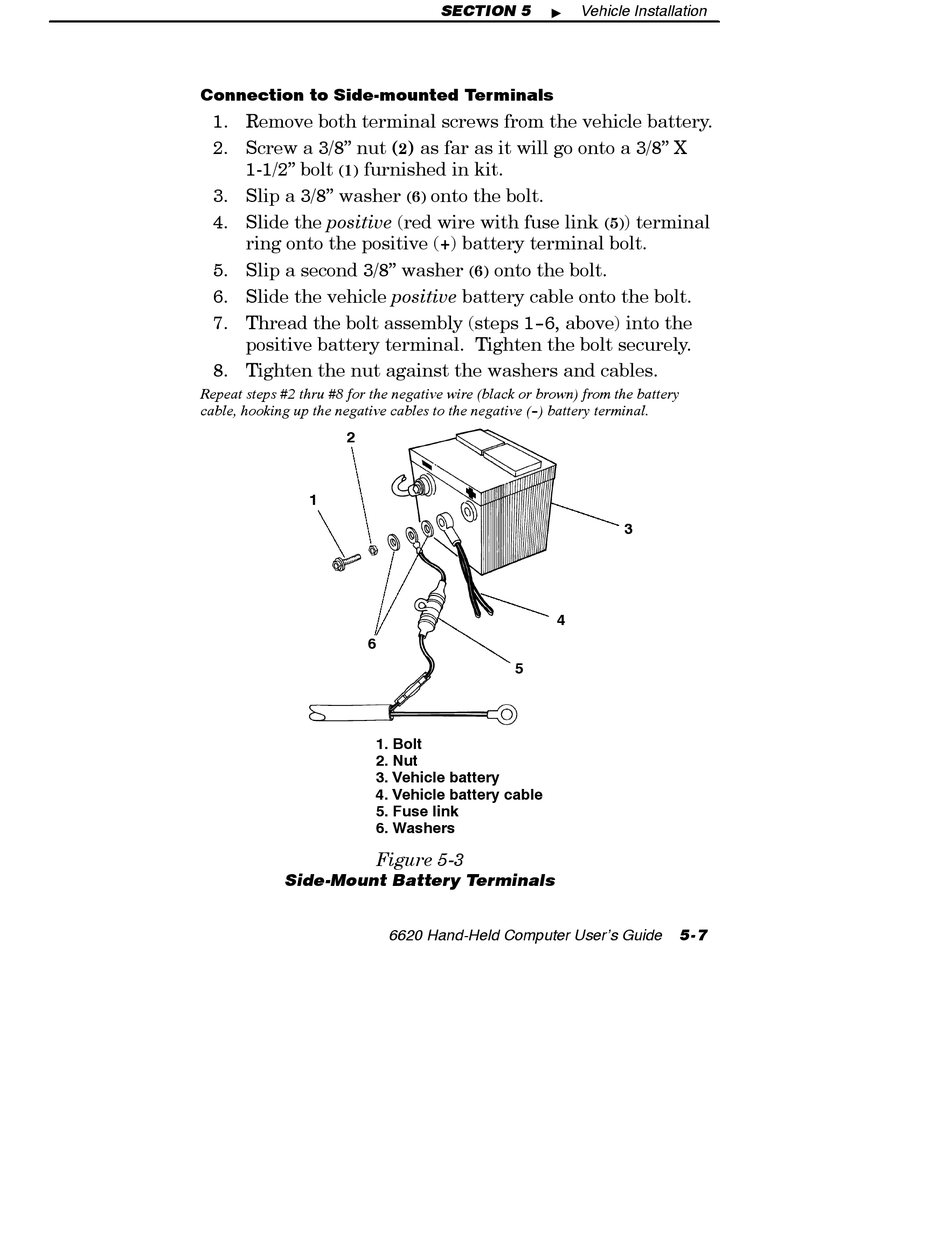

Figure 5-3
Side-Mount Battery Terminals
SECTION 5
"
) as far as it will go onto a 3/8" X
2
onto the bolt.
(6)
onto the bolt.
(6)
4
5
6620 Hand-Held Computer User's Guide
Vehicle Installation
) terminal
(5)
3
5- 7
