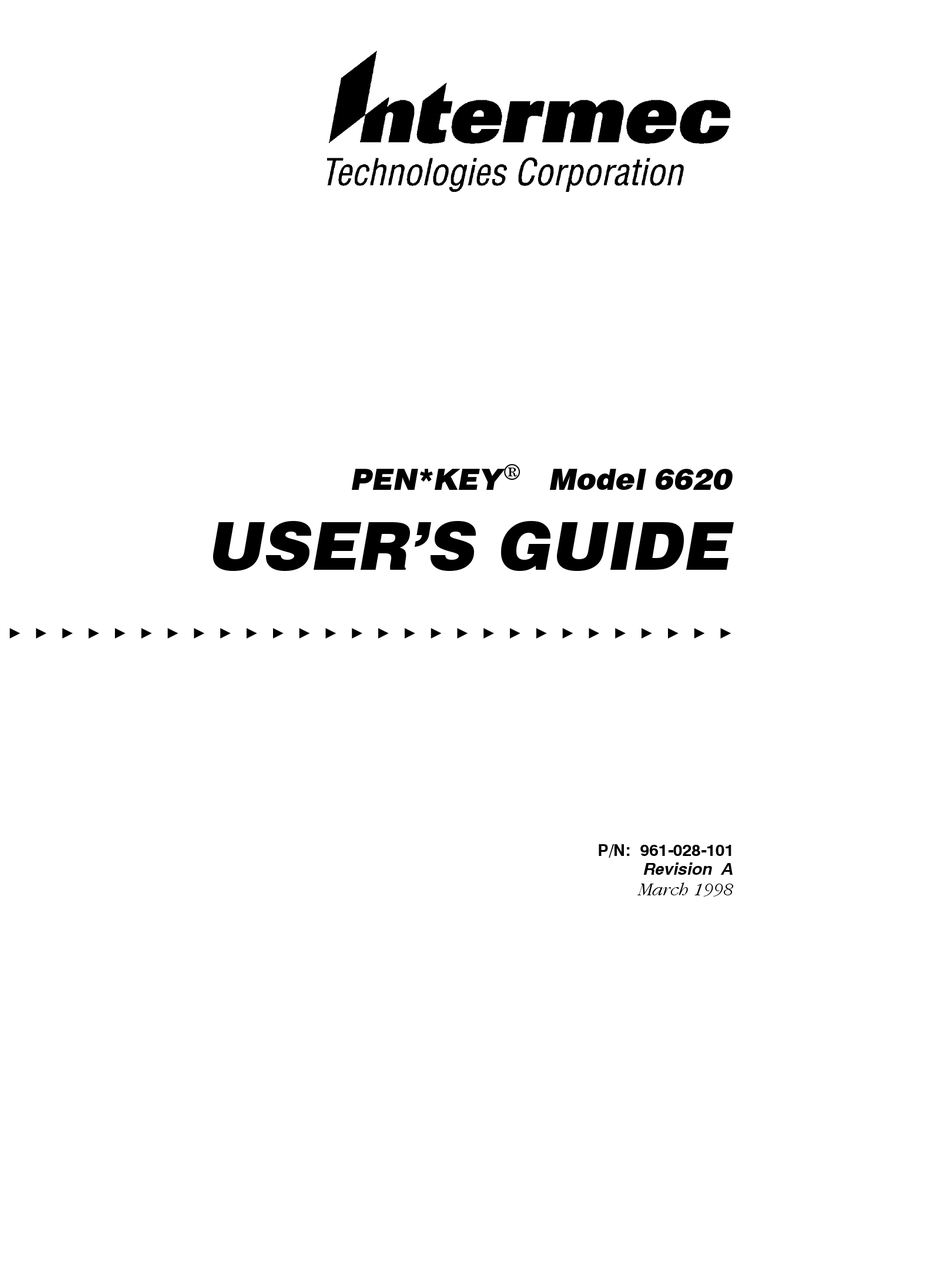

PEN*KEY
Model 6620
USER'S GUIDE
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
P/N: 961-028-101
Revision A
March 1998

Advertisement

Table of Contents
loading

Related Manuals for Intermec PEN*KEY 6620

Summary of Contents for Intermec PEN*KEY 6620

  • Page 1  PEN*KEY Model 6620 USER’S GUIDE " " " " " " " " " " " " " " " " " " " " " " " " " " " " P/N: 961-028-101 Revision A March 1998...
  • Page 2 Norand Corporation, and shall be returned to Intermec Technologies Corporation upon written request. If a purchase, license, or nondis- closure agreement has been executed, the terms of that agreement shall govern this document.

  • Page 3: Table Of Contents

    ........6620 Hand-Held Computer User’s Guide CONTENTS .
  • Page 4 Neck or Shoulder Strap Opening or Closing the Strap 6620 Hand-Held Computer User’s Guide ......
  • Page 5 ........6620 Hand-Held Computer User’s Guide CONTENTS "...
  • Page 6 Install Mount 6620 Hand-Held Computer User’s Guide ........
  • Page 7 ....... FIGURES Figure 1-1 The 6620 Computer Figure 1-2 Visible Connectors .
  • Page 8 Table 2-1 Dock Indicator LEDs Table 5-1 Parts List 6620 Hand-Held Computer User’s Guide ......... . .

  • Page 9: General Information

    " Section 5 " General Information " " " " " " " " " " General Information Options and Accessories Operation Maintenance Vehicle Installation 6620 Hand-Held Computer User’s Guide Section 1 " " " " " " " "...

  • Page 10: Summary Of Sections

    Tells how to put the unit into operation for the first time. Section 4, Maintenance This section contains care and maintenance instructions. Section 5, Vehicle Installation This section tells how to wire and install a vehicle mount. 6620 Hand-Held Computer User’s Guide...

  • Page 11: Computer Description

    AMD X5-133 MHz processor. With extensive memory op- tions and the Windows 95 operating system, the 6620 Com- puter is a powerful, full-function PC with all of the rugged- ness and portablility we design into every product.

  • Page 12: Software Compatibility

    Computer Description The following illustrations and text will familiarize you with the external features of the 6620 Computer. At the beginning of each work day, inspect the unit and make sure that the following components are secure: Battery compartment door "...

  • Page 13: Display

    The cursor controls can be shifted to let you adjust the dis- play brightness and contrast (monochrome display only) for best viewing. 6620 Hand-Held Computer User’s Guide General Information "...

  • Page 14: Pen (Input Device)

    Connectors There are six external connectors at various locations (see figures 1-1 and 1-3) on the Model 6620 Computer. An RJ-45 jack connects to an optional internal modem (jack is pres- ent, whether a modem is installed, or not). Other connectors...

  • Page 15: Serial Port

    This connector provides a reliable electrical interface be- tween the computer and a vehicle or fixed-mount docking station. Both two-way communication signals and power for operating and recharging the battery pack pass through this connector. 6620 Hand-Held Computer User’s Guide...

  • Page 16: Antenna Connector (Terminal-To-Dock)

    " Antenna connector (terminal-to-dock) This connector mates with a connector in the dock for use with an external, remotely-located radio antenna. 6620 Hand-Held Computer User’s Guide 1. DC power input jack 2. Keyboard connector 3. Docking connector 4. Antenna connector (terminal-to-dock)

  • Page 17: Figure 1-3 Concealed Connectors

    SECTION 1 General Information " This may be incorrect! 1. 9-pin RS-232 male D-sub 2. On/Off switch 3. RJ-45 (lift flap to access phone jack) 4. PC Card access door Figure 1-3 Concealed Connectors 6620 Hand-Held Computer User’s Guide...

  • Page 18: Figure 1-4 Pc Card Access

    SECTION 1 General Information " 1. PC Card slots Figure 1-4 PC Card Access 1-10 6620 Hand-Held Computer User’s Guide...

  • Page 19: Status Indicators

    Figure 1-5 identifies each of these LEDs. Table 1-1 shows the meanings for each indicator. 1. Backup (“reserve”) battery 2. Main battery 3. External power 4. Internal hard drive Figure 1-5 Status Indicator LEDs 6620 Hand-Held Computer User’s Guide General Information " 1-11...
  • Page 20 SECTION 1 General Information " Indicator (LED) Backup Battery Main Battery External Power 1-12 6620 Hand-Held Computer User’s Guide Table 1-1 Status Indicators Condition Meaning unit in Suspend mode GREEN b/u battery charged; running, or external power b/u battery charging; run-...

  • Page 21: Controls

    (standby) condition. This will conserve battery power dur- ing predictable periods of inactivity. Push the Suspend or Resume switch once to suspend operation; press it again to resume operation. 6620 Hand-Held Computer User’s Guide 1-13...

  • Page 22: Figure 1-6 Controls

    SECTION 1 General Information " 1. Scanner activate switch 2. Right mouse switch 3. Righthand keyboard overlay 4. Lefthand keyboard overlay 1-14 6620 Hand-Held Computer User’s Guide Pen “tap” equals Left Mouse Button Figure 1-6 Controls...

  • Page 23: Compartment Doors

    Turn the latch knobs 1/4-turn counterclockwise to open doors. SECTION 1 " 1. PC card compartment door 2. Latch knob 3. Unlock icon 4. Battery compartment door 5. Latch knob Figure 1-7 Compartment Doors 6620 Hand-Held Computer User’s Guide General Information 1-15...

  • Page 24: Specifications

    PC Card options Display Type Touch panel Backlight Features 1-16 6620 Hand-Held Computer User’s Guide 10.1” x 8.5” x 2.1” (L, W, H) 63 oz. (with battery and without options) ° ° - -4 to +122 F (- -20 to +50 (note: options/peripherals may restrict upper limits) °...

  • Page 25: Options And Accessories

    " " " General Information Options that can be ordered for the 6620 Computer include DRAM and Flash RAM upgrades, an integrated scanner, an internal modem, a 2.5-inch hard drive, and various built-in wireless (radio or cellular) communication devices. Accessories are items or devices that, when added to the computer, make it more convenient to use or that extend its functionality.

  • Page 26: Options

    (external) CCD, wand, and laser scanners. Internal Modem The 6620 Computer can be ordered with a modem built into the unit, with the RJ-45 connector providing external con- nection to your telephone line. Computers not ordered with an internal modem can have this option installed (by autho- rized Service Centers) in the future.

  • Page 27: Accessories

    Cigarette Lighter Adapter The cigarette lighter adapter cable provides a quick and convenient way to power the 6620 Computer from a vehicle electrical system. The DC power plug goes directly into the power jack on the bottom of the computer. A light-emitting diode (LED) power indicator (item #2, below) is on when ve- hicle power is available to the computer.

  • Page 28: Ac Power Adapter

    These accessories, available in single- pack and four-pack versions, are useful for charging spare battery packs. 2- 4 6620 Hand-Held Computer User’s Guide Figure 2-2 AC Power Adapter...

  • Page 29: Docks

    A standard electri- cal outlet provides power, via either a U.S. or an interna- tional power cord, directly to the single dock. The 6620 Computer then receives both charging and operating power when inserted in the single dock. The single dock can be connected to a network, and it can have various accessories or peripheral devices connected to it.

  • Page 30: Multidock

    Each multidock is designed to hold up to four com- puters, providing charging power to each computer and an Ethernet communication interface between the 6620 Com- puters and a host computer. This ensures that batteries are charged regularly and allows for unattended up and down- loading of data.

  • Page 31: Docking The Computer

    An opening in the back of the dock allows you to insert a screwdriver to effect an emergency manual release if this should become necessary. 2- 7 6620 Hand-Held Computer User’s Guide...

  • Page 32: Figure 2-3 Docking Detail

    SECTION 2 Options and Accessories " 1. Interlock button 2. Spring-loaded clamps 3. Slide channel 4. Docking wedge 5. Docking bracket 6. Clamping block Figure 2-3 Docking Detail 2- 8 6620 Hand-Held Computer User’s Guide...

  • Page 33: Insert Computer Into Dock

    2. Press the computer against the slide channel. 3. Move the lever downward until it locks. Figure 2-4 Insert Computer into Dock 6620 Hand-Held Computer User’s Guide Options and Accessories " Emergency Release (insert screwdriver to release)

  • Page 34: Dock Front Panel

    The computer will then complete communication trans- actions and close the application program before allowing the dock to release the computer. Green 2- 10 6620 Hand-Held Computer User’s Guide Table 1-1 Dock Indicator LEDs Amber Meaning No external power to the dock.

  • Page 35: Docked Computer

    2. Amber LED 3. Green LED 4. Infrared window (peripheral device must be within line-of-sight of this window) 5. Locking lever (shown locked) Figure 2-5 Docked Computer 6620 Hand-Held Computer User’s Guide SECTION 2 Options and Accessories " 2- 11...

  • Page 36: Accessory Cables

    These are listed in the price guide to assist your sales representative or system engineer in selecting the appropriate cables for your installation. Cables are also available to connect the 6620 Computer to peripheral devices such as a keyboard or a monitor. Tethered Pen A tethered pen is standard on the 6620 Computer.

  • Page 37: Adjustable Handstrap

    SECTION 2 Options and Accessories " Adjustable Handstrap Although the adjustable handstrap is standard on the 6620 Computer, it is described in this section because it also at- taches to the unit with a special snap. Relocating the Handstrap The adjustable handstrap is fastened along one side of the computer with a snap on one end and a metal reinforcement and screw on the other end of the strap.

  • Page 38: Figure 2-7 Adjustable Handstrap

    SECTION 2 Options and Accessories " Reads “Pull the dot” 2- 14 6620 Hand-Held Computer User’s Guide 1. Dot 2. Snap 3. Screw Figure 2-7 Adjustable Handstrap...

  • Page 39: Adjusting The Handstrap

    Secure by pressing the adjusting tab into the handstrap as shown below (figure b). Longer Shorter 1. Metal piece 2. Adjusting tab 3. Snap Figure 2-8 Adjusting the Handstrap 6620 Hand-Held Computer User’s Guide Options and Accessories " Secure 2- 15...

  • Page 40: Closing The Handstrap

    Fold the remaining flap (figure d) as shown and squeeze firmly to close the handstrap. Fold first 2- 16 6620 Hand-Held Computer User’s Guide Fold last Figure 2-9 Closing the Handstrap...

  • Page 41: Neck Or Shoulder Strap

    1. Adjustment slides 2. Keyed snaps (male side visible) 3. End of strap (pull here to release) Figure 2-10 Neck or Shoulder Strap 6620 Hand-Held Computer User’s Guide Options and Accessories " 2- 17...
  • Page 42 SECTION 2 Options and Accessories " 2- 18 6620 Hand-Held Computer User’s Guide...

  • Page 43: Operation

    Use ONLY your finger or the stylus provided to make entries. " " " " " " " " " " 6620 Hand-Held Computer is shipped with 6620 Hand-Held Computer User’s Guide Section 3 Operation " " " " " " "...

  • Page 44: Pc Cards

    Each slot has a card ejector located on the side of the PC Card slot assembly. Place the computer in Suspend, then press in on the ejector to release and partially eject the associated card. Grasp it with your fingers for removal. 3- 2 6620 Hand-Held Computer User’s Guide...

  • Page 45: Figure 3-1 Pc Card Compartment Door

    1. Card ejector (lower slot 2. PCMCIA cards (type II) 3. Compartment door 4. PC Card slots SECTION 3 1. Latch knob (shown locked) Figure 3-1 Slot 1 Slot 0 Figure 3-2 PC Card Slots 6620 Hand-Held Computer User’s Guide Operation " 3- 3...

  • Page 46: Memory

    " Memory General Information An access panel on the bottom of the 6620 Computer allows you to upgrade memory without having to completely disas- semble the computer. These procedures require that you have the proper equipment, that you observe all precau- tions, and that you adhere strictly to the procedures.

  • Page 47: Hand Tools

    Make sure that you are properly grounded before re- " moving the access panel. 1. Memory compartment access panel 2. Ground the dock connector shell 3. Remove main battery pack Figure 3-3 Prepare Computer for Upgrades 6620 Hand-Held Computer User’s Guide SECTION 3 Operation " 3- 5...

  • Page 48: Memory Installation Procedures

    1 Megohm resistor to ground. 3. Attach a grounding clip to the dock connector shell. RAM and FLASH Access 3- 6 6620 Hand-Held Computer User’s Guide 1. Access panel 2. Memory boards Figure 3-4...

  • Page 49: Figure 3-5 Remove Memory Boards

    (spacer) that separates the two boards. Grasp the foam pad and pull up to remove this board. 1. Screw 2. DRAM board 3. Hex Standoff 4. FLASH board Figure 3-5 Remove Memory Boards 6620 Hand-Held Computer User’s Guide SECTION 3 Operation " 3- 7...

  • Page 50: Installation And Reassembly

    3. Screw the hex standoff through the hole in the FLASH board and into the fixed standoff. 3- 8 6620 Hand-Held Computer User’s Guide 1. Hex standoff 2. FLASH board 3. Fixed standoff 4. Connector (for FLASH board)

  • Page 51: Figure 3-7 Reinstall Dram Board

    4. Remove the ground clip from the dock connector shell. 5. Reinstall the main battery pack. 6. Replace the battery compartment door and return the computer to normal service. 6620 Hand-Held Computer User’s Guide SECTION 3 Operation " 3- 9...

  • Page 52: Batteries

    1/4-turn clockwise to secure it. The door latch must be fully engaged or the computer will not operate. CAUTION: Close and Lock compartment doors before using computer. 3- 10 6620 Hand-Held Computer User’s Guide 1. Battery compartment door (shown unlatched) 2. Battery pack 3. Battery contacts 4.

  • Page 53: Charging

    Multidock PEN*KEY computer Battery Pack Charging Configurations SECTION 3 " Power Vehicle Vehicle Dock Battery Vehicle Battery Cigarette Lighter Adapter Single Dock Power Power Supply (“pack charger”) Power Figure 3-9 6620 Hand-Held Computer User’s Guide Operation 3- 11...

  • Page 54: On/Off Switch

    OFF, all data stored in DRAM will be lost. Pressing the Suspend/Resume switch also turns the unit ON (only) if the unit was previously turned OFF. 3- 12 6620 Hand-Held Computer User’s Guide 1. Suspend/Resume switch 2. Scanner lens (optional) 3. RJ45 connector 4.

  • Page 55: Input/Output

    “beep” from the computer. When scanning, be sure the aiming dot or beam is centered vertically and horizontally on the bar code you are scanning. SECTION 3 " 6620 Hand-Held Computer User’s Guide Operation 3- 13...

  • Page 56: Two-Way Communication

    This is not an Ethernet connection. Ethernet Connection Although all 6620 Computers have Ethernet capability, the connection is physically located on the single dock or on the multidock. Serial Communication...

  • Page 57: Computer Start Up

    Never use a sharp object to make entries on the display. 8. Setup requires a keyboard, after which you can make entries using your finger or the special stylus, a scan- ner, or an optional keyboard. SECTION 3 " 6620 Hand-Held Computer User’s Guide Operation 3- 15...

  • Page 58: Restarting The Computer

    Warm Restart If an external keyboard is connected to the 6620 Computer, you can easily perform a “warm” restart by pressing the Ctrl + Alt + Del keys. Data stored in RAM is usually pre- served when you perform a warm restart.

  • Page 59: Maintenance

    " " " " " " " " " " Model 6620 Hand-Held Computer. Although Model 6620 Hand-Held Computer contains 6620 Hand-Held Computer User’s Guide Section 4 Maintenance " " " " " "...

  • Page 60: Main Battery Pack

    Low battery warnings and battery capacity (“gas gauge”) information display to tell you when charging is required. NOTE: Shorting or over-discharging the battery pack used in the 6620 Com- puter will result in loss of calibration of the internal gas gauge. Gas Gauge Recalibration The battery pack gas gauge requires one or more “calibra-...

  • Page 61: Battery Capacity

    LED lights, the battery charge is 25 percent or less. Press TEST Button view capacity 0 - - 25% 1. TEST button (switch) 2. Capacity indicators (LEDs) Figure 4-1 Battery Pack Capacity Check 6620 Hand-Held Computer User’s Guide " >75% >50% >25% 4- 3...

  • Page 62: Backup Battery

    Never apply any liquid cleaner directly on the display or the computer case. Instead, dampen a soft, lint-free cloth with the cleaner and wipe exterior surfaces with this cloth. Keep the display clean to ensure good viewing and touch-screen response. 4- 4 6620 Hand-Held Computer User’s Guide...

  • Page 63: Factory Service

    Contact the service center to obtain an RMA number " Package in the original shipping carton if possible. " Fill out a Product Service Information Card and in- " clude this card with the product. " 6620 Hand-Held Computer User’s Guide 4- 5...
  • Page 64 SECTION 4 Maintenance " 4- 6 6620 Hand-Held Computer User’s Guide...

  • Page 65: Vehicle Installation

    Vehicle Installation " " " " " " " " " " 6620 Hand-Held Computer User’s Guide Section 5 " " " " " " " " 5- 1...

  • Page 66: Tools Required

    -001/-002 adjustable clamp -001/-002 self-tap screw #6 X 5/8” -001/-002 3/8” terminal ring -001/-002 self-tap screw #8 X 5/8” -001/-002 #8 flat washer -001/-002 snap-in bushing 5- 2 6620 Hand-Held Computer User’s Guide Table 1-1 Parts List 206-953-009 216-964-009 216-657-001 800-099-001...

  • Page 67: Introduction To Vehicle Installation

    Route and install the battery cable. " Mechanically install the mount (provided by others). " Connect short cable(s). " Decide where you will mount the vehicle dock, then proceed with the following instructions. SECTION 5 Vehicle Installation " 6620 Hand-Held Computer User’s Guide 5- 3...

  • Page 68: Power Cable Routing

    Make sure that cable routing does not invite damage " to the cable. Secure the battery cable at least every 18 inches " throughout the cable run: use adjustable clamps (pro- vided) or wire-tie to existing vehicle cable runs. 5- 4 6620 Hand-Held Computer User’s Guide...

  • Page 69: Battery Cable Connections

    Gray Battery Cable SECTION 5 Strip each wire end Red Wire Black (or Brown) Wire Strip the Cable Jacket 12- -14 inches Figure 5-1 Strip the Battery Cable 6620 Hand-Held Computer User’s Guide Vehicle Installation " 1/4 inch → ← 5- 5...

  • Page 70: Prepare The Cable Ends

    6. Securely crimp the fuse link splice wire. Black (or Brown) Wire Red Wire Prepare Cable Ends 5- 6 6620 Hand-Held Computer User’s Guide onto the black wire. : it attaches to the red wire. onto the red D Strip wire D Install terminal ring...

  • Page 71: Connection To Side-Mounted Terminals

    (- -) battery terminal. 1. Bolt 2. Nut 3. Vehicle battery 4. Vehicle battery cable 5. Fuse link 6. Washers Figure 5-3 Side-Mount Battery Terminals 6620 Hand-Held Computer User’s Guide Vehicle Installation " ) terminal onto the bolt. 5- 7...

  • Page 72: Connection To Top-Mounted Terminals

    Repeat steps #3 thru #6 for the negative wire (black or brown) from the Norand battery cable, connecting the wire to the negative (- -) battery computer. Top-Mount Battery Terminals 5- 8 6620 Hand-Held Computer User’s Guide 1-1/2” bolts from the installation kit. Tighten the nuts. onto the end of each bolt.

  • Page 73: Secure The Power Cable

    3. Scrape a small circle of paint from around the hole. 4. Use a #8 X 5/8” screw and flat washer to secure the ground wire or strap. 6620 Hand-Held Computer User’s Guide Vehicle Installation " #8 x 5/8 Screw (w/washer)

  • Page 74: Mechanical Installation

    (you can remove the mount base plate if necessary). 2. Drill holes in the vehicle sheet metal. 3. Install the base plate in the vehicle, using nuts, bolts, and lockwashers. 4. Permanently attach dock/mount to the base plate. 5- 10 6620 Hand-Held Computer User’s Guide...

  • Page 75: Figure 5-6 Adjustable Mount

    1. Dock mounting surface 2. Base plate 3. Swivel adjustment nuts 4. Tilt adjust Figure 5-6 Adjustable Mount SECTION 5 Vehicle Installation " 6620 Hand-Held Computer User’s Guide 5- 11...

  • Page 76: Final Connections

    Connections Your dock affords more connectivity than the 6620 Comput- er offers on its own. For instance, each 6620 Computer has Ethernet capability built-in, however the hardwire connec- tion for Ethernet is made at the dock and not directly to the computer.

  • Page 77: Ethernet Connection

    VGA Connector Provides RGB, horizontal and vertical synch signals to a remote VGA monitor. This connector is not present on the vehicle dock. 5- 13 6620 Hand-Held Computer User’s Guide...

  • Page 78: Figure 5-7 Composite Of All Dock Connectors

    SECTION 5 Vehicle Installation " COM2 6-pin DC Out (radio antenna) DC In Mouse Parallel Port COM1 Figure 5-7 Composite of ALL Dock Connectors 5- 14 6620 Hand-Held Computer User’s Guide...
  • Page 79 Cleaning instructions, 4-4 case, 4-4 display, 4-4 MICRO-CLEAN II, 4-5 Cold boot. See cold-start Cold-start, 3-15 on/off switch, 3-16 Computer descriptions 6620 Computer, 1-5 battery compartment, 1-15 6620 Hand-Held Computer User’s Guide INDEX " " " " " " " "...
  • Page 80 Integrated scanners, 2-2 use of, 3-13 External power LED icon, 1-11 Internal hard drive LED meaning, 1-12 icon, 1-11 Index-2 6620 Hand-Held Computer User’s Guide meaning, 1-11 Internal modem, 2-2 Introduction, 1-1 IrDA peripheral device communications serial port, 1-16 docks, 2-10...
  • Page 81 5-2 power connector, 5-12 Vehicle electrical system cigarette lighter adapter, 2-3 installation, 5-1 Vehicle installation, 5-3 electrical, 5-4 final connections, 5-12 mechanical, 5-10 power cable routing, 5-4 VGA connector, 5-13, 5-14 6620 Hand-Held Computer User’s Guide INDEX Index-3...

  • Page 82: 6620 Hand-Held Computer User's Guide

    INDEX Warm boot. See warm-start Warm-start, 3-16 Windows 95, 1-3, 3-16 “Y” power cable, 5-4 Index-4 6620 Hand-Held Computer User’s Guide...
