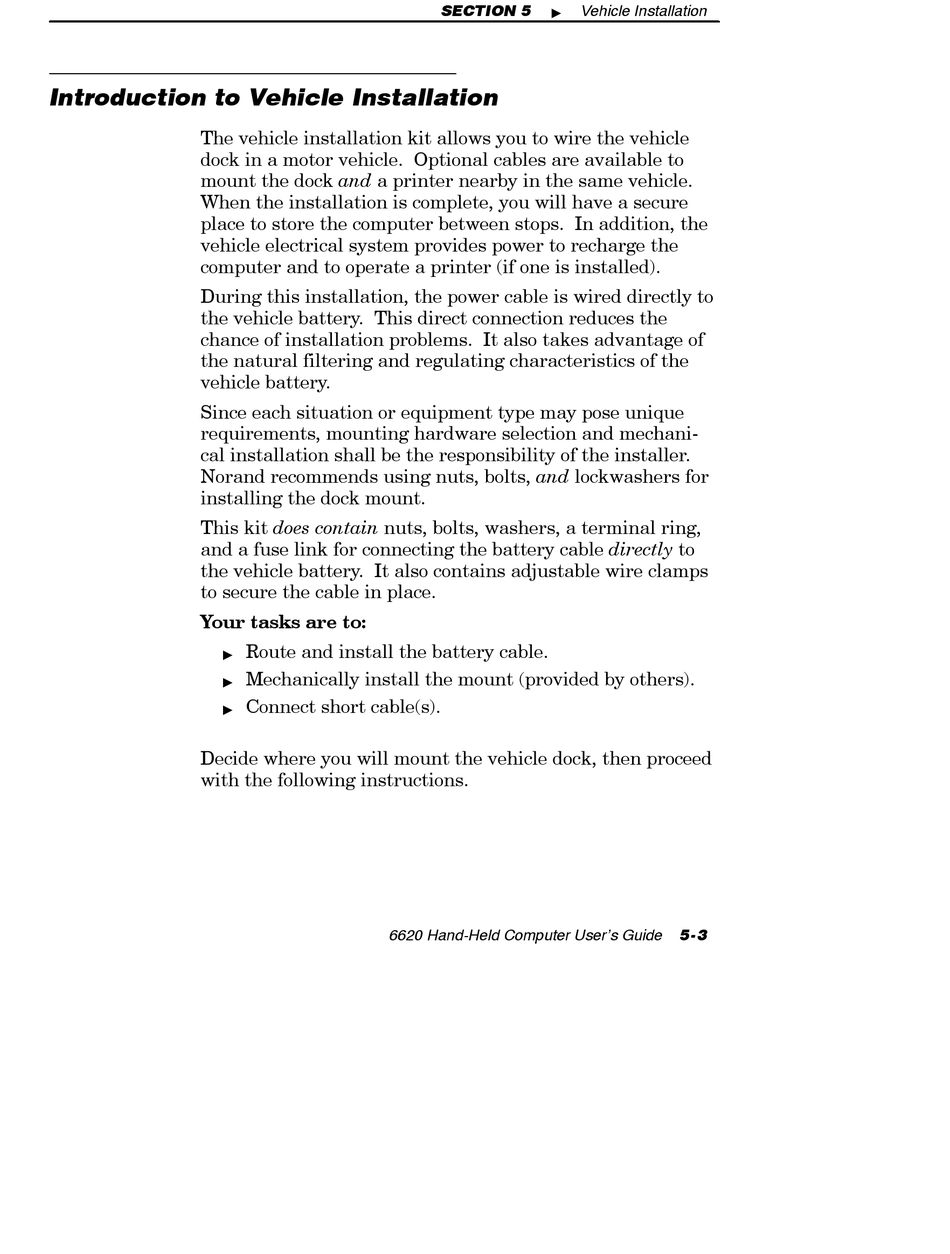

Introduction to Vehicle Installation

The vehicle installation kit allows you to wire the vehicle
dock in a motor vehicle. Optional cables are available to
mount the dock and a printer nearby in the same vehicle.
When the installation is complete, you will have a secure
place to store the computer between stops. In addition, the
vehicle electrical system provides power to recharge the
computer and to operate a printer (if one is installed).
During this installation, the power cable is wired directly to
the vehicle battery. This direct connection reduces the
chance of installation problems. It also takes advantage of
the natural filtering and regulating characteristics of the
vehicle battery.
Since each situation or equipment type may pose unique
requirements, mounting hardware selection and mechani-
cal installation shall be the responsibility of the installer.
Norand recommends using nuts, bolts, and lockwashers for
installing the dock mount.
This kit does contain nuts, bolts, washers, a terminal ring,
and a fuse link for connecting the battery cable directly to
the vehicle battery. It also contains adjustable wire clamps
to secure the cable in place.
Your tasks are to:
"
"
"
Decide where you will mount the vehicle dock, then proceed
with the following instructions.
Route and install the battery cable.
Mechanically install the mount (provided by others).
Connect short cable(s).
