SECTION 5

Vehicle Installation

Prepare the Cable Ends

1. Strip the black wire.

2. Crimp the 3/8" terminal ring

3. Locate the fuse link

4. Shorten the red wire if desired.

5. Then, strip 1/4" of insulation from the red wire.

6. Securely crimp the fuse link splice

Black (or Brown) Wire

Red Wire

5- 6

6620 Hand-Held Computer User's Guide

(2)

wire.

Crimp

Here

1. 3/8" terminal ring

2. Fuse link assembly

3. Fuse link splice

4. Battery cable

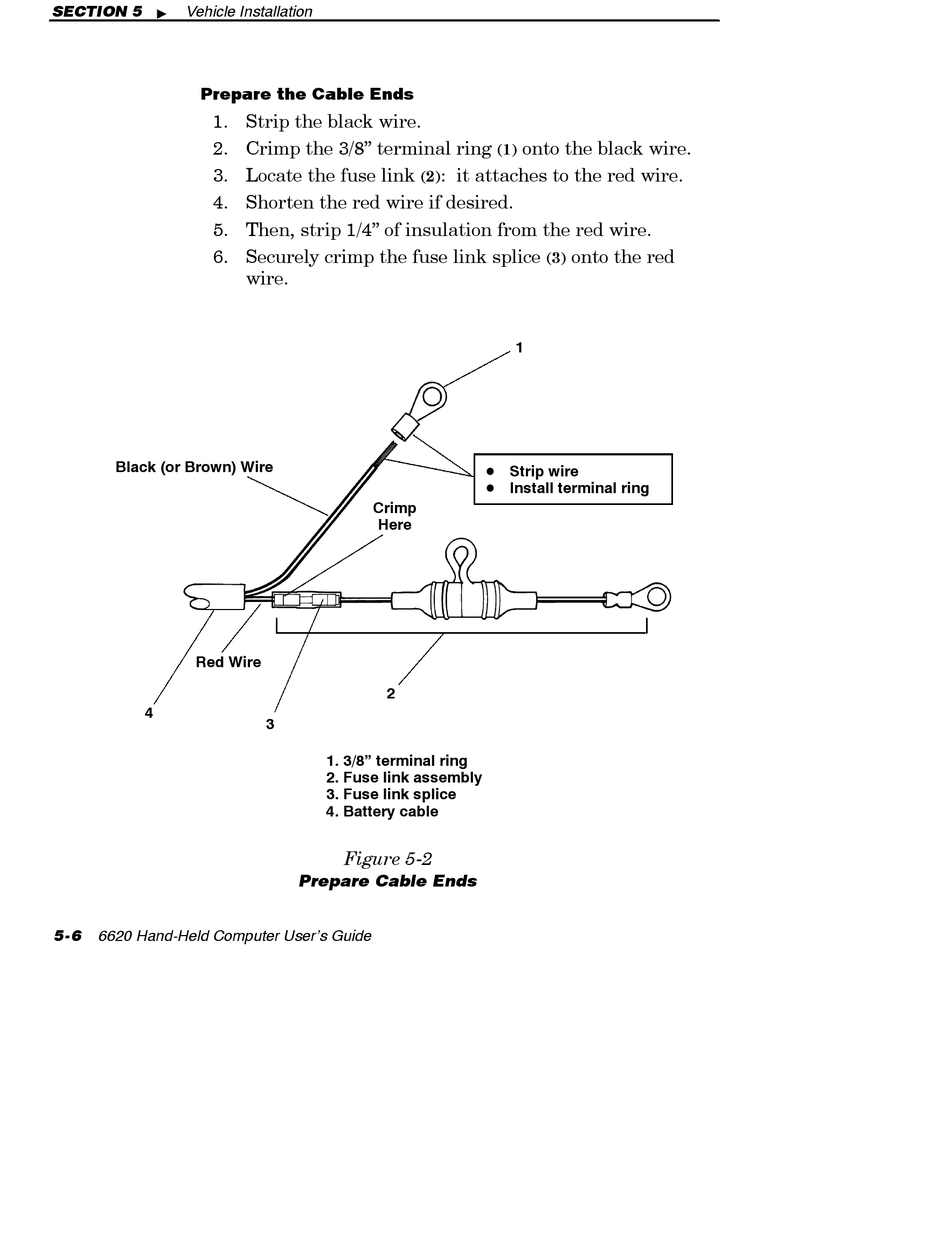

Figure 5-2

Prepare Cable Ends

onto the black wire.

(1)

: it attaches to the red wire.

onto the red

(3)

D Strip wire

D Install terminal ring
