INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 384436

SYNOPSIS / PROBLEM:

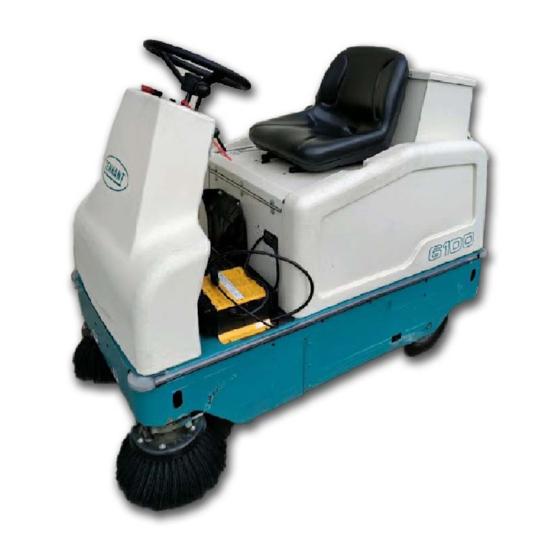

This kit contains the parts needed to install a right hand side brush kit on the model 6100
sweeper.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 2 hours)

PREPARATION:

(Refer to FIG. 1, 2 and 3)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
1. Disconnect battery cables from machine.
WARNING: Always disconnect battery cables from machine before working
on electrical components.
2. Remove all hardware mounting the front shroud to the control panel and the machine.
Carefully separate the front shroud from the control panel. Set the front shroud and all
mounting hardware aside.
3. Lift the machine with a hoist or jacks. Block machine properly with jack stands or check that
hoist is properly locked into position.
FOR SAFETY: When servicing machine, block machine tires before jacking up machine.
FOR SAFETY: When servicing machine, jack up machine at designated locations only.
Block machine up with jack stands.

SIDE BRUSH MOTOR GROUP INSTALLATION:

(Refer to FIG. 1, 2 and 3)
1. Mount the electric motor (1) to the side brush bracket (10) with four hex screws (2) and
washers (3).
(Refer to FIG. 1)
2. Mount the right hand side brush guard (15) over the side brush bracket (10) with five hex
screws (2), washers (3) and lock nuts (18).
3. Press the two flange bearings (6), into the rear end of the side brush mounting channel (5).
(Refer to FIG. 1)
IB 340345 (12- -02)
(Refer to FIG. 1)
No. 340345
Machine: 6100
Published: 12- -02
Rev. 01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6100 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 6100

Summary of Contents for Tennant 6100

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 384436 SYNOPSIS / PROBLEM: This kit contains the parts needed to install a right hand side brush kit on the model 6100 sweeper. Please follow step-by-step instructions.
  • Page 2 4. Connect the front end of the side brush mounting channel (5) and the right hand lift cable (21) to the bracket and motor sub--assembly with the hex screw (7), die spring (11) and lock nut (9). (Refer to FIG. 1 and 3) NOTE: Check that the lift cable (21) is mounted on the left (nut) side of the mounting channel (5) and the die spring (11) is on the right side of the bracket (10) when mounted in the channel (5)
  • Page 3 10. Lower the side brush with the side brush handle. Adjust the side brush height by loosening and sliding the middle pulley up or down the side brush support. Tighten the pulley when the side brush is in the preferred operating position. 11.
  • Page 4 FIG. 2 - - FRONT SHROUD REMOVAL IB 340345 (12- -02)
  • Page 5 Mount cable with existing hardware Side brush support FIG. 3 - - SIDE BRUSH LIFT GROUP INSTALLATION IB 340345 (12- -02)
  • Page 6 Screw, Hex, M08--1.25 X 30, 8.8 08709 Nut, Hex, Lock, M08--1.25,Nl 06967 Scr Hex M12X1.75 20 32493 Washer, Flat, .50 Hard 81955 Plate, Sidebrush Lift 26395--1 Clamp, Cable, 0.56D 361339 Screw, Hex TENNANT COMPANY P. O. Box 1452 Minneapolis, MN 55440-1452 IB 340345 (12- -02)
