INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit numbers 384123 and 384125.

SYNOPSIS / PROBLEM:

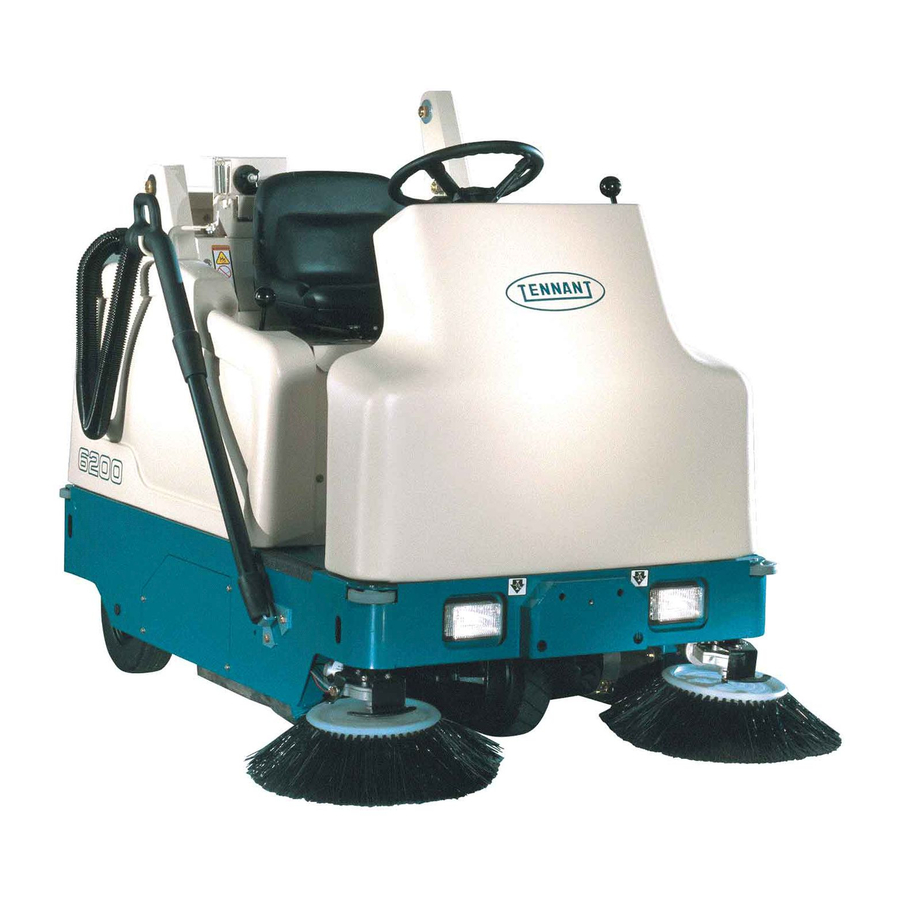

This kit contains the parts needed to install overhead guard light kits on the model 6200
sweeper.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)

PREPARATION:

(Refer to FIG. 1, 2 and 3)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
1. Disconnect battery cables from machine.
2. Locate the circuit breaker panel below the operator' s controls in the front of the machine.
WARNING: Always disconnect battery cables from machine before working
on electrical components.

INSTALLATION:

(Refer to FIG. 1, 2 and 3)
NOTE: If your machine is already equipped with the operating headlight / tailight package,
procede to step number 5. Keep switch 360520 and circuit breaker 383722 as spare
parts.
1. Open the circuit breaker panel.
2. Install the new circuit breaker (17) in the panel. Wire the circuit breaker (17) into the main
harness.
(Refer to FIG. 1, 2 and 3)
3. Remove the standard light switch in the control panel, and unplug it from the wiring
harness.
(Refer to FIG. 1, 2 and 3)
4. Plug the new switch (18) into the wiring harness, and snap it into place in the control panel.
(Refer to FIG. 1, 2 and 3)
5. Remove the self adhesive backing strips from the vinyl duct work, and install the three
pieces of vinyl duct work (13, 14 and 15) into the positions shown in figures 1 and 2.
(Refer to FIG. 1 and 2)
IB 340248 (9-99)
No. 340248
Machine: 6200
Published: 9-99/00
System: OPTIONS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6200 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 6200

Summary of Contents for Tennant 6200

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit numbers 384123 and 384125. SYNOPSIS / PROBLEM: This kit contains the parts needed to install overhead guard light kits on the model 6200 sweeper. Please follow step-by-step instructions.
  • Page 2 6. Check that the grommet (10) is secured in the light mounting plate (5). (Refer to FIG. 1 and 2) 7. Run the light wiring connections through the grommet in the mounting plate, and connect the light to the light harness (11). Connect the light harness (11) to the main wiring harness. (Refer to FIG.
  • Page 3 FIG. 1 - - FLASHING LIGHT KIT 384123 INSTALLATION IB 340248 (9-99)
  • Page 4 FIG. 2 - - REVOLVING LIGHT KIT 384125 INSTALLATION IB 340248 (9-99)
  • Page 5 FIG. 3 - - 6200 ELECTRICAL SCHEMATIC IB 340248 (9-99)
  • Page 6 Screw, Hex, M06- -1.0 X 16, 8.8 32483 Washer, flat, .25 SAE 07790 Nut, Hex, Flange, M06--1.0 10632--2 Grommet, Rubber 383942 Harness, Light, Revl, Ohg, 6200 49266 Tie, cable 1.75D Max 7.50Lg 384021 Duct, Vinyl, 11.0L 384020 Duct, Vinyl, 12.0L 384019 Duct, Vinyl, 31.0L...
  • Page 7 Screw, Hex, M06- -1.0 X 16, 8.8 32483 Washer, flat, .25 SAE 07790 Nut, Hex, Flange, M06- -1.0 10632--2 Grommet, Rubber 383942 Harness, Light, Revl, Ohg, 6200 49266 Tie, cable 1.75D Max 7.50Lg 384021 Duct, Vinyl, 11.0L 384020 Duct, Vinyl, 12.0L 384019 Duct, Vinyl, 31.0L...
