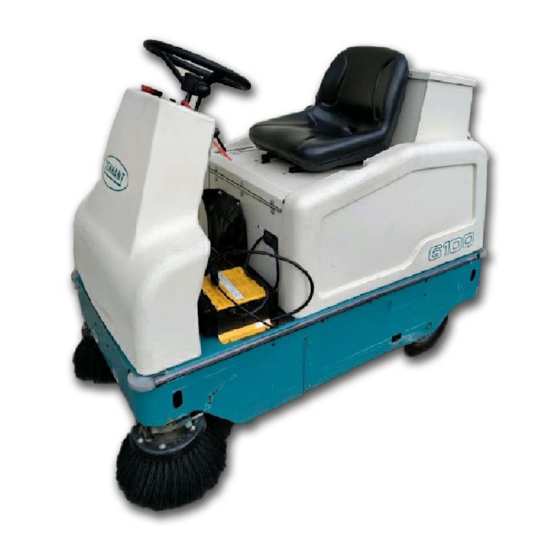

Tennant 6100 Instruction Bulletin
  1. Manuals
  2. Brands
  3. Tennant Manuals
  4. Floor Machine
  5. 6100
  6. Instruction bulletin

Tennant 6100 Instruction Bulletin

Sweeping
Hide thumbs Also See for 6100:
1
2
3
4
5
6

Advertisement

Table of Contents

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 384169

SYNOPSIS / PROBLEM:

This kit contains the parts needed to replace the damper solenoid on the model
sweeper/scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: 1/2" Rounded file
(Estimated time to complete: 1 hour)

PREPARATION:

(Refer to FIG. 1 thru 4)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
1. Raise the operator seat and secure in place with the seat support rod.
2. Disconnect battery cables from machine.
WARNING: Always disconnect battery cables from machine before working
on electrical components.

6100 INSTALLATION:

(Refer to FIG. 1 and 2)
1. Remove the hopper from the rear of the machine.
2. Unlatch and lower the filter to gain access to the damper solenoid.
3. Disconnect the solenoid from the main wire harness.
4. Locate the damper solenoid mounted on the side of the damper. Remove and discard the
pin retainers, both retaining pins and the connecting link.
5. Remove and discard the solenoid from the weldment on the side of the cylinder.
(Refer to FIG. 1)
IB 340480 (5-01)
No. 340480
Machine: 6100, 6200
Published: 5-01/00
System: SWEEPING
(Refer to FIG. 1)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant 6100

Summary of Contents for Tennant 6100

  • Page 1 No. 340480 Machine: 6100, 6200 INSTRUCTION BULLETIN Published: 5-01/00 System: SWEEPING NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts List in the appropriate place in your machine manual for future reference. Retaining the Parts List will make it easier to reorder individual parts and will save you the cost of ordering an entire kit.
  • Page 2 Remove and discard old both retaining pins from link. solenoid from weldment. FIG. 1 - - DAMPER SOLENOID REMOVAL, 6100 6. File down the flat edge of the D shaped solenoid mounting hole, until the mounting hole is round. 7. Mount the new solenoid (1) in the new round solenoid mounting hole.
  • Page 3 FIG. 2 - - SOLENOID DAMPER KIT, 6100 IB 340480 (5-01)
  • Page 4 6200 INSTALLATION: (Refer to FIG. 3 and 4) 1. Drive the machine onto a clean, flat work surface and set the machine parking brake. FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking brake. Then turn off machine and remove key. 2.
  • Page 5 21. Press and hold the bottom of the hopper switch until the hopper is in the fully lowered position. WARNING: Lift arm pinch point. Stay clear of hopper lift arms. 22. Check the damper for proper operation. TENNANT COMPANY P. O. Box 1452 Minneapolis, MN 55440-1452 IB 340480 (5-01)
  • Page 6 Bracket guard FIG. 4 - - SOLENOID DAMPER KIT, 6200 BILL OF MATERIALS FOR SOLENOID DAMPER KIT 384169 TENNANT Ref. Part No. Description Qty. 384464 Solenoid, 12VDC, Damper 384440 Link, 0.12T 0.7W 1.6L 2/0.14H 384410 Pin, pivot 384411 Retainer, shaft, 0.125 Dia...
