INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 384188

SYNOPSIS / PROBLEM:

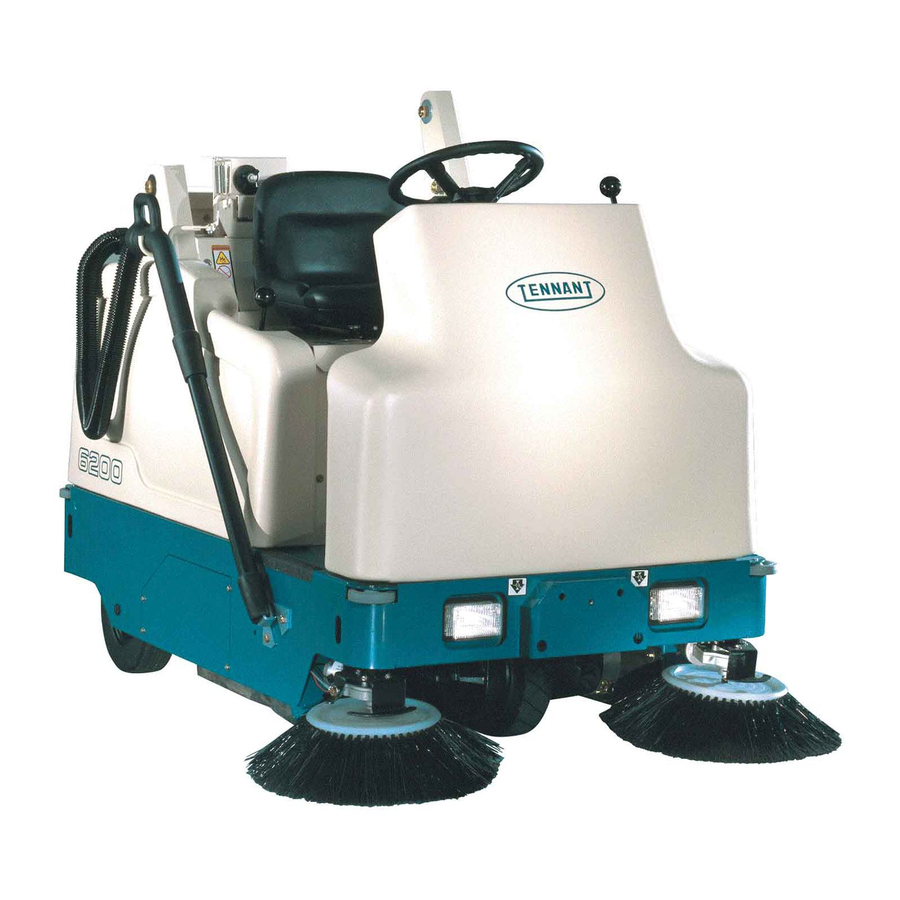

This kit contains the parts needed to install an overhead guard kit on the model 6200
sweeper.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: Hoist
(Estimated time to complete: 1 hour)

PREPARATION:

(Refer to FIG. 1)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.

INSTALLATION:

(Refer to FIG. 1)
1. Connect the two rear overhead guard legs (1) to the overhead guard (5) with hex
screws (6), washers (7), and lock nuts (8).
2. Carefully hoist the overhead guard above the machine.
3. Slowly lower the overhead guard down on top of the machine to be mounted.
4. Loosely mount the overhead guard side mounting locations to the machine with hex
screws (9), flat washers (4), and lock nuts (10).
5. Loosely mount the rear legs (1) to the machine with hex screws (3), flat washers (4), and
leg plates (2).
(Refer to FIG. 1)
6. Tighten all mounting hardware.
7. Remove hoist from the top of the overhead guard.
IB 340243 (6-99) LITHO IN U.S.A.
(Refer to FIG. 1)
(Refer to FIG. 1)
No. 340243
Machine: 6200
Published: 6-99/00
System: OPTIONS
