Signal connections for high-precision analog speed
control in Terminal mode
Suitable for version:
_AN
(If required, refer to the rating label on the right side of the Drive to find
the version code.)
Make these connections to allow the Drive to be controlled and
monitored locally by simple external controls and indicators.
Connections shown in grey are optional.
The RESET contact is required for version _SL, but is optional for
version _AN which can also be reset by use of the keypad.
Parameter Setting
1.14 {0.30} 1
Drive monitoring
Hardware enable
Speed reference (±10V)
SPEED
TORQUE
AT ZERO SPEED
RUN
RESET

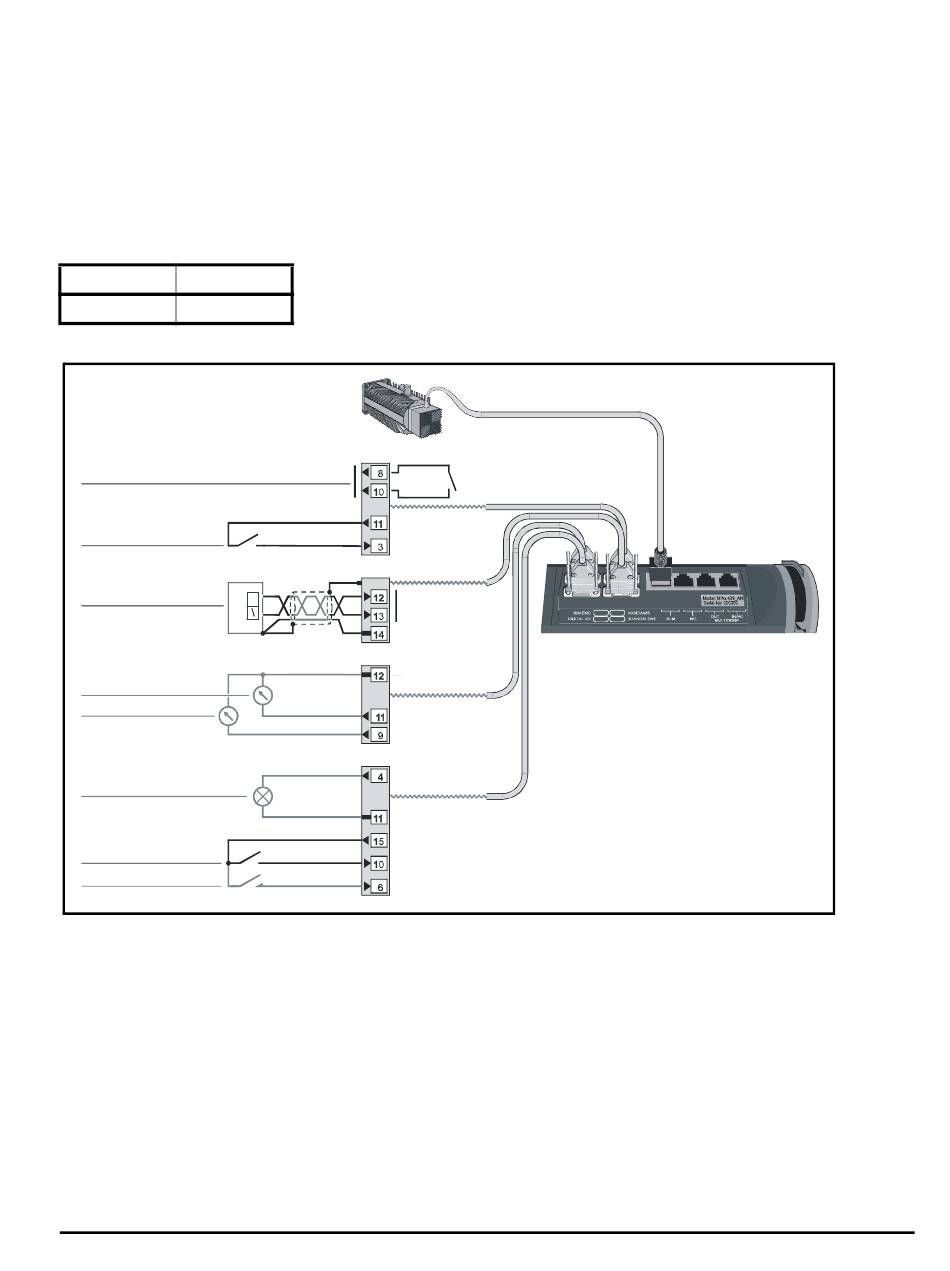

Figure 2-4 Signal connections for high-precision analog speed
control in Terminal mode
M'Ax User Guide
Issue Number: 4
MC/EIA485
Status
relay
24V user supply
Hardware enable
STANDALONE
High-precision
analog input
0V COMMON
SIM ENC
0V
Analog output 1
Analog output 2
DIGITAL I/O
Digital output 2
0V COMMON
24V user supply
Digital input 1
Digital input 6
*
