Explosion View - HOMCOM A91-181 Assembly & Instruction Manual

No. Description
1 Rear support tube
2 Front support tube
3 Adjustable support tube
4 Leg holder for fixing
5 Handle tube (Left)
6 Handle tube (Right)
7 Pipe (Leg fixation)
8 Front stand
9 Rear stand
10 Adapter plate
11 Padded cushion
12 Foam roller
13 Grip foam
14 Adjusting knob
15 Bolt
16 Stand cover

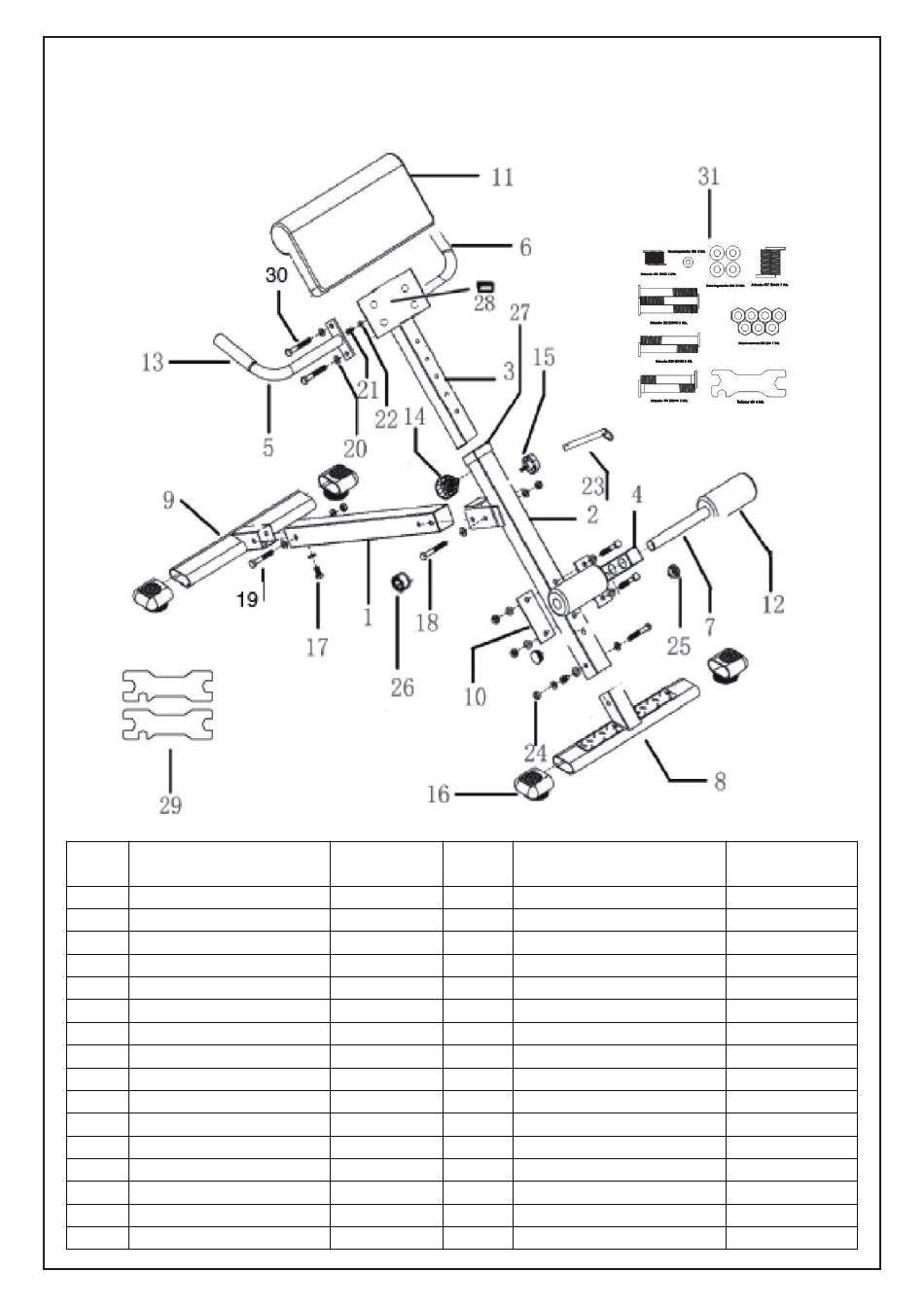

EXPLOSION VIEW

Qty. No.
1 17
1 18
1 19
1 20
1 21
1 22
1 23
1 24
1 25
1 26
1 27
2 28
2 29
1 30
1 31
4
10
Description
Screw M10*20
Screw M10*70
Screw M10*65
Washer
Screw M6 *15
Washer
Safety pin
Nut M10
Plastic cover
Screw cover
Plastic cover
Plastic cover
Tool
Screw M10 *60
Blister packing
Qty.
2
3
2
16
4
4
1
7
2
16
1
1
2
2
1
