Operating Instructions
TABLE OF CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Typical Application
Maintenance
Product Service
Warranty
SPECIFICATIONS
Operating Temperature Range 0 to +40℃ | 32 to 104℉
Operating Humidity Range 5 to 90%RH (No Condensation)
Data Transfer Speed 6.9 Mbps
1 x Cat5e/6 out
Connectors Transmitter 1 x Power DC
3 x Audio In (Analog | Optical | Coaxial)
1 x Cat5e/6 in
Connectors Receiver 1 x Power DC
3 x Audio Out (Analog | Optical | Coaxial)
PCM 2.0 | Dolby Digital EX | Dolby Digital 5.1
| Dolby Digital 2.0 Surround | Dolby Digital
Audio Format 2.0 | DTS-HD | DTS ES Discrete 6.1 | DTS
ES Matrix 6.1 | DTS Digital Surround 5.1 |
DTS 2.0
Power consumption 1.5 Watts (Max)
Dimension (L×W×H) 58.5 x 54.7 x 21 mm
Net Weight 182g (Pair)
Note: Specifications are subject to change without notice. Mass and dimensions
are approximate.
PACKING CONTENTS
1) J-Tech Digital JTECH-AET1000B Audio Extender Set
2) Operating Instructions
3) Power Adapter DC 12V 1A
2

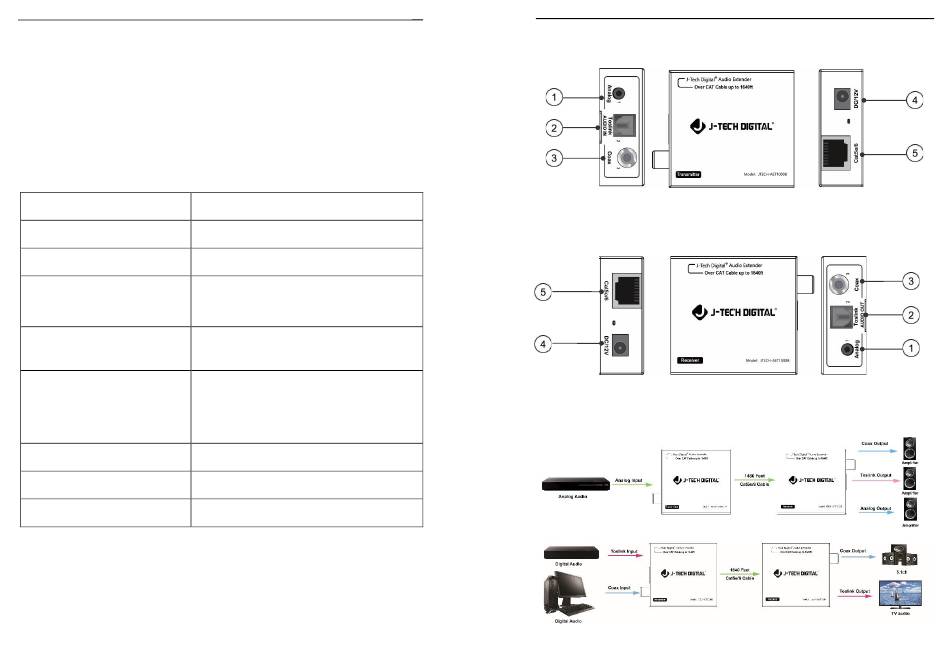

PANEL DESCRIPTIONS
Transmitter Panel
1) 3.5mm Analog Input Port
3) Coaxial Input Port
5) Cat5e/6 Output Port
Receiver Panel
1) Analog Output Port
3) Coaxial Output Port
5) Cat5e/6 Input Port
Connection Diagram
Application 1:
Application 2:
(Cannot transmit 2 audio signals simultaneously
Operating Instructions
2) Optical Toslink Input Port
4) DC 12V Power Port
2) Optical Toslink Output Port
4) DC 12V Power Port
)
3
