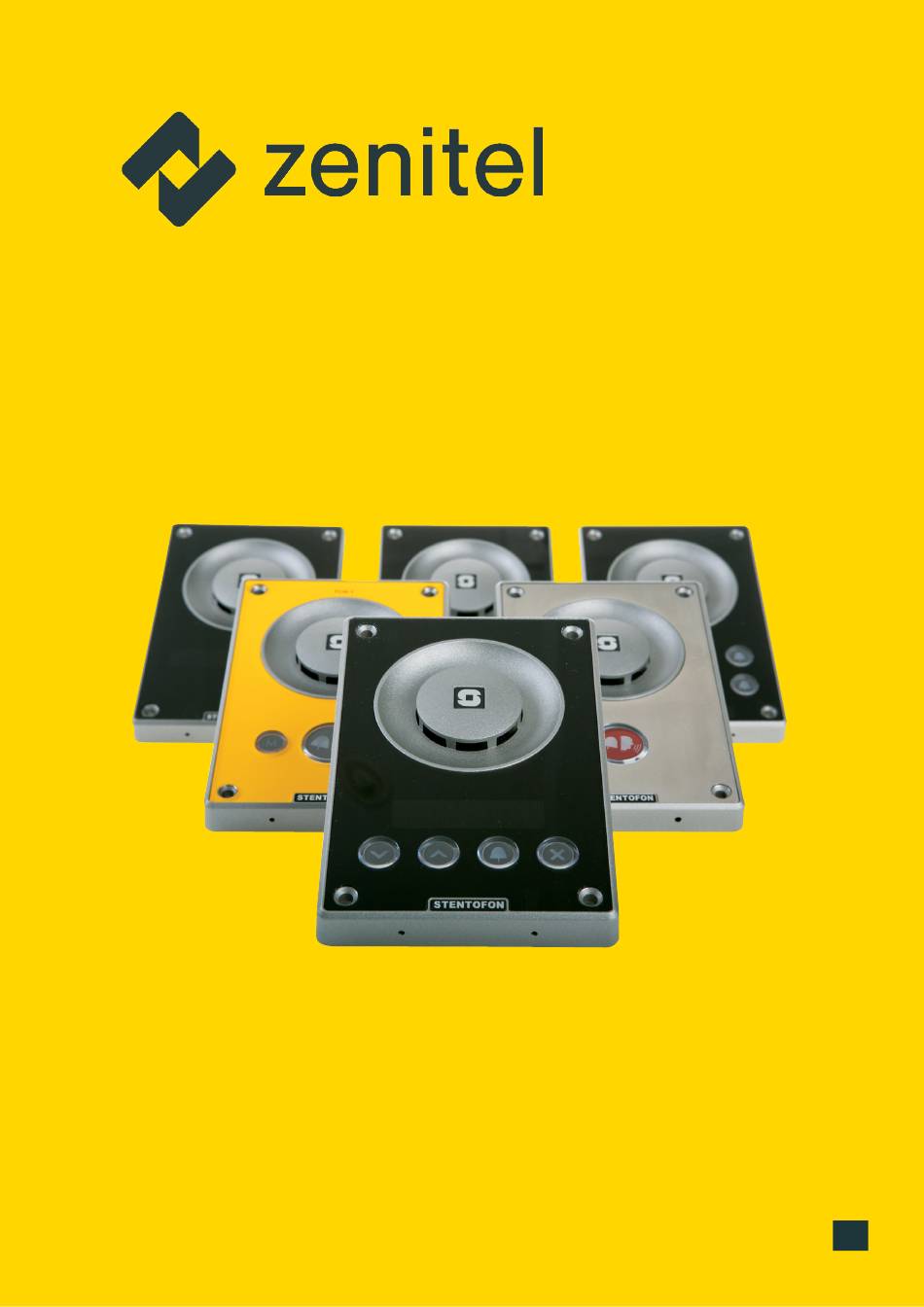

- Page 1 MOUNTING MANUAL Turbine Compact IP + TCIS-1+ TCIS-2+ TCIS-3+ TCIS-4+ TCIS-5+ TCIS-6+ A100K12158 zenitel.com...
-
Page 2: Turbine Compact Ip + Stations
Turbine Compact IP + Stations This document describes the dimensions, mounting procedure, and connections of the Turbine Compact IP Stations. Zenitel takes no responsibility for damages caused by improper or inadequate mounting. The Turbine Compact IP product range comprises the following stations & accessories:... - Page 3 On-Wall Surface Mounting Back Box - TA-1 The IP-66 rating is only valid when TA-1 Back Box is used. • Mounting holes are to be drilled as shown. Mounting Hole 25 mm • Max. recommended screw diameter: ISO M6 or ANSI 1/4”. •...
-
Page 4: Flush Mounting
Flush Mounting 2-Gang Double-Depth Back Box - TA-2 It is recommended to utilize back boxes with weep holes at the back. 89 mm 46 mm 25 mm 96 mm 23 mm SIDE Flush Mount Bracket - TA-5 The TA-5 Bracket or other customized solution is required for flush mounting. CUTOUT 4 mm 46 mm... - Page 5 Flush Mounting Procedure The gasket MUST be mounted to seal the station! Turbine Station Ensure the station is mounted vertically with the microphone facing down. Gasket Ensure there is enough clearance un- der the station so that the microphone Bracket is NOT smothered.
- Page 6 24.08.2022 Zenitel and its subsidiaries assume no responsibility for any errors that may appear in this publication, or for damages arising from the information therein. Zenitel products are developed and marketed by Zenitel. The company’s Quality Assurance System is certified to meet the requirements in NS-EN ISO 9001. Zenitel reserves the right to modify designs and alter specifications without notice. ZENITEL PROPRIETARY.
