Zenitel IP-CROR Mounting Instructions

Mounting & Demounting Instructions

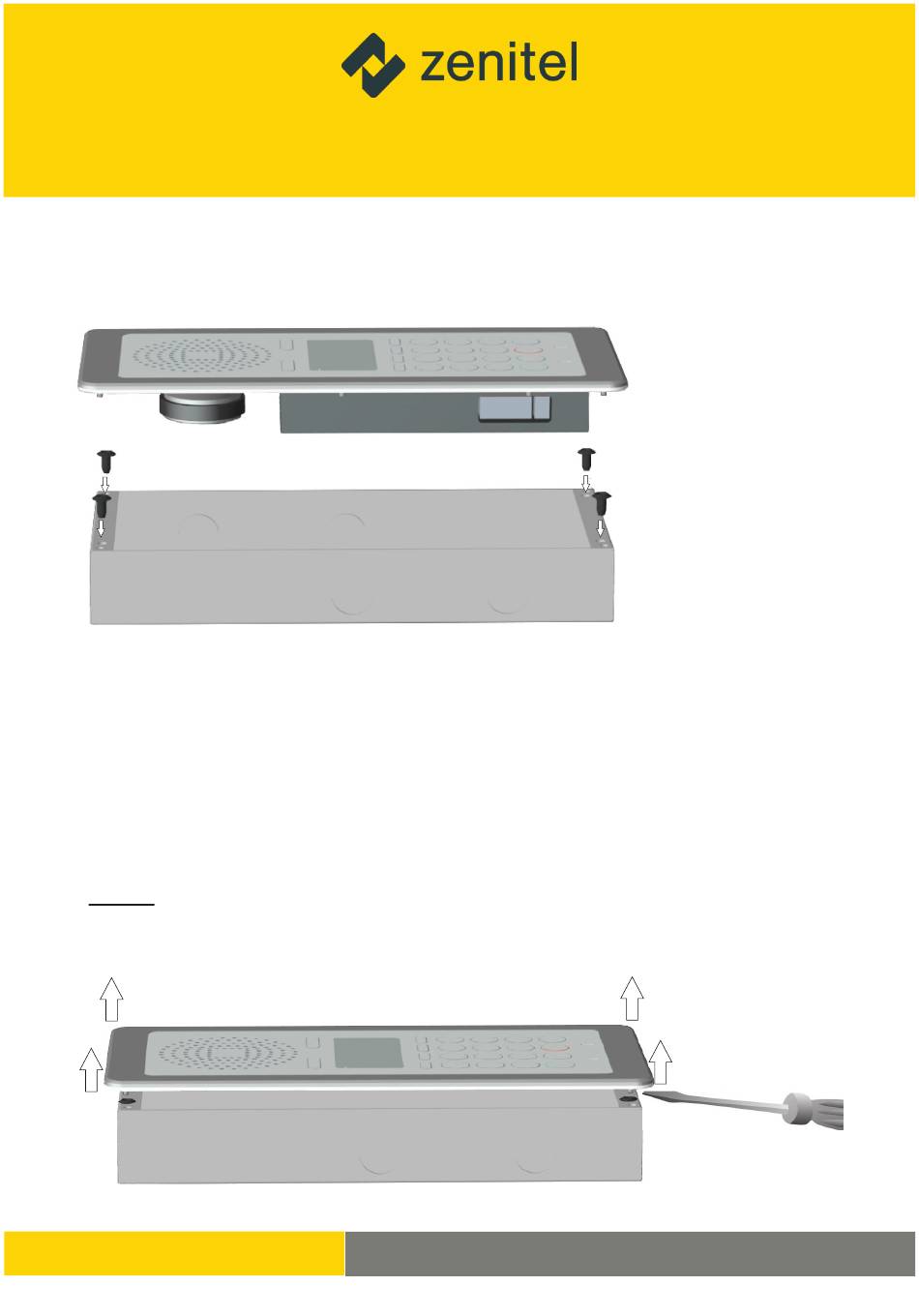

Mounting the Station
peg
retainer
retainer
Demounting the Station
Please follow the instructions precisely:
1. Using a flat-head screwdriver, gently pry loose each retention peg from the four
corners. Make sure to pry loose each peg gradually so that all four pegs remain
at an even plane during the whole process.
2. When the retention pegs are loose enough, lift the station out, making sure to
keep the station at an even plane as it is lifted out from the backbox.
, Caution
Do not lift the station at an angle as this may damage the pegs!
TECHNICAL MANUAL
IP-CROR Cleanroom Station
backbox
The station is securely fastened
to the backbox using the four
retention pegs supplied.
To mount the station:
peg
1. Insert the four plastic
retainers into the larger and
inner of the holes at each
retainer
corner of the backbox.
2. Align the four retention
retainer
pegs with the four plastic
retainers and push the
station down until flush with
the backbox.
Item No. 1008415000
