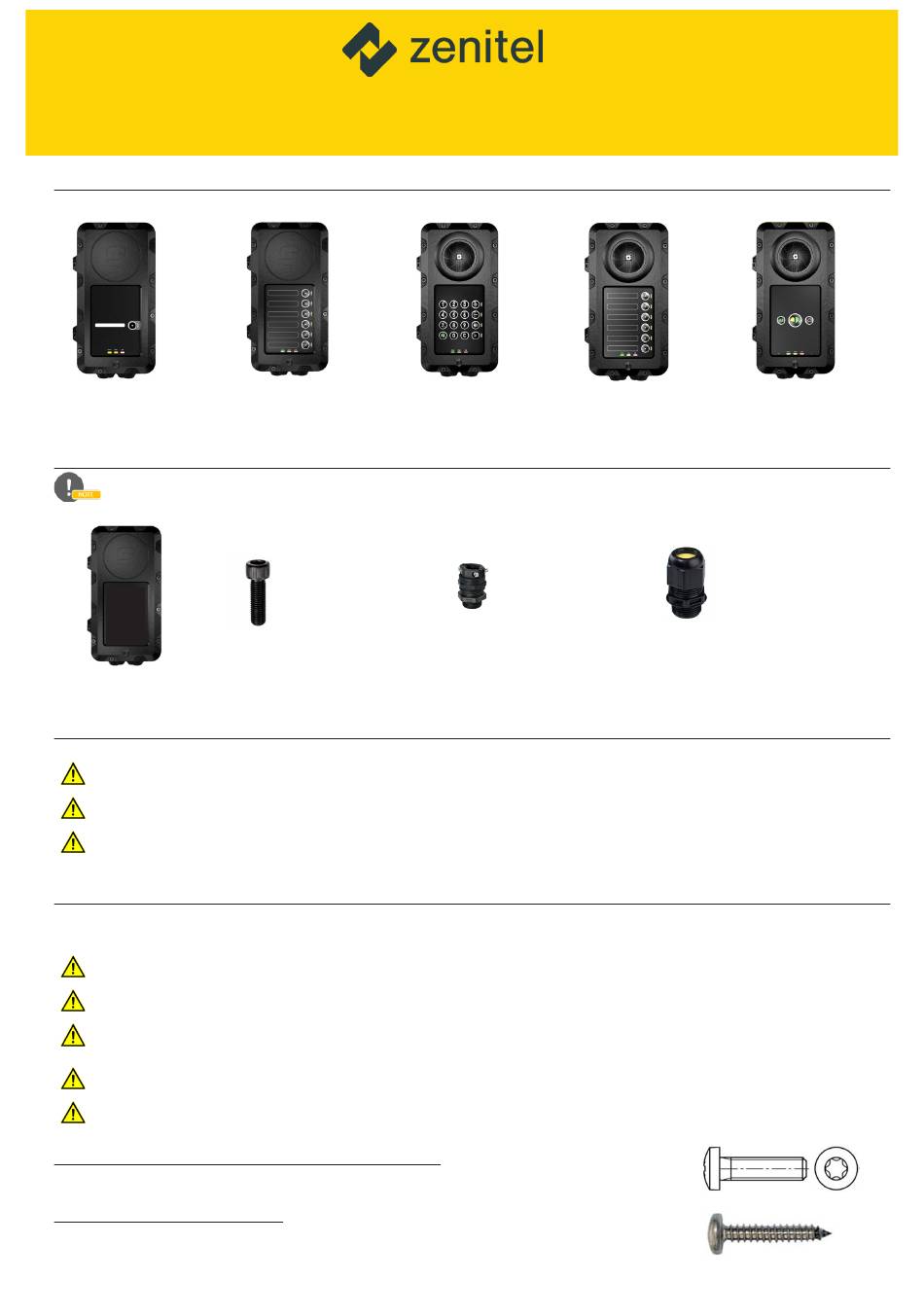

Zenitel Exigo EAPFX Series Mounting Manual

Exigo Ex Access Panels & Turbine Ex Intercoms
Exigo EAPFX & Turbine TFIX Ex Series
Mounting procedures are the same for all units in the Exigo and Turbine Ex series.
EAPFX-1-V2
1023221611

Contents of the Delivery

The unit comes with 4 blind plugs already mounted. The front frame is fastened with 2 socket-head
cap M6 screws.
1 Ex Unit

Important Notes before Mounting

Improper installation and operation of the Ex unit will result in the invalidation of the warranty.
The enclosure/housing must not be opened when the unit is powered.
The installation and connection of Ex units may only be carried out by qualified/approved personnel.

General Mounting Considerations

When the Ex unit is mounted directly onto a wall or mounting plate, it shall rest only on the fastening points
provided for this purpose. The surface must be even and flat.
The unit must be mounted on a surface to prevent access from the rear of the unit.
Do not use countersunk screws.
Due to the cabinet material, use as low a tightening torque as possible when mounting the
unit to the surface (1.5 Nm max.)
Washers are recommended.
Do not use more than 2.5 Nm torque when fastening the 12 screws into the front frame.
On Mounting Plate or Column - recommended screws:
M5 x 20 or 25 with Philips head DIN7985 or Torx head diameter: 10 mm.
On Wall - recommended screws:
Panhead DIN7981 for plug or wooden wall, etc. Head diameter: 10.8 B5.5 x 38 or 45 mm.
Mounting Manual
EAPFX-6-V2
1008123110
1023221616
10 socket-head
cap M6 screws
(+ 2 fastened to
front frame)
TFIX-1-V2 TFIX-2-V2
1008123120
1 Cable Gland
M16 Ex e
TFIX-3-V2
1008123130
1 Cable Gland
M25 Ex e
