Summary of Contents for Zenitel Vingtor Stentofon ITSV-3

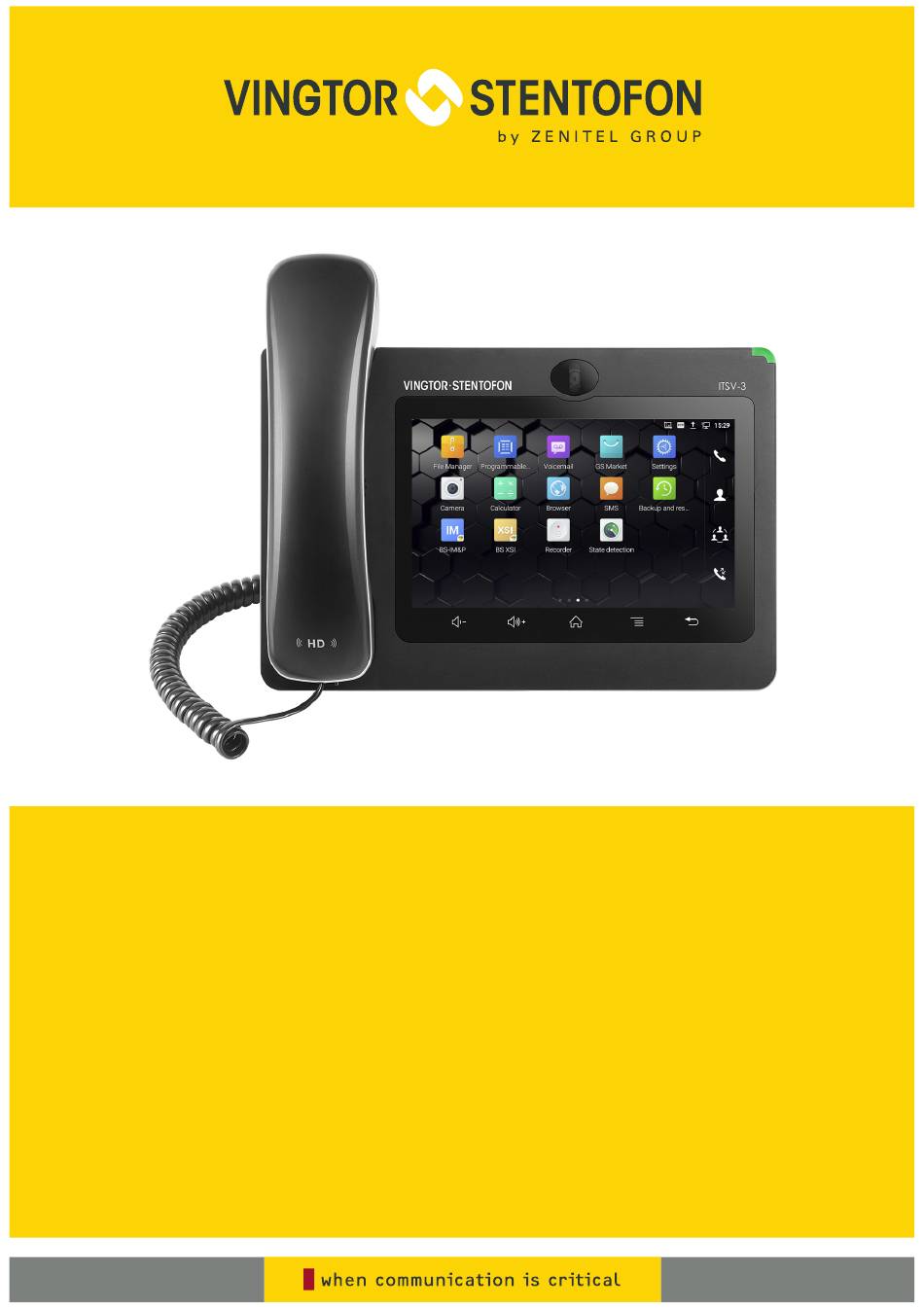

- Page 1 QUICK INSTALLATION & CONFIGURATION GUIDE ITSV-3 IP Touch Station with Video Technical Manual 1490003010 ...
- Page 2 The ITSV-3 is a product developed for Zenitel Norway AS and is primarily used as part of a Zenitel Norway AS IP Intercom solution. The ITSV-3 is not pre-configured to support or carry emergency calls to any type of hospital, law enforcement agency, medical care unit (“Emergency Service(s)”) or any other kind of...
-
Page 3: Package Contents
Precautions Warning: Please DO NOT power cycle the ITSV-3 during system boot-up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction. Warning: Use only the power adapter included in the ITSV-3 package. Using an alternative non-qualified power adapter may possibly damage the unit. Package Contents 1x ITSV-3 Main Case 1x Handset... -
Page 4: Phone Setup

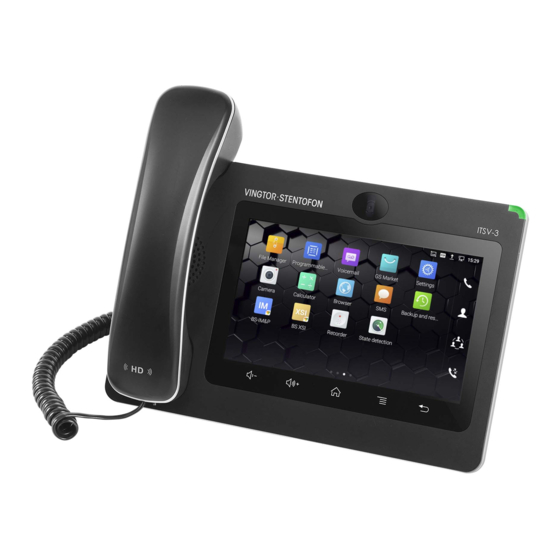

Bluetooth, rich peripheral interfaces, and Android 7.0. The ITSV-3 delivers HD audio & video, leading edge SIP intercom features and integration with IC-EDGE and ICX-AlphaCom IP Intercom Platforms developed by Zenitel Norway AS. ITSV-3 redefines the desktop communication experience with a raised level of innovation and integration of state-of-the-art real-time video conferencing, and personalized rich media presentation &... -
Page 5: Using The Phone Stand
Using the Phone Stand The ITSV-3 has a built-in phone stand. To use it, pull out the phone stand handle on the back of the phone. Adjust the angle as Built-in phone preferred and make sure the phone stands stand for desktop still on the desktop. -
Page 6: Phone Configuration
Phone Configuration • For further information on the configuration for ICX-AlphaCom, SIP, and IC-EDGE, please see Zenitel Wiki Configuring the ITSV-3 Using Touch Screen 1. Make sure the phone is properly powered up, in idle screen mode and connected to the network. - Page 7 Configuring the ITSV-3 Using Web Browser 1. Ensure your phone is properly powered up and connected to the Internet. 2. To find the IP address of the ITSV-3, use the touch screen and tap Settings > Status > Network status > IPv4 address 3.
- Page 8 The following sections describes how the ITSV-3 is configured to work together with the TCIV+ Video Intercoms TCIV-2+/TCIV-3+/TCIV-5+/TCIV-6+. ICX-AlphaCom Configuration ● Log into the ITSV-3 by entering default username / password: admin / alphaadmin ICX-AlphaCom ITSV-3 Account Setup ● Select Account > Account 1 > General Settings ●...
- Page 9 ICX-AlphaCom ITSV-3 Video Configuration The video is streamed in H.264 format over RTSP protocol from the TCIV+ camera to the ITSV-3. The TCIV+ camera must have a static IP address. ● Select Account 1 > Call Settings ● Check the box for Start Video Automatically ●...
- Page 10 ● Under Manually Added Devices click the + button to select Vingtor-Stentofon Device from the dropdown list For further information on the configuration of IC-EDGE, please see Zenitel Wiki ● Log into the ITSV-3 by entering default username / password: admin / alphaadmin IC-EDGE ITSV-3 Account Setup ●...
-
Page 11: Contact Customer Service
Oct 2020 Zenitel and its subsidiaries assume no responsibility for any errors that may appear in this publication, or for damages arising from the information therein. Vingtor-Stentofon products are developed and marketed by Zenitel. The company’s Quality Assurance System is certified to meet the requirements in NS-EN ISO 9001. Zenitel reserves the right to modify designs and alter specifications without notice.
