Zenitel VINGTOR STENTOFON ITSV-1 Quick Start Manual

Included in the Kit


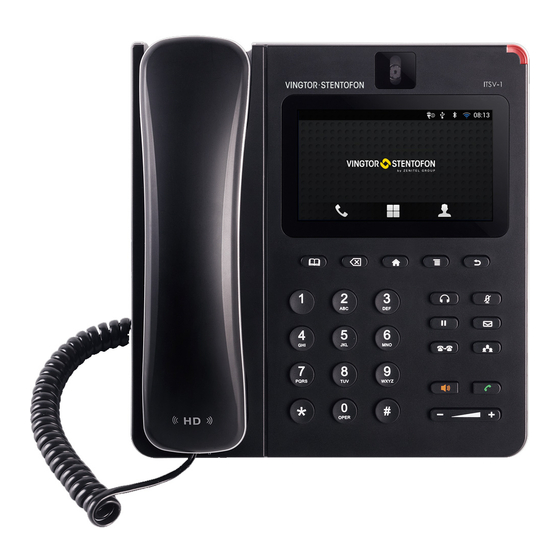

ITSV-1 Video Desk Master Intercom

ITSV-1 mounting brackets

TCIV-3 Video Door Intercom

Station to back-box sealing gasket

TA-1 Surface Mount Back-box

Screws, grommets and plugs

Locating Template

Quick Start Guide
Required - Not Included in the Kit

Ethernet Switch

CAT6 or 7 Ethernet cabling (lengths determined by site)

Back-box mounting screws appropriate to substrate
(max diameter 5/16")
Tools Needed

Drill

Drill bit (size depends on screws used for mounting)

Tape measure

T-25 Torx driver for station to back-box mounting

Masking tape

Marking pen

Miscellaneous tools pliers, screw drivers, cutters, etc.
Video Entry Kit
Quick Start Guide
