FUNKY MONKEY BARS HORIZONTAL CARGO NET Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HORIZONTAL CARGO NET
ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HORIZONTAL CARGO NET and is the answer not in the manual?

Questions and answers

Related Manuals for FUNKY MONKEY BARS HORIZONTAL CARGO NET

Summary of Contents for FUNKY MONKEY BARS HORIZONTAL CARGO NET

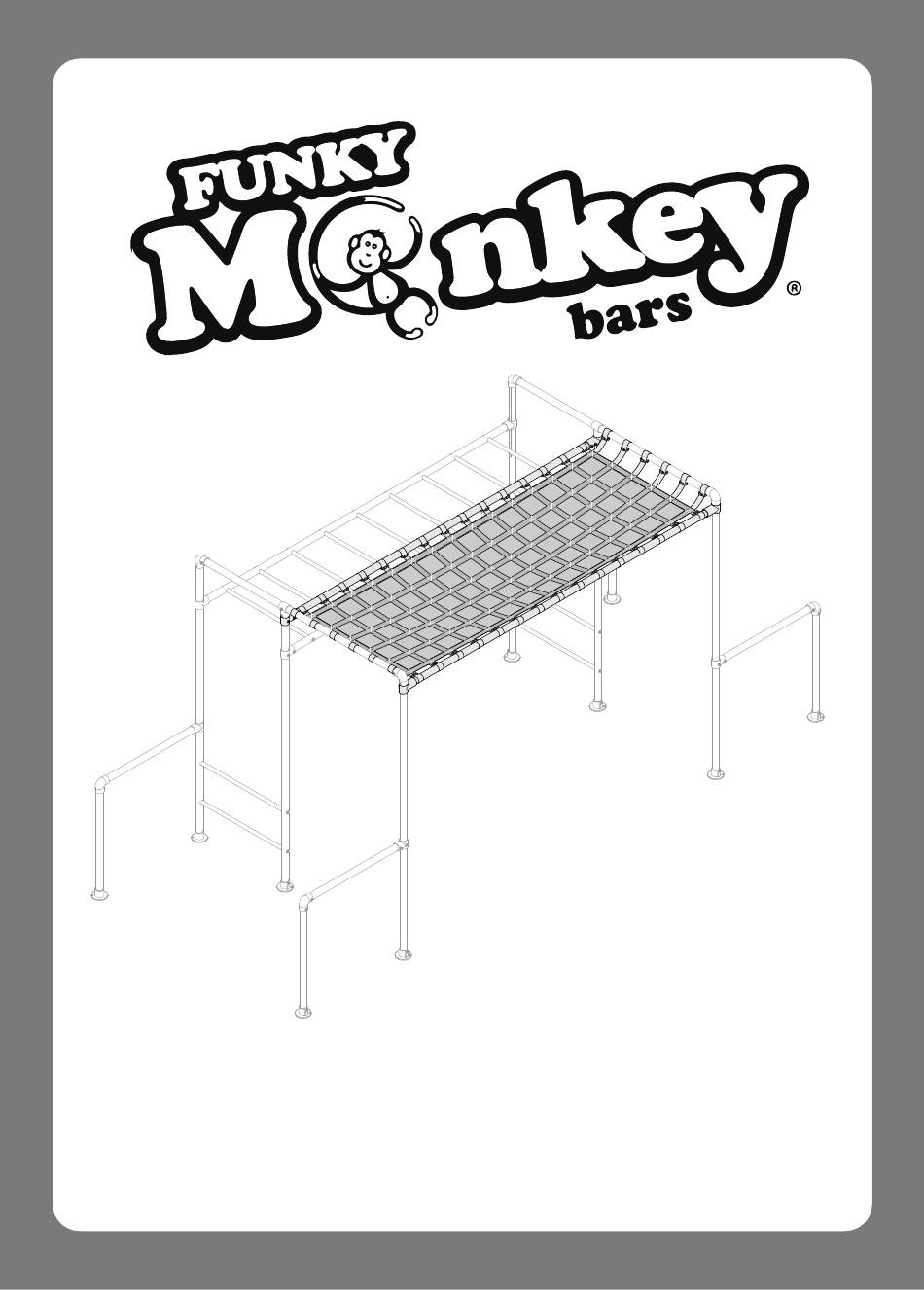

  • Page 1 HORIZONTAL CARGO NET ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    ALWAYS: 1. Use equipment as intended: to swing or hang from the underside only, use for play. 2. Use this product on Funky Monkey Bars® only. 3. Ensure adult supervision at all times. 4. Maintain regularly as detailed within owners manual and assembly instructions.
  • Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) All tubes must be fully inserted until contact is made with adjoining tube. Gap. No gap. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1.

  • Page 5: Inventory And Tools

    FRAMES BUT THE ASSEMBLY METHOD WILL REMAIN CONSISTENT. ® CHECK THAT YOU DO NOT NEED 2 ACCESSORIES BARS FOR YOUR CHOSEN INSTALLATION- SEE STEP 1 INVENTORY - HORIZONTAL CARGO NET (ALL FRAMES EXCEPT CHEEKY MONKEY) (Not to scale) Long Short Tee...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS - NUMBER OF ACCESSORIES BARS REQUIRED? SELECT THE ARRANGEMENT YOU DESIRE. Existing monkey bar ladder. The horizontal cargo net can be installed directly onto the monkey bar ladder 1x accessories bar. in highest position). See installation ‘A’ The horizontal cargo net can be installed using 2 accessories bars.

  • Page 7: Existing Frame Preparation

    ASSEMBLY INSTRUCTIONS - EXISTING FRAME PREPARATION ADDING A HORIZONTAL CARGO NET TO AN EXISTING FRAME. (INSTALLATION TYPE ‘B’ STEP 1) - ORANGUTAN MODEL SHOWN SELECT HORIZONTAL CARGO NET INSTALL LOCATION Horizontal cargo net Remove any accessories installation location. from swing hooks in the selected area to ease installation.

  • Page 8: 1X Accessories Bar

    ASSEMBLY INSTRUCTIONS - ACCESSORIES BAR ASSEMBLE ACCESSORIES BAR (1x or 2x) 1x or 2x Long Short Tee D-101L 1x or 2x Accessories Tube 50Dia x 2950mm Slide long short tees onto ends of required accessories tubes as per detail and fully tighten all grub screws.

  • Page 9: Horizontal Cargo Net

    ASSEMBLY INSTRUCTIONS - HORIZONTAL CARGO NET LAY HORIZONTAL CARGO NET ON TOP 1x Horizontal Cargo Net With the mesh mat side up and the straps underneath the mat lay the horizontal cargo net over the attached accessories bar and swing bar.
  • Page 10 CONNECT CORNER STRAPS TO TUBES. Connect the corner straps at A,B,C & D to the swing and accessories bars, as described below. 1. Undo the shackles fully 2. Pinch the strap together and 3. Tighten the shackle and repeat and flip the straps over feed into the shackle (passed to all other corner straps.
  • Page 11 CONNECT ALL REMAINING STRAPS 1. Using the same process described in step 6 connect all remaining straps to the swing and accessories bar. 2. Ensure that all the shackles are fully locked closed. Connect all remaining straps to the tubes. Page 10...

  • Page 12: Monkey Straps

    ASSEMBLY INSTRUCTIONS - MONKEY STRAPS CONNECT MONKEY STRAPS 1. On the underside straps of the horizontal cargo net attach the monkey straps in an arrangement that suits your needs and skill level. 2. Ensure that the shackles are fully tightened and locked.

  • Page 13: Maintenance

    RE-ATTACH ACCESSORIES (if applicable) Attach any accessories removed during the installation of the horizontal cargo net (if applicable). Check that all swing hook bolts are tightened with a rachet. Refer to individual accessory assembly instructions for details. FINAL CHECKS 1. Ensure all shackles are tight.
  • Page 14 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
