3m CARGO WALL

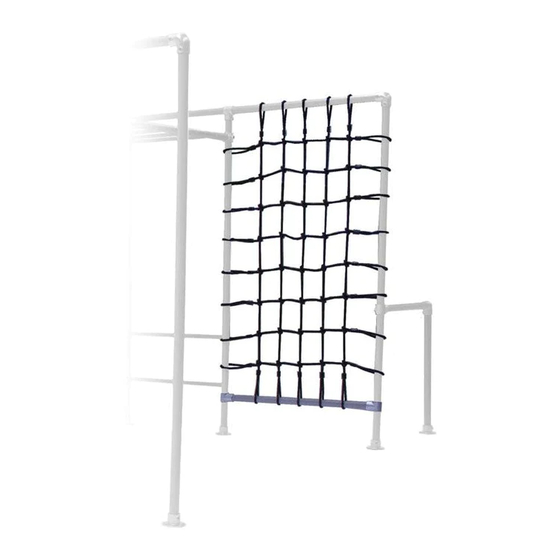

CARGO NET
CARGO NET/WALL
(add on)
ASSEMBLY INSTRUCTIONS
PART 1. HOW TO ADD A CARGO NET TO AN EXISTING FRAME.
PART 2. HOW TO ADD A CARGO NET FROM THE START.
PART 3. HOW TO ADD A 3m CARGO WALL.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CARGO NET and is the answer not in the manual?

Questions and answers

Related Manuals for FUNKY MONKEY BARS CARGO NET

Summary of Contents for FUNKY MONKEY BARS CARGO NET

  • Page 1 CARGO NET CARGO NET/WALL (add on) ASSEMBLY INSTRUCTIONS PART 1. HOW TO ADD A CARGO NET TO AN EXISTING FRAME. PART 2. HOW TO ADD A CARGO NET FROM THE START. PART 3. HOW TO ADD A 3m CARGO WALL.

  • Page 2: Safety Notice

    Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way.

  • Page 3: Maintenance

    Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) All tubes must be fully inserted until contact is made with adjoining tube. Gap. No gap. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1.
  • Page 5 THE INVENTORY AND ASSEMBLY METHOD WILL VARY ACCORDING TO THE PURCHASED CARGO NET OR WALL ADD-ON PART 1 & 2 - YOUR SUPPLIED PACK WILL BE THE CARGO NET. PART 3 - YOUR SUPPLIED PACK WILL BE THE CARGO WALL.
  • Page 6 PART 1 - EXISTING FRAME HOW TO ADD A CARGO NET TO AN EXISTING FRAME. CHOOSE CARGO NET INSTALL LOCATION & REMOVE PEGS (single swing frame shown) Cargo net installation location. Remove pegs from install location legs and any twirly whirlys attached to the install area.
  • Page 7 UNDO BOLTS ON ADJUSTABLE LEG x2 Ladder bar. Loosen grub screw attaching ladder bar to adjustable leg tube on the selected cargo net side. Remove 2x bolts attaching rungs to adjustable leg tube on the selected side. Undo grub screw on base plate.
  • Page 8 SLIDE CARGO NET ONTO ADJUSTABLE LEG TUBE Adjustable leg tube. Thread the adjustable leg tube down one side of the cargo net. Ensure the bottom hoop is sitting between the two rung holes on the leg. Insert short tee and replace base plate to leg.
  • Page 9 Attach the short tees and the elbows on the swing bars to the main monkey bar adjustable legs. The cargo net side will need to be threaded through the top cargo net hoops before attaching. Fully tighten all grub screws. Main monkey bar adjustable legs ATTACH SWING LEG 90º...
  • Page 10 4. Pull swing leg outwards and slot other end of cargo bar into short tee (C). Swing Leg 5. Get second person to stand on tube to make cargo net taught and level, then fully tighten all grub screws. + 360 Cargo Tube...
  • Page 11 SECURE TO GROUND Pegs CHECK ALL FITTING GRUB SCREWS AND RUNG BOLTS ARE FULLY TIGHTENED + 360 1. Ensure frame is square and level. 2. Firmly tighten all grub screws and bolts. HAVE FUN Page 10...

  • Page 12: Leg Assembly

    PART 2 - NEW FRAME HOW TO ADD A CARGO NET FROM THE START. LEG ASSEMBLY Insert plastic end caps into leg tubes. Adj. Leg Tube Dia 50 x 2300mm Plastic End Cap Page 11...
  • Page 13 M10 Bolts Washers from step 1 ATTACH SECOND LEG AND CARGO NET 1. Slide cargo net onto second leg tube. Hand tighten all bolts. Cargo Net 2. Ensure one hoop is positioned between the 2 rungs. Bolt adjustable leg to rungs.
  • Page 14 ATTACH BASE PLATES AND 1x SHORT TEE (A) (cargo net side) Tighten all grub screws on base plates. Short Tee Leave short tee (A) loose. D-101 Base Plate + 360 D-125 APPLY HEIGHT STICKERS Height Sticker Move net downwards to allow height sticker application if required.
  • Page 15 Position top short-tee at measured height. Push through cargo hoops if required. ® AS EVERY FUNKY MONKEY BARS ARRANGEMENT IS DIFFERENT PLEASE CHECK YOUR FRAME MODEL ASSEMBLY INSTRUCTIONS FOR ANY ADDITIONAL FITTINGS THAT MAY NEED BE ATTACHED AT THIS STAGE TO THE LEGS.
  • Page 16 Attach the short tees and the elbows (on the swing bars) to the main monkey bar ladder legs. The cargo net side will need to be threaded through the top cargo net hoops before attaching. Fully tighten all grub screws. Main monkey bar adjustable legs...
  • Page 17 4. Pull swing leg outwards and slot other end of cargo bar into short tee (C). Swing Leg 5. Get second person to stand on tube to make cargo net taught and level, then fully tighten all grub screws. + 360 Cargo Tube...
  • Page 18 + 360 1. Ensure frame is square and level. 2. Firmly tighten all grub screws and bolts. ® CONTINUE WITH REMAINING ASSEMBLY INSTRUCTIONS FOR THE FUNKY MONKEY BARS FRAME YOU ARE INSTALLING HAVE FUN For more information and assembly tips please refer to our website video instruction section at http:/ /www.funkymonkeybars.com/pages/videos...
  • Page 19 PART 3 - 3m CARGO WALL ASSEMBLY HOW TO ADD A 3m CARGO WALL TO AN EXISTING FRAME. CHOOSE CARGO WALL INSTALL LOCATION & REMOVE PEGS (orangutan frame shown) 1. Remove pegs from install location legs and any twirly whirlys attached to the install area.
  • Page 20 + 360 1. Feed the swing leg tubes (removed in step 2) through the accessories support tube long short tees, side cargo net hoops and short tees A & B (located between cargo hoops 2 &3) 2. Attach base plates. Ensure they are fully inserted and fully tighten grub screws.
  • Page 21 ATTACH CARGO WALL INTO POSITION Swing bars. 1. With 2 people lift the cargo wall assembly into position and fully insert elbows into the swing bar ends. 2. Fully tighten all grub screws. Cargo wall assembly from step 4. SECURE TO GROUND 1.
  • Page 22 1. Loosen outside grub screws on long short tees A & B connecting to leg. 2. Get a second person to stand on lower tube to make cargo net taught and level. 3. Fully tighten all grub screws on long short tees A & B.
  • Page 23 ATTACH TWIRLY WHIRLY BARS x4 1. Adjust & rotate short tees A & B to align level with twirly whirly bars. 2. Tighten all grub screws fixing twirly whirlys to legs. Tighten all grub screws. 2x Twirly whirly bars removed step 2. + 360 CHECK ALL FITTING GRUB SCREWS ARE FULLY TIGHTENED + 360...
  • Page 24 ASSEMBLY INSTRUCTIONS - LOAD TWIRLY WHIRLY BARS LOAD YOUR TWIRLY WHIRLY BARS x2 To reduce movement in your frame load your twirly whirly bars as follows. . Loosen the grub screw fixing the short tee to the swing leg. Swing leg Twirly Whirly .

  • Page 25: Final Checks

    FINAL CHECKS 1. Ensure frame is square and level. 2. Firmly tighten all grub screws and bolts. 3. All base plates are pegged down. MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1.
  • Page 26 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
