- Page 1 THE HEIGHT EXTENDER (TOP) ADD-ON ASSEMBLY INSTRUCTIONS...
-
Page 2: Table Of Contents
Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way. - Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.
-
Page 4: Load Rating
QUALITY & INDEPENDENT TESTING At Funky Monkey Bars® we take the quality of our designs and safety very seriously. All Funky Monkey Bars® frames go through a stringent, independent structural testing process prior to being made available for release to our customers. -
Page 5: Dimensions

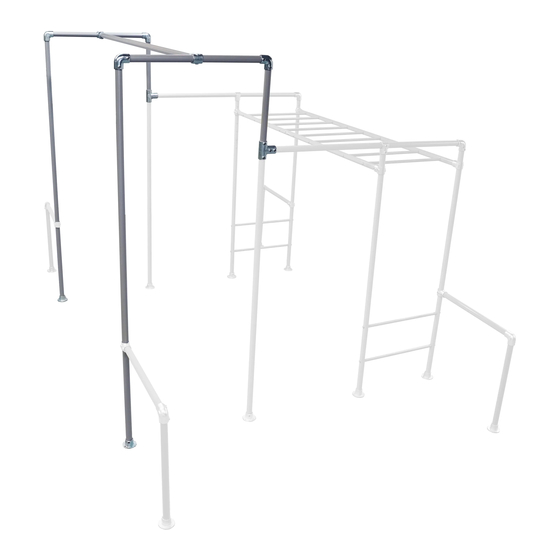

DIMENSIONS FUNKY MONKEY BARS ® HEIGHT EXTENDER (TOP) OVERALL DIMENSIONS PERSPECTIVE VIEW (not to scale) 3.07 Metres PLAN VIEW (not to scale) 3.0 Metres SIDE VIEW (not to scale) Page 4... -
Page 6: Assembly Tips
ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) Gap. No gap. All tubes must be fully inserted until contact is made with adjoining tube. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1. - Page 7 ASSEMBLY TIPS (continued) IT IS CRITICAL YOUR MAIN FRAME IS 100% SQUARE AND LEVEL - (indicative diagram shown) PLAN VIEW Check assembly is 100% level, square & straight. SIDE VIEW If your frame is not straight or level remove pegs, loosen grub screws, re-adjust re-tighten and re-peg the frame.
-
Page 8: Inventory
INVENTORY TOOLS REQUIRED FOR INSTALLATION 8mm Allen key Soft Hammer 17mm Rachet Spirit Level Tape Measure 3m Step Ladder (Included) (Not included) (Not included) (Not included) (Not included) (Not included) TUBES 600 Extender Tube Cargo Tube Accessories Tube FITTINGS Elbow Straight Through Extra Long Tee D-125... -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS - PRE-INSTALLATION SELECT THE LOCATION FOR THE HEIGHT EXTENDER (TOP) - (gorilla model shown) 1. Depending on your Funky Monkey Bars© model and configuration select a side for the Height Extender to be installed. Funky Monkey Bars© recommends the opposite side to the cargo net, for ease of assembly and safety. - Page 10 LOWER LEGS AND REMOVE ACCESSORIES & ELBOWS 2. Remove elbows from legs. LOOSEN GRUB SCREWS 1. Undo the lower grub screws on fittings A,B,D & E. 2. Undo all grub screws on fittings C & F. Page 9...
- Page 11 Swing bar. REMOVE SHORT TEES Raise up swing bar ends and slide off short tees C & F. Remove short tees. SLIDE ON STRAIGHT THROUGH FITTING. Swing bar. 1. Slide on straight through fittings to leg position C & F. Make sure grub screws are facing outwards.
- Page 12 RE-ATTACH SWING HOOKS - (if applicable) If applicable replace swing hooks to original centred location and tighten bolts. ASSEMBLE LEGS x2 Slide extra long tees onto lowered legs from step 2, and Swing legs lowered tighten grub screws. from step 2. Page 13 Ensure leg is not over inserted - &...
- Page 13 REATTACH SWING LEGS. Firmly tighten all grub screws. Ensure swing bars are fully inserted into swing leg extra long tees. Swing leg. + 360 Firmly tighten all grub screws. SECURE TO GROUND 1. Check level and square. 2. Hammer in swing leg pegs x2. Pegs Page 12...
-
Page 14: Height Extender Frame Installation
INSERT EXTENDER TUBES x4 Insert extender tubes and leave hand tight whilst installing extender frame. 600 Extender Tube Dia 50 x 600mm Ensure extension tube is fully inserted into straight through fitting. Ensure extension tubes are fully Leave extender tubes hand inserted into swing leg extra long tees. - Page 15 ASSEMBLY INSTRUCTIONS - HEIGHT EXTENDER FRAME ASSEMBLE TOP ACCESSORY TUBE Extra Long Tee D-104L Swing Hook (Not supplied- if applicable only) NOTE: If you have purchased components for your accessories tube then equally space out swing hooks along the tube, Tighten all grub screws &...
- Page 16 INSTALL TOP ACCESSORY FRAME 1. With a ladder at each end flip over, lift and then insert top accessory frame onto the 4 loose extender tubes. Flip 180º Top accessory frame from step 12. + 360 2. Tighten all grub screws firmly. 3.
- Page 17 LOAD YOUR TWIRLY WHIRLY BARS x2 To reduce movement in your frame load your twirly whirly bars as follows. 2. Loosen the grub screw fixing the short tee to the swing leg. Swing leg Twirly Whirly 1. Ensure twirly whirly is level and square 3.
-
Page 18: Maintenance
ATTACH ACCESSORIES (if applicable) Attach new and existing accesories in desired position if applicable and tighten swing hook bolts with rachet. Existing accessory: (trapeze shown) Existing accessory: (sling swing shown) FINAL CHECKS 1. Ensure frame is square and level. 2. Firmly tighten all grub screws and bolts. 3. - Page 19 MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1. Tighten all hardware - grub screws, nuts and bolts. 2. Pegs are in place and fully secure. 3. Lubricate all metallic moving parts with WD40 or vasaline - (trolley and swing hooks.) 4.
- Page 20 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
