Elevator Assembly - Spacerails Level 3 Instruction Booklet

D

ELEVATOR ASSEMBLY

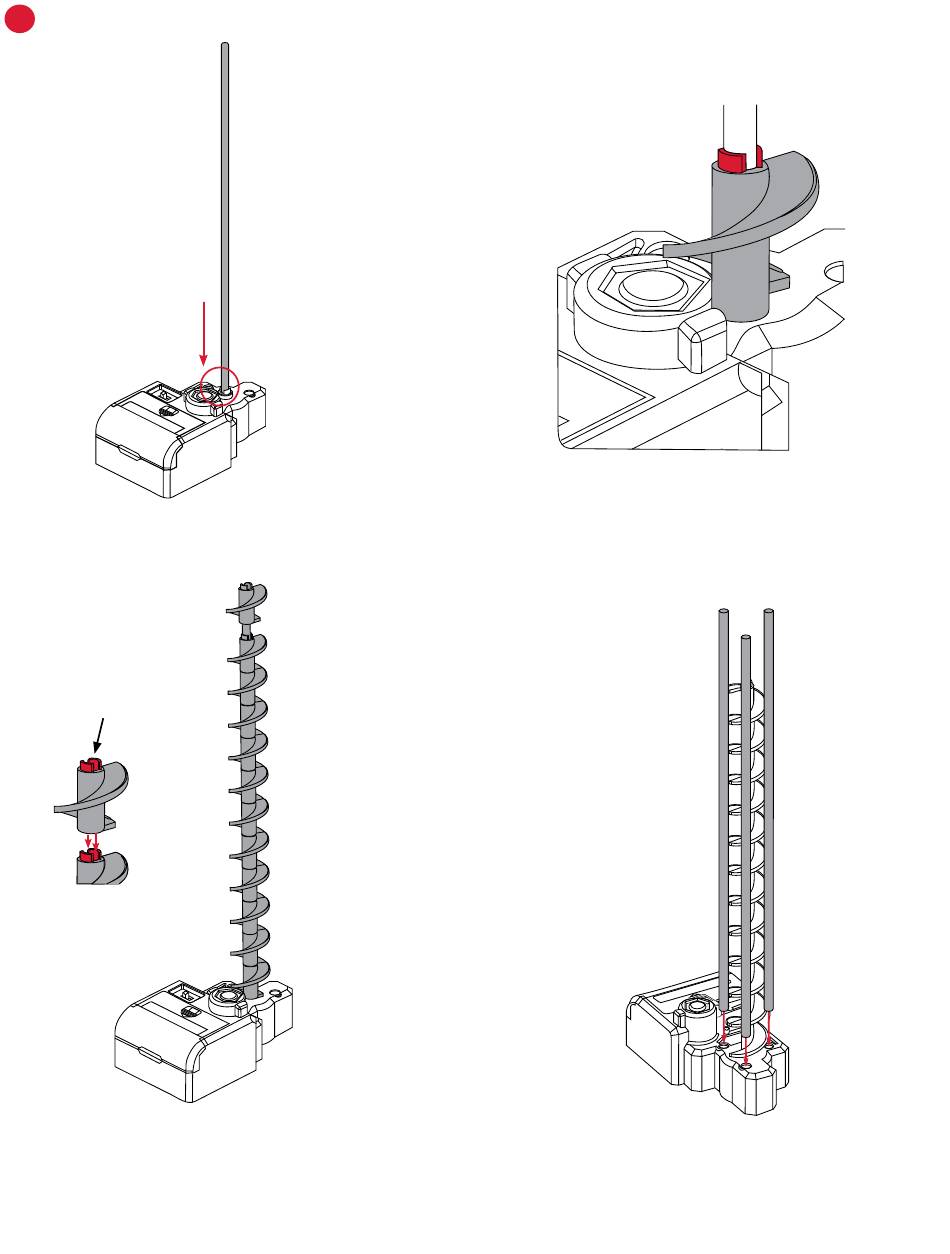

Step 1: Place a 300 mm shaft in
the white hole on the Power Box.
Male side up
Always stack
with male
side up.
Step 3: Connect 12 Elevator Helix pieces
together with the male part facing up to
fill the shaft. Rotate each piece so the
track lines up with the piece below it.
Page 6
Seaich Corporation, LLC. All rights reserved. www.seaich.com | Spacerails, LLC. www.spacerails.com
Step 2: Install the first Elevator Helix piece male
side up and rotate it until it slides in place and
engages with driver at the base of Power Box.
Step 4: Once the corkscrew is built,
attach three 300 mm support shafts to
the Power Box in the 3 holes shown.
