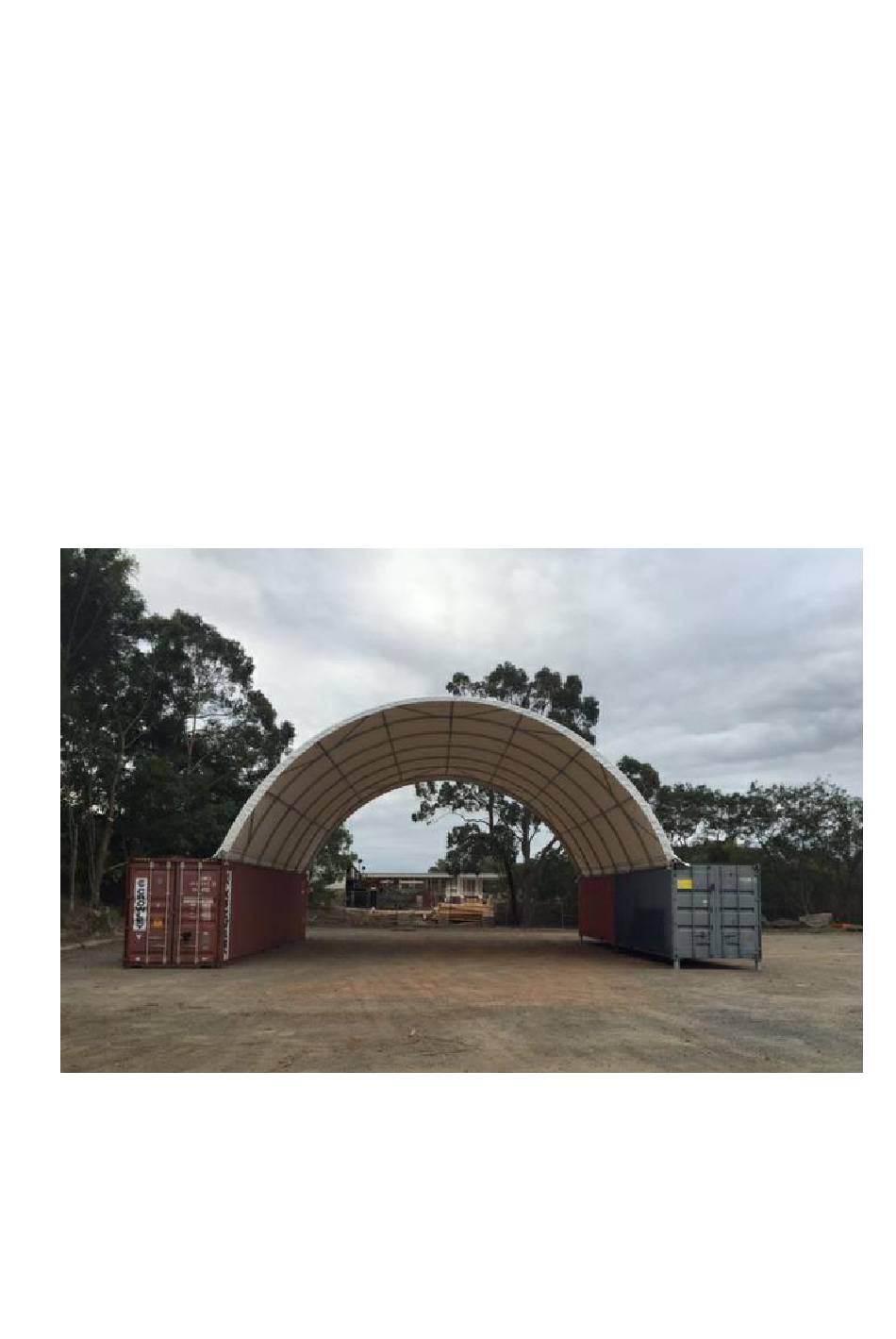

- Page 1 SHELTER ASSEMBLY MANUAL Model # W12xL24xH 4.5m C4080S Container Shelter...
-
Page 2: Specification
SPECIFICATION Width:12m Length:24m Height:4.5m IMPORTANT-----READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list. -
Page 3: Parts List
Parts List Part Code Description Top Bent Tube Side Bent Tube Lower Bent Tube Purlin Top Tension Device Clips Left Base Plate Right Base Plate Ratchet Nylon band for ratchet Tensioning Tube 2 Groups Bolts M8x70 Bolts M12x30 Bolts M10x80 Roof Cover Knitting Rope for Cover Plastic Plug... - Page 4 EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A—BASE INSTALLATION Please refer to the diagram (Figure 1) to place the base plates. Figure 1 1.
- Page 5 Figure 2 Sketch Frame B—FRAME INSTALLATION...
- Page 6 Figure 3 Figure 4 C—ROOF COVER INSTALLATION NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with breeze blowing in the cover like a sail filled with air.
- Page 7 Figure 5...
- Page 8 Figure 6 Please check the below installation detailed pictures:...
- Page 9 NOTE: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDER ANY CIRCUMSTANCES until the final assembly and tightening has been completed. The process is quite easy. But some tightening adjustments will be necessary to produce a flat, tensioned roof cover. Please adjust the roof cover every month. Please Note: Please use the tape wrapped around the gap between the steel skeleton after installing.
