1
PANEL DESCRIPTION

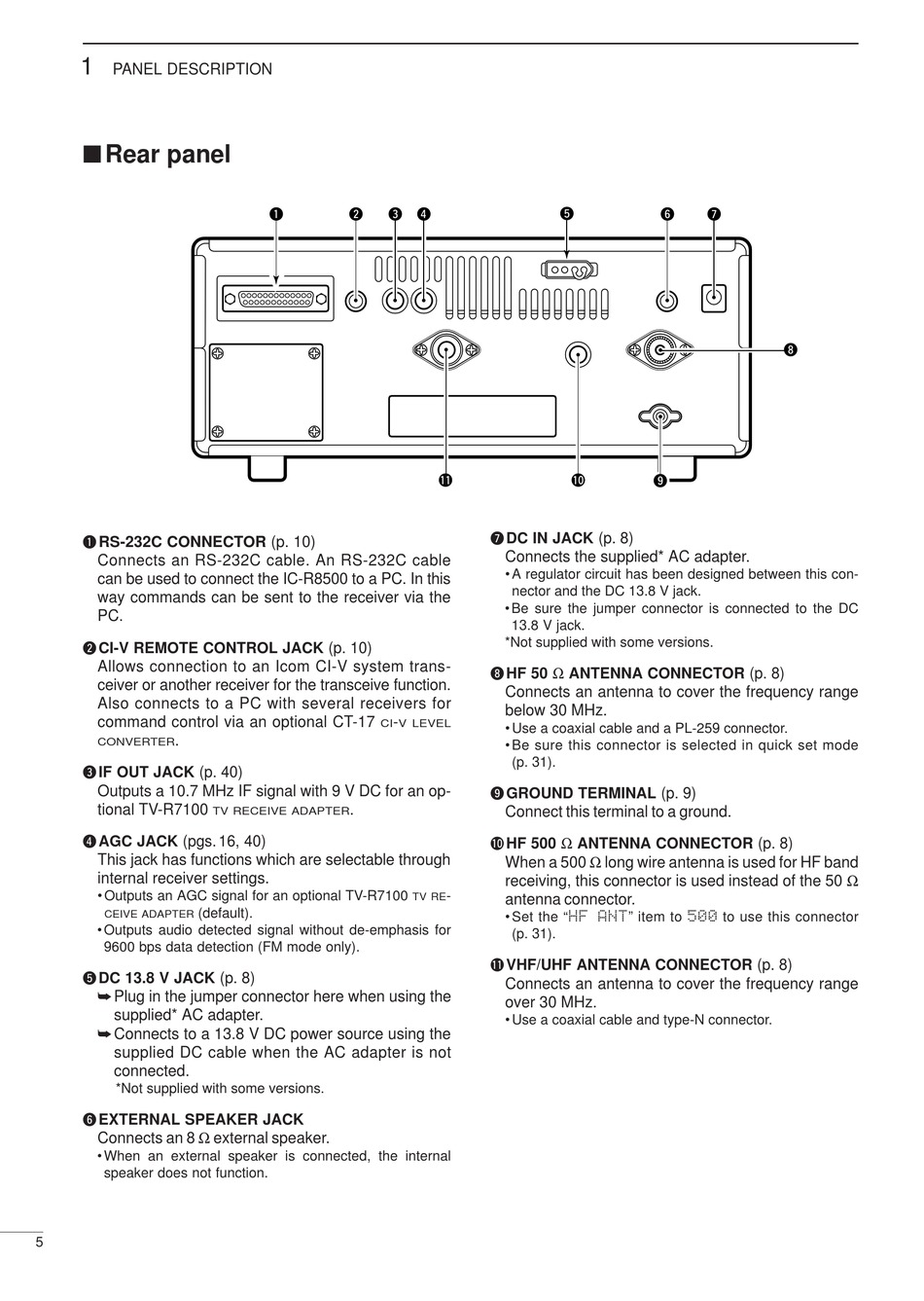

Rear panel
q
RS-232C CONNECTOR (p. 10)
Connects an RS-232C cable. An RS-232C cable
can be used to connect the IC-R8500 to a PC. In this
way commands can be sent to the receiver via the
PC.
w
CI-V REMOTE CONTROL JACK (p. 10)
Allows connection to an Icom CI-V system trans-
ceiver or another receiver for the transceive function.
Also connects to a PC with several receivers for
command control via an optional CT-17
.
CONVERTER
e
IF OUT JACK (p. 40)
Outputs a 10.7 MHz IF signal with 9 V DC for an op-
tional TV-R7100
r
AGC JACK (pgs. 16, 40)
This jack has functions which are selectable through
internal receiver settings.
• Outputs an AGC signal for an optional TV-R7100
(default).
CEIVE ADAPTER
• Outputs audio detected signal without de-emphasis for
9600 bps data detection (FM mode only).
t
DC 13.8 V JACK (p. 8)
Plug in the jumper connector here when using the
supplied* AC adapter.
Connects to a 13.8 V DC power source using the
supplied DC cable when the AC adapter is not
connected.
*Not supplied with some versions.
y
EXTERNAL SPEAKER JACK
Connects an 8 Ω external speaker.
• When an external speaker is connected, the internal
speaker does not function.
5
q
w
CI
.
TV RECEIVE ADAPTER
e
r
t
!1
u
DC IN JACK (p. 8)
Connects the supplied* AC adapter.
• A regulator circuit has been designed between this con-
nector and the DC 13.8 V jack.
• Be sure the jumper connector is connected to the DC
13.8 V jack.
*Not supplied with some versions.
HF 50 Ω ANTENNA CONNECTOR (p. 8)
i
Connects an antenna to cover the frequency range
below 30 MHz.
-
V LEVEL
• Use a coaxial cable and a PL-259 connector.
• Be sure this connector is selected in quick set mode
(p. 31).
o
GROUND TERMINAL (p. 9)
Connect this terminal to a ground.
HF 500 Ω ANTENNA CONNECTOR (p. 8)
!0
When a 500 Ω long wire antenna is used for HF band
receiving, this connector is used instead of the 50 Ω
-
TV RE
antenna connector.
• Set the "HF ANT" item to 500 to use this connector
(p. 31).
!1
VHF/UHF ANTENNA CONNECTOR (p. 8)
Connects an antenna to cover the frequency range
over 30 MHz.
• Use a coaxial cable and type-N connector.
y
u
!0
o
i
