TV-R7100
TV RECEIVE ADAPTER

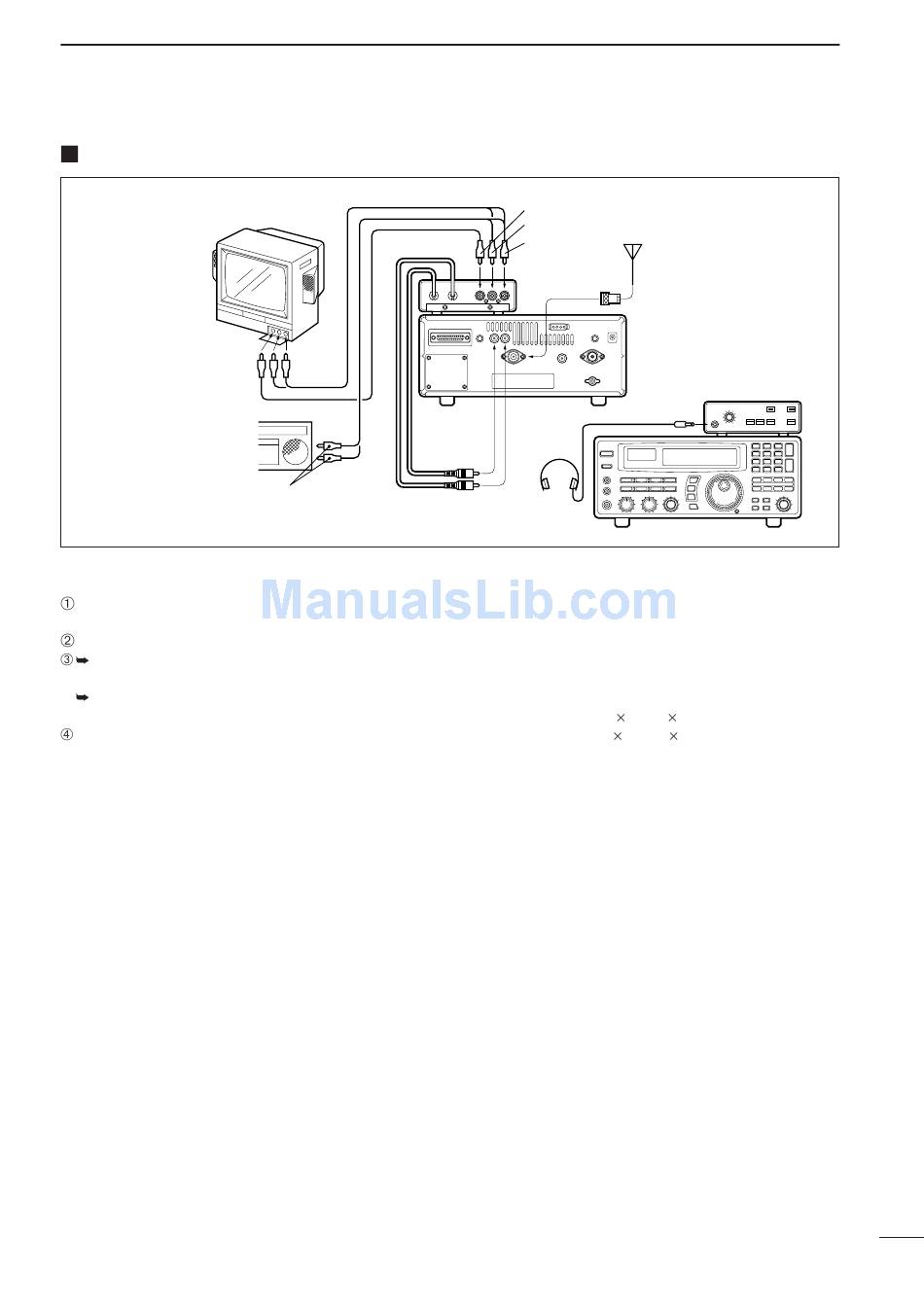

D Connections
Red to right*
White to left
Yellow to video
*When the TV set
has only one audio
jack, connect the
white cable only.
Red to right
White to left
Yellow: no connection
D Operation
Turn on the TV-R7100, IC-R8500 and all connected
equipment.
Select WFM mode.
Push OUT [FM/TV] on the TV-R7100 to select
"TV" when receiving TV broadcasts or ATV.
Push IN [FM/TV] on the TV-R7100 to select "FM"
when receiving FM broadcasts in stereo.
Set the frequency of the audio center frequency of
the desired TV or FM signals by the main dial or di-
rect keypad entry.
• The FM center indicator on the IC-R8500's function dis-
play is useful for tuning.
• Pictures appear on your TV screen and sound is emitted.
yellow
white*
red
[IF OUT] [AGC]
red from
[IF IN]
black from
stereo
[TV CONTROL]
headphones
D TV-R7100 specifications
General
• Power supply requirement: 9 V negative ground
• Current drain: Approx. 100 mA
• Dimensions: 110(W) 35(H) 200(D) mm;
4.3(W) 1.4(H) 7.9(D) in
(projections not included)
• Weight: 750 g; 1.7 lb
• Headphone jack impedance: 32 Ω
TV receiver
• Video carrier input frequency: 15.2 MHz
• Audio carrier input frequency: 10.7 MHz
• Audio intermediate frequency: 4.5 MHz
• Video output level: 1 V p-p (75 Ω)
• Audio output level: 300 mVrms/47 kΩ load (U.S.A. version)
FM receiver
• Intermediate frequency: 10.7 MHz
• Selectivity: 230 kHz/–6 dB
• Audio output level: 300 mV/47 kΩ
• Stereo separation: More than 30 dB (1 kHz)
OPTIONAL INSTALLATIONS
Antenna
TV-R7100
(supplied from the IC-
R8500)
(when receiving no sig-
nal)
(approx.)
sion)
16.2 MHz
sion)
(U.S.A. version)
5.5 MHz (Europe version)
400 mVrms/47 kΩ load (Europe version)
12
(U.S.A. ver-
(Europe ver-
40
