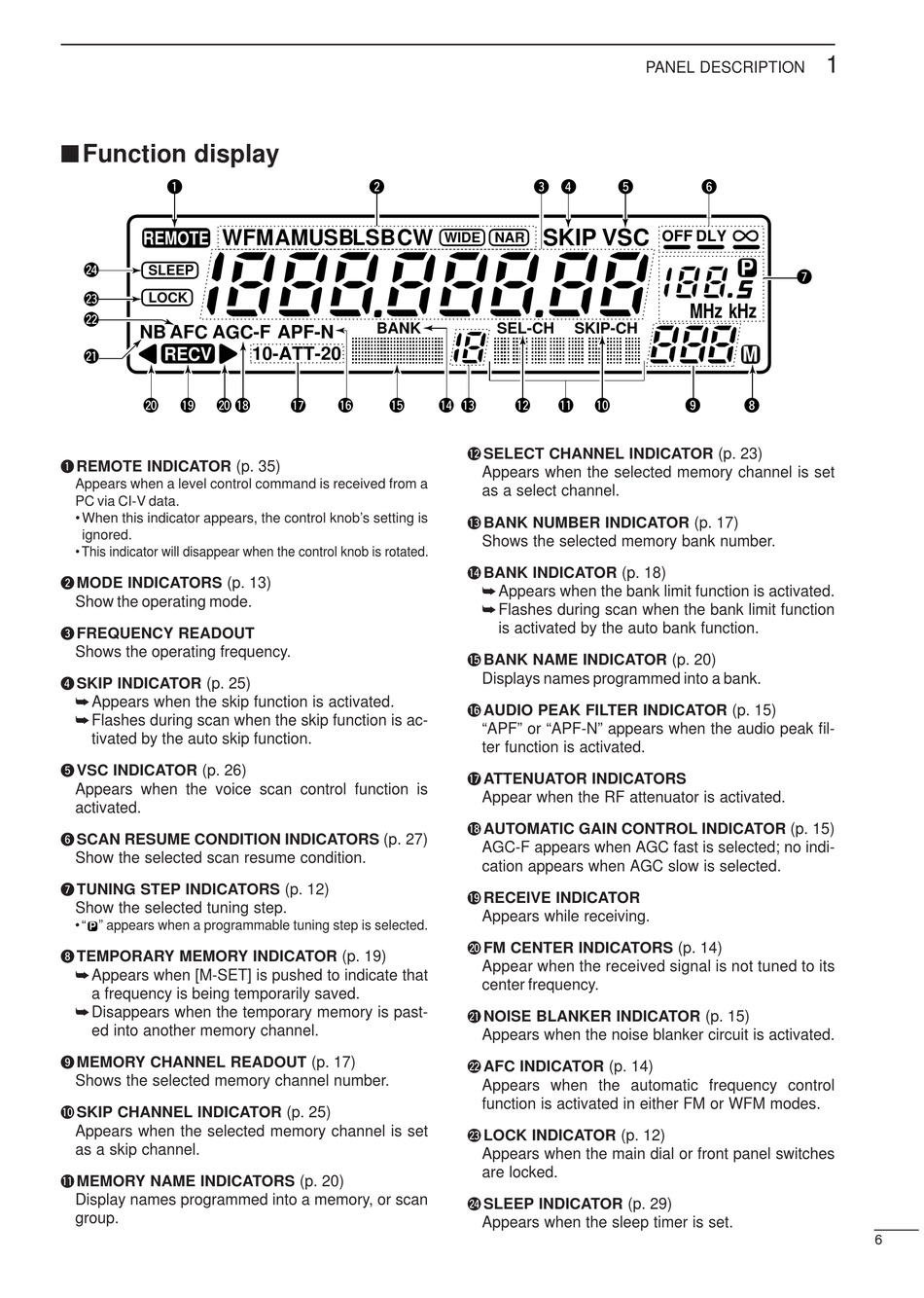

Function display

q
WFM
REMOTE
@4
SLEEP
@3
LOCK
@2
NB AFC AGC-F
@1 RECV
@0 !9 @0
q
REMOTE INDICATOR (p. 35)
Appears when a level control command is received from a
PC via CI-V data.
• When this indicator appears, the control knob's setting is
ignored.
• This indicator will disappear when the control knob is rotated.
w
MODE INDICATORS (p. 13)
Show the operating mode.
e
FREQUENCY READOUT
Shows the operating frequency.
r
SKIP INDICATOR (p. 25)
Appears when the skip function is activated.
Flashes during scan when the skip function is ac-
tivated by the auto skip function.
t
VSC INDICATOR (p. 26)
Appears when the voice scan control function is
activated.
y
SCAN RESUME CONDITION INDICATORS (p. 27)
Show the selected scan resume condition.
u
TUNING STEP INDICATORS (p. 12)
Show the selected tuning step.
• " " appears when a programmable tuning step is selected.
P
i
TEMPORARY MEMORY INDICATOR (p. 19)
Appears when [M-SET] is pushed to indicate that
a frequency is being temporarily saved.
Disappears when the temporary memory is past-
ed into another memory channel.
o
MEMORY CHANNEL READOUT (p. 17)
Shows the selected memory channel number.
!0
SKIP CHANNEL INDICATOR (p. 25)
Appears when the selected memory channel is set
as a skip channel.
!1
MEMORY NAME INDICATORS (p. 20)
Display names programmed into a memory, or scan
group.
w
AMUSBLSBCW
BANK
APF-N
10-ATT-20
!8 !7 !6 !5
e r
SKIP VSC
WIDE NAR
SEL-CH SKIP-CH
!4 !3 !2 !1 !0
!2
SELECT CHANNEL INDICATOR (p. 23)
Appears when the selected memory channel is set
as a select channel.
!3
BANK NUMBER INDICATOR (p. 17)
Shows the selected memory bank number.
!4
BANK INDICATOR (p. 18)
Appears when the bank limit function is activated.
Flashes during scan when the bank limit function
is activated by the auto bank function.
!5
BANK NAME INDICATOR (p. 20)
Displays names programmed into a bank.
!6
AUDIO PEAK FILTER INDICATOR (p. 15)
"APF" or "APF-N" appears when the audio peak fil-
ter function is activated.
!7
ATTENUATOR INDICATORS
Appear when the RF attenuator is activated.
!8
AUTOMATIC GAIN CONTROL INDICATOR (p. 15)
AGC-F appears when AGC fast is selected; no indi-
cation appears when AGC slow is selected.
!9
RECEIVE INDICATOR
Appears while receiving.
@0
FM CENTER INDICATORS (p. 14)
Appear when the received signal is not tuned to its
center frequency.
@1
NOISE BLANKER INDICATOR (p. 15)
Appears when the noise blanker circuit is activated.
@2
AFC INDICATOR (p. 14)
Appears when the automatic frequency control
function is activated in either FM or WFM modes.
@3
LOCK INDICATOR (p. 12)
Appears when the main dial or front panel switches
are locked.
@4
SLEEP INDICATOR (p. 29)
Appears when the sleep timer is set.
PANEL DESCRIPTION
t y
OFF DLY
P
MHz kHz
M
o i
1
u
6
