9

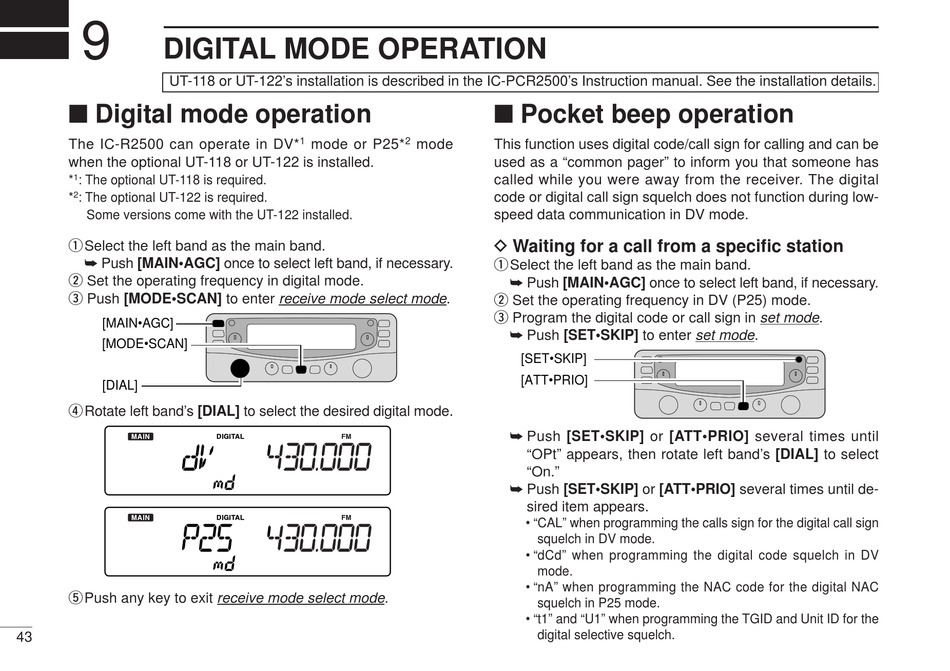

DIGITAL MODE OPERATION

UT-118 or UT-122's installation is described in the IC-PCR2500's Instruction manual. See the installation details.
■ Digital mode operation
The IC-R2500 can operate in DV*
when the optional UT-118 or UT-122 is installed.
1
* : The optional UT-118 is required.
2
* : The optional UT-122 is required.
Some versions come with the UT-122 installed.
q Select the left band as the main band.
➥ Push [MAIN•AGC] once to select left band, if necessary.
w Set the operating frequency in digital mode.
e Push [MODE•SCAN] to enter receive mode select mode.
[MAIN•AGC]
[MODE•SCAN]
[DIAL]
r Rotate left band's [DIAL] to select the desired digital mode.
tPush any key to exit receive mode select mode.
43
1 2
mode or P25* mode

■ Pocket beep operation

This function uses digital code/call sign for calling and can be
used as a "common pager" to inform you that someone has
called while you were away from the receiver. The digital
code or digital call sign squelch does not function during low-
speed data communication in DV mode.
D Waiting for a call from a specific station
q Select the left band as the main band.
➥ Push [MAIN•AGC] once to select left band, if necessary.
w Set the operating frequency in DV (P25) mode.
e Program the digital code or call sign in set mode.
➥ Push [SET•SKIP] to enter set mode.
[SET•SKIP]
[ATT•PRIO]
➥ Push [SET•SKIP] or [ATT•PRIO] several times until
"OPt" appears, then rotate left band's [DIAL] to select
"On."
➥ Push [SET•SKIP] or [ATT•PRIO] several times until de-
sired item appears.
• "CAL" when programming the calls sign for the digital call sign
squelch in DV mode.
• "dCd" when programming the digital code squelch in DV
mode.
• "nA" when programming the NAC code for the digital NAC
squelch in P25 mode.
• "t1" and "U1" when programming the TGID and Unit ID for the
digital selective squelch.
