PANEL DESCRIPTION

I Function display

q
TX
!4
TAG
WX
USA
!3
INT
CAN
q TRANSMIT INDICATOR
Appears while transmitting. (p. 8)
w BUSY INDICATOR
Appears when receiving a signal or when the squelch level
is set to the "OFF" position. (p. 8)
e CALL CHANNEL INDICATOR
Appears when the call channel is selected. (p. 9)
r LOW POWER INDICATOR
Shows that low output power is selected.
t WEATHER ALERT INDICATOR
Appears while the weather alert function is activated; blinks
when an alert tone is received.
y LOW BATTERY INDICATOR
Blinks when the battery voltage drops to approx. 6 V or
below. The attached Ni-Cd batteries require charging in this
4
w e r ty u
BUSY
CALL LOW BATT
i
ALT SCAN
o
DUAL TRI
DUP
!0
!1
!2
case.

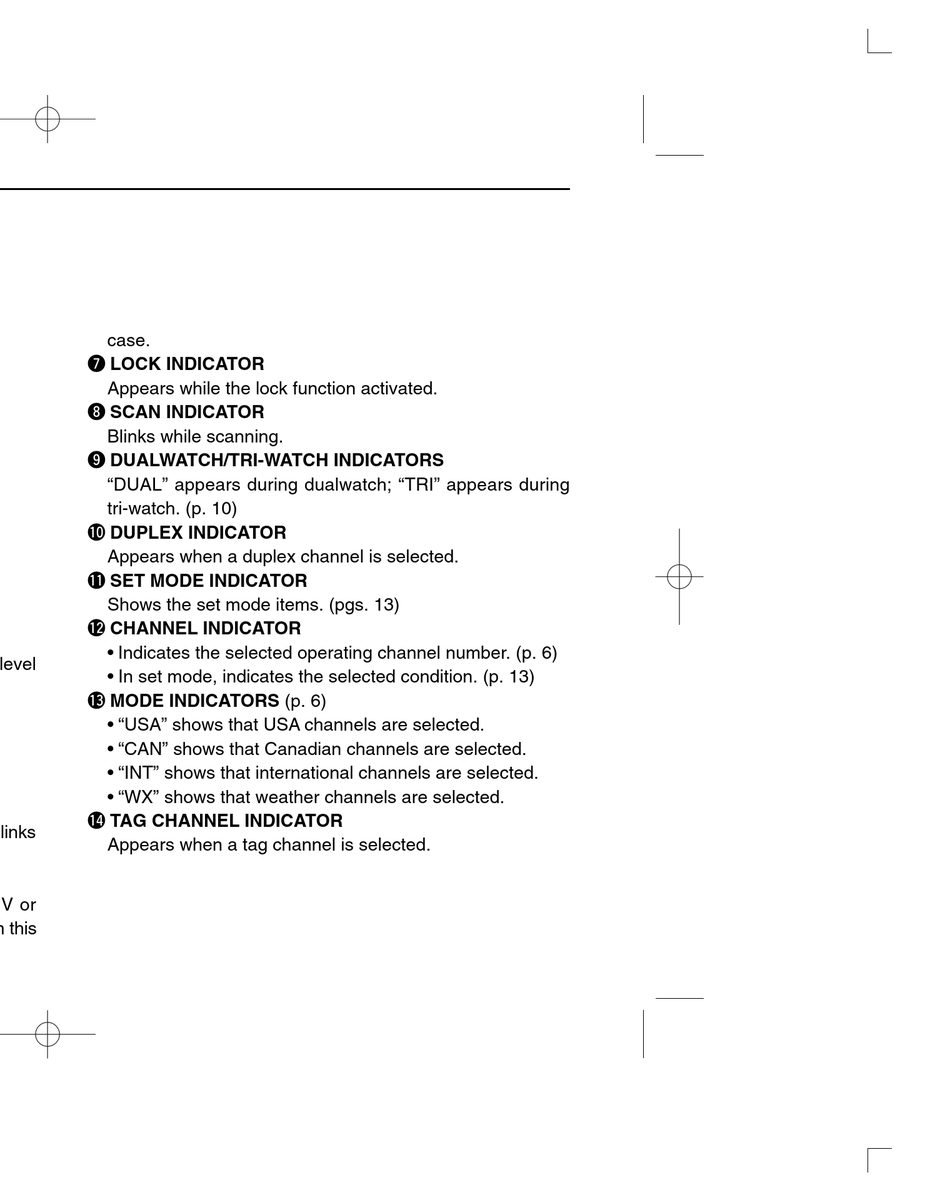

u LOCK INDICATOR
Appears while the lock function activated.
i SCAN INDICATOR
Blinks while scanning.
o DUALWATCH/TRI-WATCH INDICATORS
"DUAL" appears during dualwatch; "TRI" appears during
tri-watch. (p. 10)
!0 DUPLEX INDICATOR
Appears when a duplex channel is selected.
!1 SET MODE INDICATOR
Shows the set mode items. (pgs. 13)
!2 CHANNEL INDICATOR
• Indicates the selected operating channel number. (p. 6)
• In set mode, indicates the selected condition. (p. 13)
!3 MODE INDICATORS (p. 6)
• "USA" shows that USA channels are selected.
• "CAN" shows that Canadian channels are selected.
• "INT" shows that international channels are selected.
• "WX" shows that weather channels are selected.
!4 TAG CHANNEL INDICATOR
Appears when a tag channel is selected.
