PANEL DESCRIPTION

I Front panel

q DUALWATCH /TRI-WATCH SWITCH
[DW• ]
TRI
• Starts dualwatch when pushed momentarily.
• Starts tri-watch when pushed for 1 sec.
• Stops dualwatch/tri-watch when either is ac-
tivated.
w SQUELCH SWITCH [SQL]
• Push this switch, then set the squelch level
with the UP/DOWN [
6)
e CHANNEL 16 SWITCH [16 •
• Selects channel 16 when pushed.
• Selects the call channel when pushed for 1
sec.
• Enters call channel write mode when the
call channel is selected and this switch is
pushed for 3 sec.
r CHANNEL/WEATHER CHANNEL SWITCH
[CH/WX• ]
U/I/C
• Selects and toggles the regular channels
and weather channel when pushed momen-
tarily.
• Selects one of 3 regular channels in se-
quence when pushed for 1 sec.
2
]/[ ] switches. (p.
]
9
q
w
e
r
-
International, U.S.A. and Canadian channels
are available.

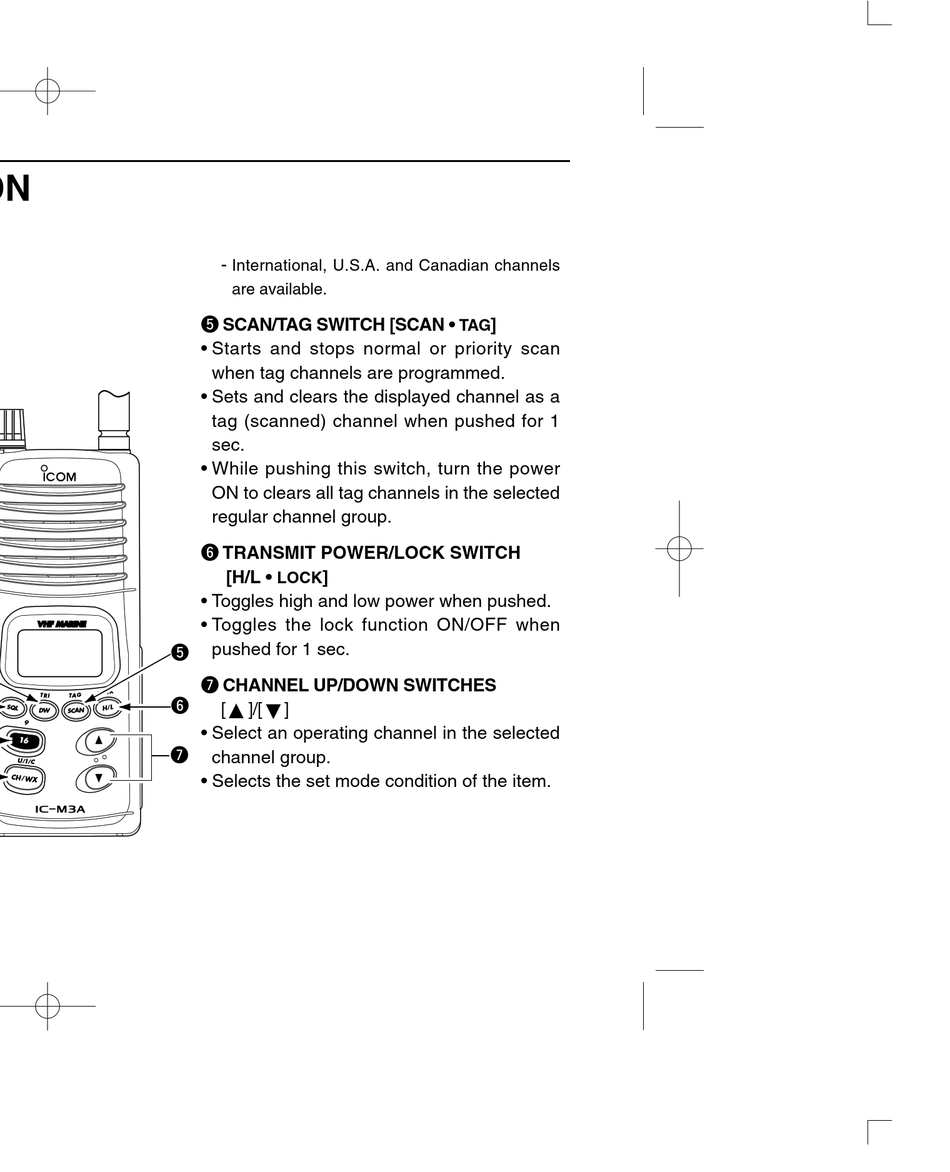

t SCAN/TAG SWITCH [SCAN •
• Starts and stops normal or priority scan
when tag channels are programmed.
• Sets and clears the displayed channel as a
tag (scanned) channel when pushed for 1
sec.
• While pushing this switch, turn the power
ON to clears all tag channels in the selected
regular channel group.
y TRANSMIT POWER/LOCK SWITCH
[H/L •
• Toggles high and low power when pushed.
• Toggles the lock function ON/OFF when
VHF MARINE
t
pushed for 1 sec.
u CHANNEL UP/DOWN SWITCHES
y
[ ]/[
• Select an operating channel in the selected
u
channel group.
• Selects the set mode condition of the item.
iM3A
]
TAG
]
LOCK
]
