Function Display - Icom IC-M2A Instruction Manual

2
PANEL DESCRIPTION

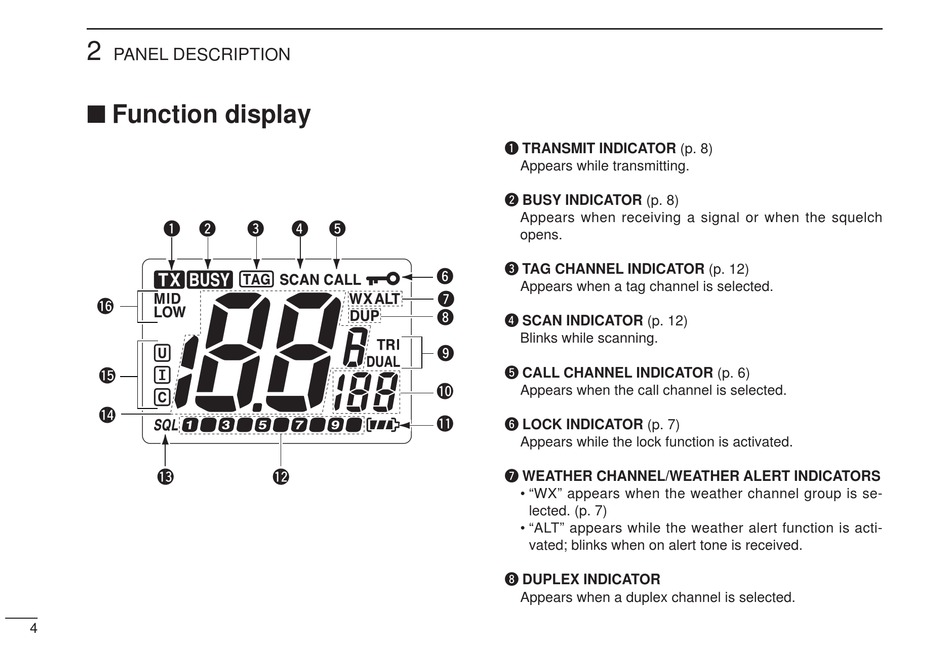

Function display

q w
!6
! 5
! 4
!3
4
e r t
!2
q TRANSMIT INDICATOR (p. 8)
Appears while transmitting.
w BUSY INDICATOR (p. 8)
Appears when receiving a signal or when the squelch
opens.
e TAG CHANNEL INDICATOR (p. 12)
y
Appears when a tag channel is selected.
u
i
r SCAN INDICATOR (p. 12)
Blinks while scanning.
o
t CALL CHANNEL INDICATOR (p. 6)
! 0
Appears when the call channel is selected.
! 1
y LOCK INDICATOR (p. 7)
Appears while the lock function is activated.
u WEATHER CHANNEL/WEATHER ALERT INDICATORS
• "WX" appears when the weather channel group is se-
lected. (p. 7)
• "ALT" appears while the weather alert function is acti-
vated; blinks when on alert tone is received.
i DUPLEX INDICATOR
Appears when a duplex channel is selected.
