Panel Description; I Front Panel - Icom IC-V8000 Instruction Manual

1

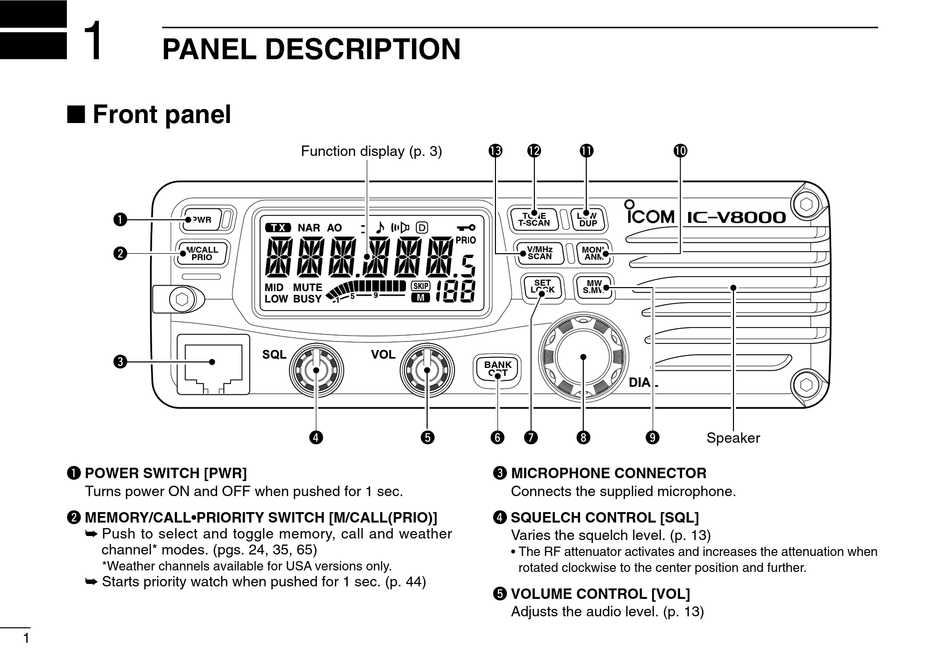

PANEL DESCRIPTION

I Front panel

q
PWR
w
M/CALL
PRIO
e
q POWER SWITCH [PWR]
Turns power ON and OFF when pushed for 1 sec.
w MEMORY/CALL•PRIORITY SWITCH [M/CALL(PRIO)]
➥ Push to select and toggle memory, call and weather
channel* modes. (pgs. 24, 35, 65)
*Weather channels available for USA versions only.
➥ Starts priority watch when pushed for 1 sec. (p. 44)
1
Function display (p. 3)
r t
!3 !2 !1
TONE LOW
T-SCAN
DUP
V/MHz
MONI
SCAN
ANM
SET MW
LOCK
S.MW
BANK
OPT
y u i o
e MICROPHONE CONNECTOR
Connects the supplied microphone.
r SQUELCH CONTROL [SQL]
Varies the squelch level. (p. 13)
• The RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further.
t VOLUME CONTROL [VOL]
Adjusts the audio level. (p. 13)
!0
Speaker
