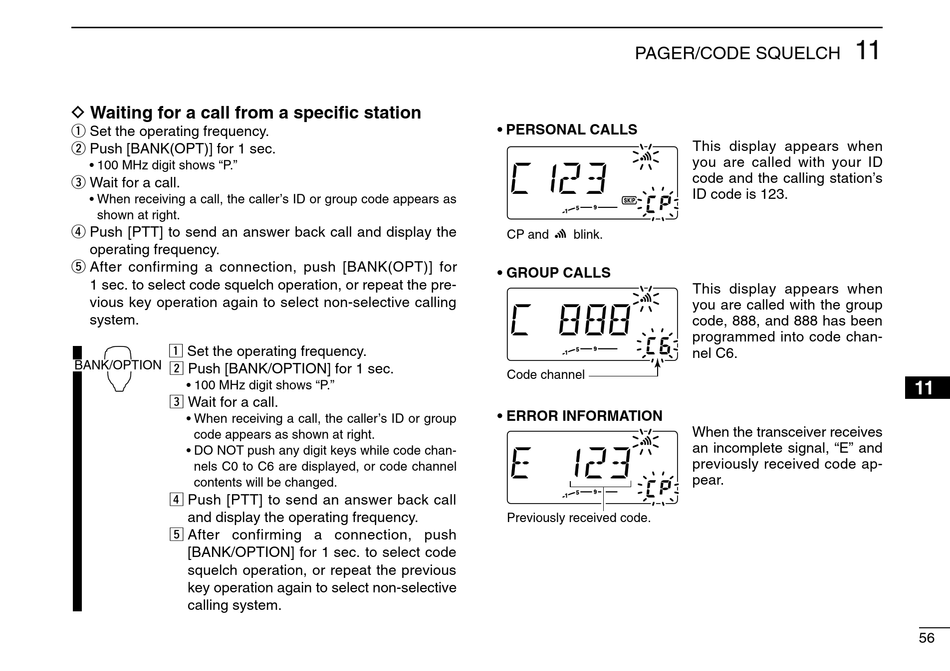

Icom IC-V8000 Instruction Manual page 67

D Waiting for a call from a specific station
q Set the operating frequency.
w Push [BANK(OPT)] for 1 sec.
• 100 MHz digit shows "P."
e Wait for a call.
• When receiving a call, the caller's ID or group code appears as
shown at right.
r Push [PTT] to send an answer back call and display the
operating frequency.
t After confirming a connection, push [BANK(OPT)] for
1 sec. to select code squelch operation, or repeat the pre-
vious key operation again to select non-selective calling
system.
z Set the operating frequency.
BANK/OPTION
x Push [BANK/OPTION] for 1 sec.
• 100 MHz digit shows "P."
c Wait for a call.
• When receiving a call, the caller's ID or group
code appears as shown at right.
• DO NOT push any digit keys while code chan-
nels C0 to C6 are displayed, or code channel
contents will be changed.
v Push [PTT] to send an answer back call
and display the operating frequency.
b After confirming a connection, push
[BANK/OPTION] for 1 sec. to select code
squelch operation, or repeat the previous
key operation again to select non-selective
calling system.
PAGER/CODE SQUELCH
• PERSONAL CALLS
CP and blink.
• GROUP CALLS
Code channel
• ERROR INFORMATION
Previously received code.
11
This display appears when
you are called with your ID
code and the calling station's
ID code is 123.
This display appears when
you are called with the group
code, 888, and 888 has been
programmed into code chan-
nel C6.
When the transceiver receives
an incomplete signal, "E" and
previously received code ap-
pear.
11
56
