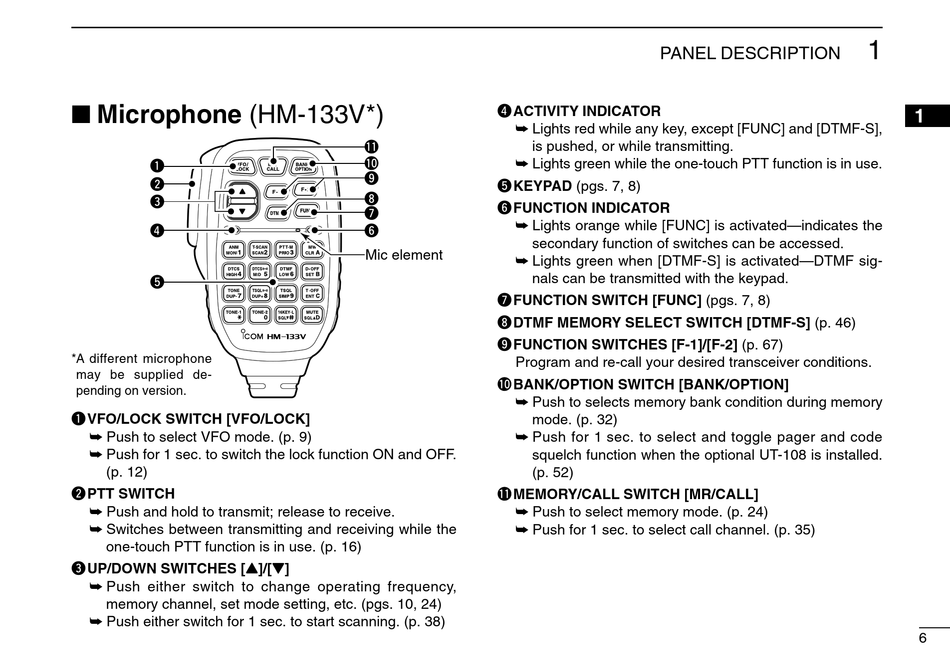

I Microphone (Hm-133V) - Icom IC-V8000 Instruction Manual

I Microphone (HM-133V*)
q
w
e
r
t
*A different microphone
may be supplied de-
pending on version.
q VFO/LOCK SWITCH [VFO/LOCK]
➥ Push to select VFO mode. (p. 9)
➥ Push for 1 sec. to switch the lock function ON and OFF.
(p. 12)
w PTT SWITCH
➥ Push and hold to transmit; release to receive.
➥ Switches between transmitting and receiving while the
one-touch PTT function is in use. (p. 16)
e UP/DOWN SWITCHES [Y]/[Z]
➥ Push either switch to change operating frequency,
memory channel, set mode setting, etc. (pgs. 10, 24)
➥ Push either switch for 1 sec. to start scanning. (p. 38)
r ACTIVITY INDICATOR
➥ Lights red while any key, except [FUNC] and [DTMF-S],
!1
is pushed, or while transmitting.
!0 ➥ Lights green while the one-touch PTT function is in use.
o
t KEYPAD (pgs. 7, 8)
i
y FUNCTION INDICATOR
u
➥ Lights orange while [FUNC] is activated—indicates the
y
secondary function of switches can be accessed.
Mic element
➥ Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
u FUNCTION SWITCH [FUNC] (pgs. 7, 8)
i DTMF MEMORY SELECT SWITCH [DTMF-S] (p. 46)
o FUNCTION SWITCHES [F-1]/[F-2] (p. 67)
Program and re-call your desired transceiver conditions.
!0 BANK/OPTION SWITCH [BANK/OPTION]
➥ Push to selects memory bank condition during memory
mode. (p. 32)
➥ Push for 1 sec. to select and toggle pager and code
squelch function when the optional UT-108 is installed.
(p. 52)
!1 MEMORY/CALL SWITCH [MR/CALL]
➥ Push to select memory mode. (p. 24)
➥ Push for 1 sec. to select call channel. (p. 35)
