CONNECTION AND MAINTENANCE

I Mounting the transceiver

The universal mounting bracket supplied with your transceiv-
er allows overhead mounting.
• Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 kg.
Flat washer
Spring washer
When using
self-tapping screws
11

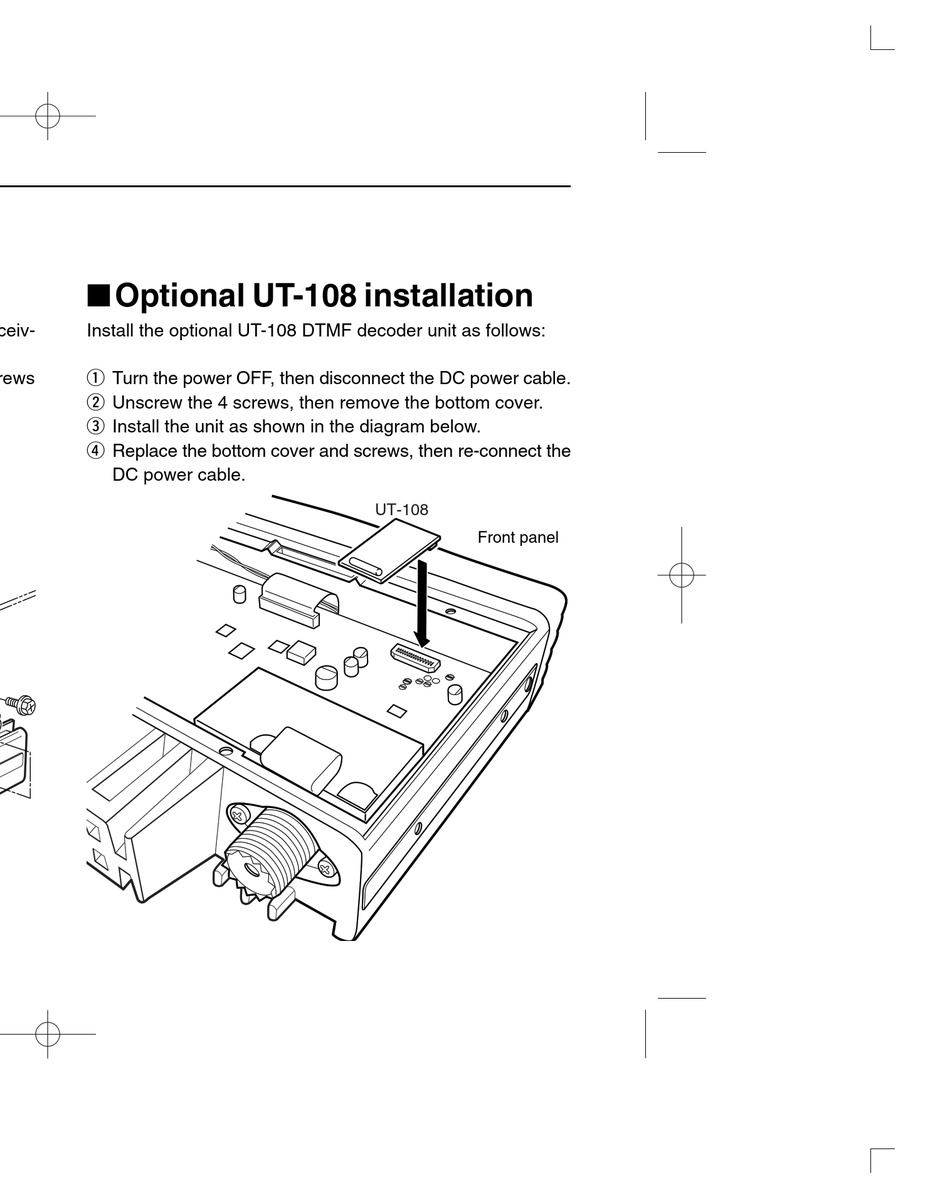

I Optional UT-108 installation

Install the optional UT-108 DTMF decoder unit as follows:
q Turn the power OFF, then disconnect the DC power cable.
w Unscrew the 4 screws, then remove the bottom cover.
e Install the unit as shown in the diagram below.
r Replace the bottom cover and screws, then re-connect the
DC power cable.
UT-108
Front panel
