D Scrambler Function; D User Set Mode - Icom IC-F111S Instruction Manual

D Scrambler function

The UT-109 (#02) or UT-110 (#02) optional voice scrambler
unit provides high performance private communication
between stations with the same scrambler codes.
q Push and hold [SCRM] to turn the scrambler function ON.
w Push [SCRM] to turn the function OFF.

D User set mode

User set mode is accessed at power ON and allows you to
set seldom-changed settings. In this case you can "cus-
tomize" transceiver operation to suit your preferences and
operating style.
Entering the user set mode:
qWhile pushing and holding [P1] and [P2], push [POWER] to
enter user set mode at power ON.
wPush and hold [P0] to enter user set mode. Push [P0]
again momentarily to select the item. The channel indicator
lights respectively to indicate the function is selected.
Available set mode functions;
• Backlight ( lights) : OFF, Dim, Auto or ON
1
• Beep ( lights) : OFF or ON
2
• SQL Level ( lights) : 0 to 255
3
• AF Min level ( lights) : 0 to 255
4

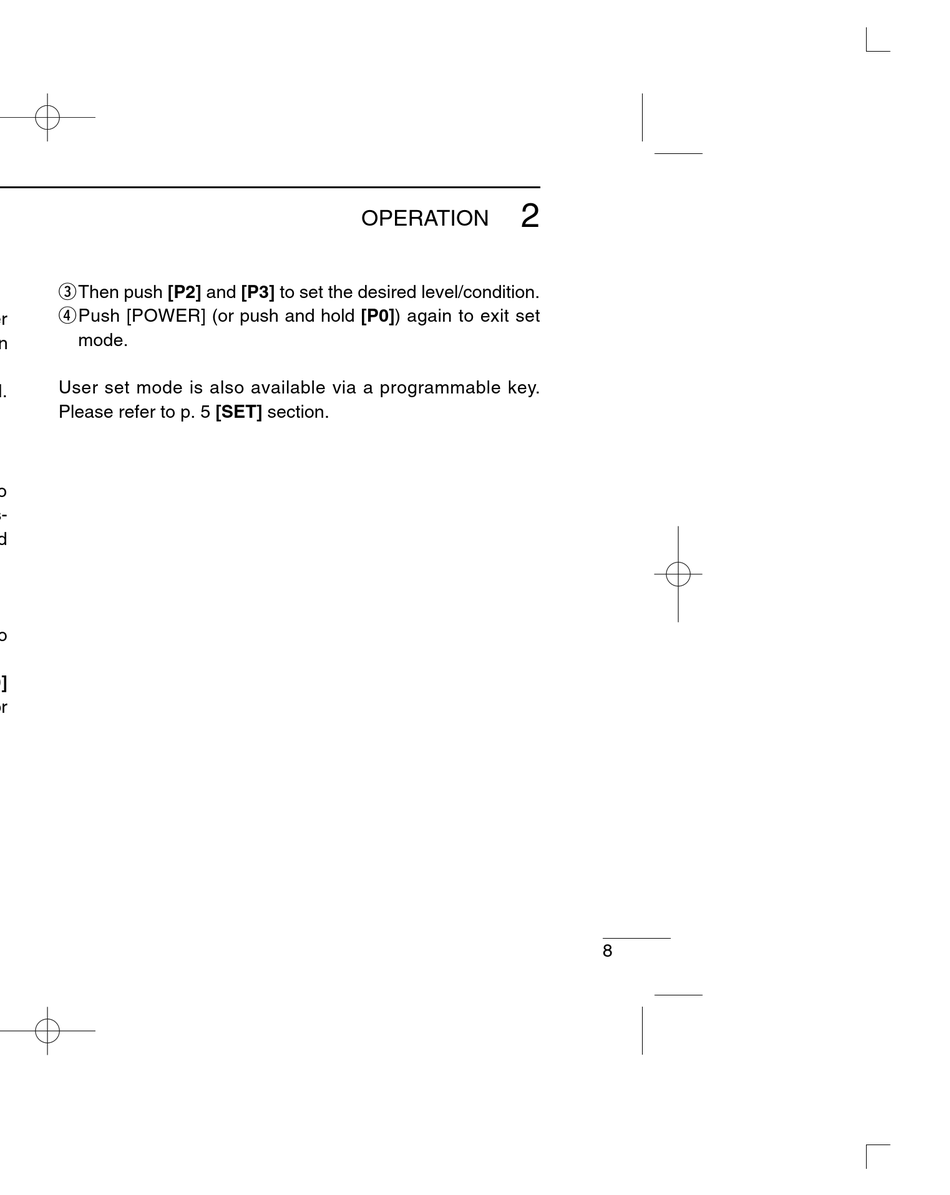

eThen push [P2] and [P3] to set the desired level/condition.
rPush [POWER] (or push and hold [P0]) again to exit set
mode.
User set mode is also available via a programmable key.
Please refer to p. 5 [SET] section.
2
OPERATION
8
