Icom IC-746PRO Instruction Manual page 23

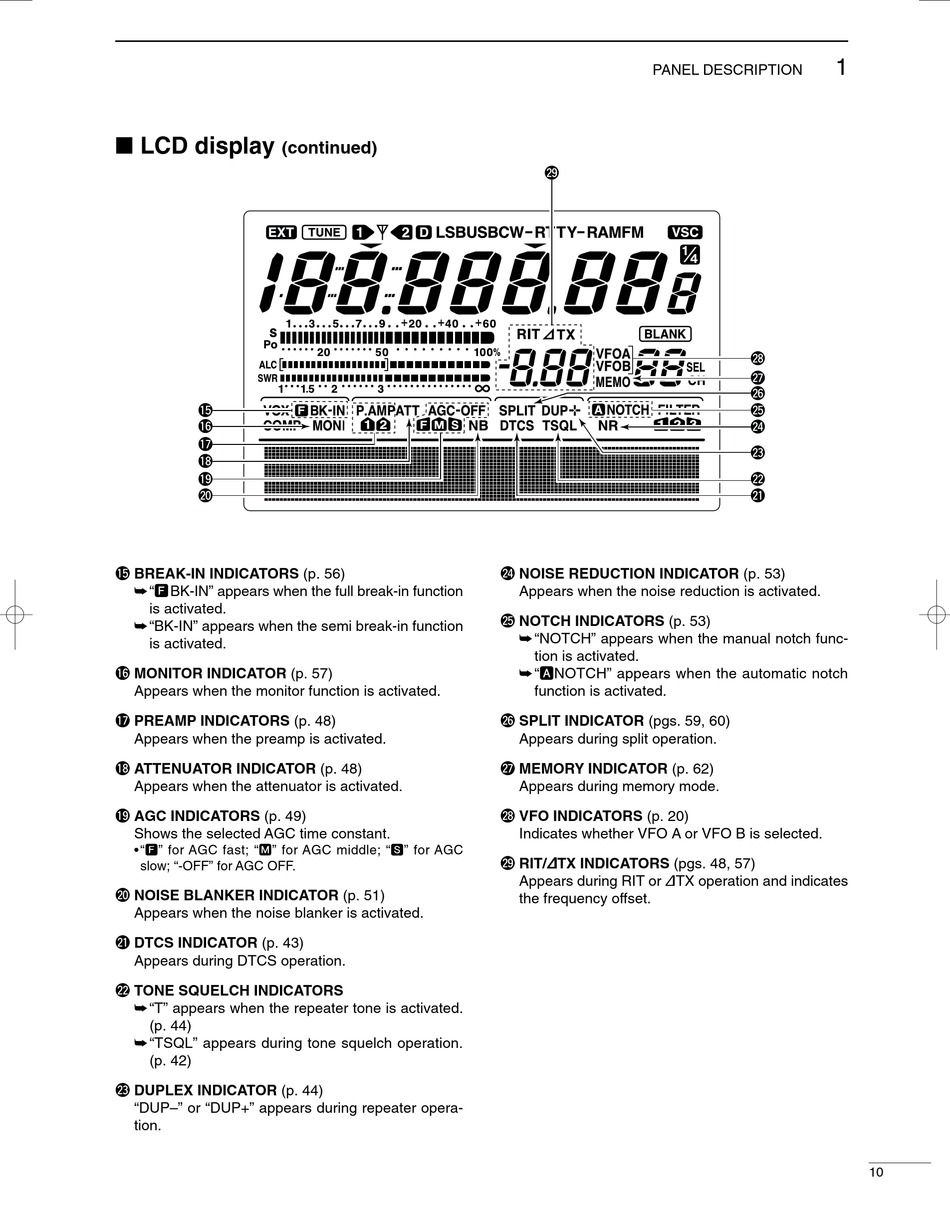

I LCD display
!5
!6
!7
!8
!9
@0
!5 BREAK-IN INDICATORS (p. 56)
➥ "F BK-IN" appears when the full break-in function
is activated.
➥ "BK-IN" appears when the semi break-in function
is activated.
!6 MONITOR INDICATOR (p. 57)
Appears when the monitor function is activated.
!7 PREAMP INDICATORS (p. 48)
Appears when the preamp is activated.
!8 ATTENUATOR INDICATOR (p. 48)
Appears when the attenuator is activated.
!9 AGC INDICATORS (p. 49)
Shows the selected AGC time constant.
• "F" for AGC fast; "M" for AGC middle; "S" for AGC
slow; "-OFF" for AGC OFF.
@0 NOISE BLANKER INDICATOR (p. 51)
Appears when the noise blanker is activated.
@1 DTCS INDICATOR (p. 43)
Appears during DTCS operation.
@2 TONE SQUELCH INDICATORS
➥ "T" appears when the repeater tone is activated.
(p. 44)
➥ "TSQL" appears during tone squelch operation.
(p. 42)
@3 DUPLEX INDICATOR (p. 44)
"DUP–" or "DUP+" appears during repeater opera-
tion.
(continued)
PANEL DESCRIPTION
@9
@4 NOISE REDUCTION INDICATOR (p. 53)
Appears when the noise reduction is activated.
@5 NOTCH INDICATORS (p. 53)
➥ "NOTCH" appears when the manual notch func-
tion is activated.
➥ "ANOTCH" appears when the automatic notch
function is activated.
@6 SPLIT INDICATOR (pgs. 59, 60)
Appears during split operation.
@7 MEMORY INDICATOR (p. 62)
Appears during memory mode.
@8 VFO INDICATORS (p. 20)
Indicates whether VFO A or VFO B is selected.
@9 RIT/∂ ∂ TX INDICATORS (pgs. 48, 57)
Appears during RIT or ∂TX operation and indicates
the frequency offset.
1
@8
@7
@6
@5
@4
@3
@2
@1
10
