USER GUIDE

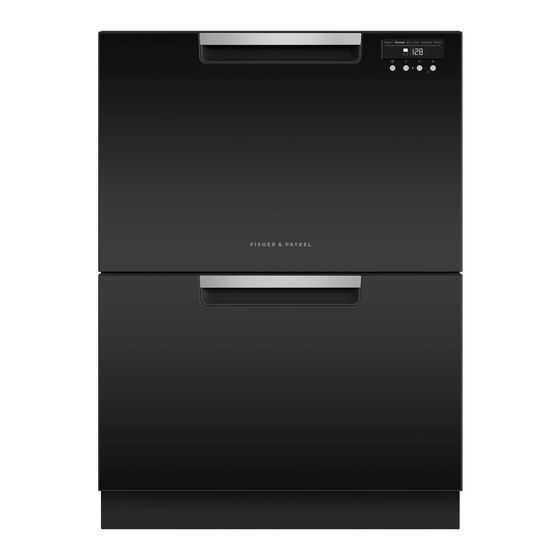

DishDrawer
TM
dishwasher
DD60DA, DD24DA, DD60SA, DD24SA,
DD60DC, DD24DC, DD60SC and DD24SC
models
NZ AU US CA GB IE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DishDrawer DD60SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher & Paykel DishDrawer DD60SA

Summary of Contents for Fisher & Paykel DishDrawer DD60SA

  • Page 1 USER GUIDE DishDrawer dishwasher DD60DA, DD24DA, DD60SA, DD24SA, DD60DC, DD24DC, DD60SC and DD24SC models NZ AU US CA GB IE...
  • Page 3 This user guide is an accompaniment to your ‘Quick start guide’ which is included with your dishwasher. For operating instructions, see your ‘Quick start guide’. If you no longer have your ‘Quick start guide’, you can download it from our local website, listed on the back cover. Refer to your ‘Quick start guide’...

  • Page 5: Table Of Contents

    CONTENTS Safety and warnings Caring for your dinnerware Operating instructions Setting wash modifiers Racking features Loading suggestions Water hardness and dishwashing Wash programs and detergent quantities Adding detergent Using rinse aid Water softener Preference options User maintenance instructions Troubleshooting If there is a fault How to attend to a fault Warranty and service Wash program data...

  • Page 6: Safety And Warnings

    SAFETY AND WARNINGS Your dishwasher has been carefully designed to operate safely during normal dishwashing procedures. Please keep the following instructions in mind when you are using your dishwasher. IMPORTANT SAFETY INSTRUCTIONS • WARNING! - When using your dishwasher, follow basic precautions, including the following: •...
  • Page 7 SAFETY AND WARNINGS • Do not touch the filter plate (in the dishwasher base) during or immediately after use, as it may be hot. • Do not operate your dishwasher unless all enclosure panels are properly in place. • Do not tamper with the controls. •...
  • Page 8 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS Installation • This dishwasher must be installed and located in accordance with the Installation instructions before it is used. If you did not receive Installation instructions with your dishwasher, you can order them by calling your Authorised Repairer or download them from our local Fisher &...
  • Page 9 SAFETY AND WARNINGS • Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket outlet box) to connect the dishwasher to the power supply. • This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
  • Page 10 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS Maintenance • Disconnect the appliance from the power supply before any cleaning or maintenance. • When disconnecting the appliance pull the plug rather than the power supply cord or junction of cord to avoid damage. •...
  • Page 11 SAFETY AND WARNINGS Operational • Under no circumstances should you open the drawer whilst the dishwasher is in operation. • Always press the button to pause and wait until you hear the four additional beeps before opening the drawer. • The dishwasher must be used with the motor assembly, filter plate, drain filter and spray arm in place.
  • Page 12 SAFETY AND WARNINGS • Household appliances are not intended to be played with by children. Children of less than 8 years old must be kept away from the appliance unless continuously supervised. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction...

  • Page 13: Caring For Your Dinnerware

    CARING FOR YOUR DINNERWARE The combination of high temperatures and dishwasher detergent may cause damage to some items if they are washed in the dishwasher. Remember, if in any doubt about any aspect concerning items washed in the dishwasher, follow the instructions from the manufacturer of the items, or wash the item by hand.

  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS SETTING WASH MODIFIERS (DD***C MODELS ONLY) Along with setting the wash programme, you may select one of the following the additional options: Extra dry: Increases the wash temperature and the length of the drying phase for ● improved drying performance. Quick: Uses additional water and energy for a faster wash time, while maintaining wash ●...
  • Page 15 SETTING WASH MODIFIERS (DD***C MODELS ONLY) Using sanitize The sanitize wash modifier adjusts the wash program to meet the conditions required by Section 6, NSF 184 for sanitization to occur. While sanitize is running, the wash program is monitored to ensure that these conditions are met.

  • Page 16: Racking Features

    RACKING FEATURES - CUTLERY BASKET To reduce the risk of injury, we ● recommend loading knives and sharp utensils with handles facing Mix spoons, knives and forks ● Removable small within each section to stop items container cutlery nesting together and to (DD***C models only) ensure the water circulates freely.
  • Page 17 RACKING FEATURES - CUTLERY BASKET Removable small items container (DD***C models only) Small, light items like baby bottle ● teats are best placed into the small items container to prevent them from being displaced during the wash. You can extend your cutlery basket ●...
  • Page 18 RACKING FEATURES - FOLDAWAY CUP RACKS Racking features will vary depending on model. Stemware notches Foldaway cup racks These notches help support long-stemmed You can fold these ● DD***C glassware. independently of each Models other. only Fold the racks away if ●...
  • Page 19 RACKING FEATURES - FOLDING TINE RACK Folding tines For optimum stability, place larger ● plates between the longer tines in the front. Fold the tines down if you need the ● space for pots or other large items. Release by pushing the small clips ●...
  • Page 20 (DD***A MODELS ONLY) RACKING FEATURES - FIXED TINE RACK Removable fixed tine plate rack This rack is your main dish rack. The tine ● spacing has been optimized for maximum wash performance of plates and bowls. Trap door Remove the rack to make space for larger items.
  • Page 21 (DD***C MODELS ONLY) RACKING FEATURES - SPACING-ADJUSTABLE TINE RACK Removable spacing-adjustable tine rack Designed to fit deep bowls ● (wide spacing) or small plates (narrow spacing), depending on adjustment. Handle To adjust the tine spacing To adjust between wide and ●...

  • Page 22: Loading Suggestions

    LOADING SUGGESTIONS When loading your drawer, make sure that you place items so that water coming from the rotating spray arms below can reach all ● areas (wash performance will be reduced if it can’t) nothing blocks the water from getting to items on the foldaway cup racks ●...

  • Page 23: Water Hardness And Dishwashing

    WATER HARDNESS AND DISHWASHING What is water hardness? Hard water is water with a high concentration of minerals such as calcium and magnesium. In soft water, this concentration is low. Water hardness varies by geographical location. How does water hardness affect dishwashing? Hard water can be detrimental to the performance of your dishwasher.

  • Page 24: Wash Programs And Detergent Quantities

    WASH PROGRAMS AND POWDERED DETERGENT QUANTITIES Find out about water hardness in your home, then use the table below to determine ● how much powdered detergent to use for each wash program. See also section ‘Water hardness and dishwashing’. For information on which program to use for your load, see your ‘Quick start guide’. ●...

  • Page 25: Adding Detergent

    ADDING DETERGENT Powdered dishwasher detergent Note: You may see other, equally suitable types of dishwasher detergent on the shelves of your supermarket. Read and follow the detergent manufacturer’s recommendations. Pour into powdered detergent dispenser Secondary powdered detergent dispenser Latch Main Powdered detergent dispenser...
  • Page 26 ADDING DETERGENT Pouch packs of Gel or Powder Note: You may see other, equally suitable types of dishwasher detergent on the shelves of your supermarket. Read and follow the detergent manufacturer’s recommendations. Place on tablet tray in cutlery basket Tablet tray If the cutlery basket is not being used for a particular load, place pack in the bottom of the drawer.
  • Page 27 ADDING DETERGENT Solid dishwasher tablets Note: You may see other, equally suitable types of dishwasher detergent on the shelves of your supermarket. Read and follow the detergent manufacturer’s recommendations. Place on tablet tray in cutlery basket Tablet tray If the cutlery basket is not being used for a particular load, place tablet in the bottom of the drawer.
  • Page 28 ADDING DETERGENT Unsuitable detergents These types of detergent are not suitable and may damage your dishwasher or lead to a service call that is not covered by warranty. IMPORTANT! Do not use these in your dishwasher! Liquid detergents ● Laundry detergents ●...

  • Page 29: Using Rinse Aid

    USING RINSE AID We recommend using liquid rinse aid regularly to give the best drying results. ● Rinse aid gives a streak-free, sparkling clean look to glass and chinaware. It also ● prevents metal from tarnishing. The rinse aid dispenser is on the inside of the drawer, underneath the detergent ●...

  • Page 30: Water Softener

    WATER SOFTENER (SOME MODELS ONLY) IMPORTANT! Only some models (those with a letter ‘H’ in the model name) have a built-in water ● softener. Models with water softener are not currently available in New Zealand and Australia. ● Models without built in water softener: ●...
  • Page 31 WATER SOFTENER (SOME MODELS ONLY) How to fill the salt reservoir 1 Open the drawer(s). 2 Unscrew the salt reservoir cap by turning anticlockwise. 3 Place the salt into the salt container and pour the contents into the salt reservoir. The salt reservoir can hold up to approximately 1 lb/0.5 kg of salt.

  • Page 32: Preference Options

    PREFERENCE OPTIONS...
  • Page 33 PREFERENCE OPTIONS...

  • Page 34: User Maintenance Instructions

    USER MAINTENANCE INSTRUCTIONS IMPORTANT! Disconnect the dishwasher from the power supply (unplug or switch off at the circuit breaker) and allow all its parts to cool before any cleaning or maintenance. Holiday time If the dishwasher is not going to be used for some time, we recommend you leave ●...
  • Page 35 USER MAINTENANCE INSTRUCTIONS Cleaning the drain filter and filter plate IMPORTANT! If a dishwasher cleaner / descaler is used, you must run a wash programme with ● detergent immediately afterward to prevent any damage to your dishwasher. The dishwasher must be used with the filter plate, drain filter and spray arm correctly ●...
  • Page 36 USER MAINTENANCE INSTRUCTIONS Removing the drain filter and filter plate to clean 3 Twist the circular drain filter anti/counter- clockwise and lift to remove. It is normal to find some water under it. 4 Remove the drain filter mesh by pinching one side only and pulling it off, as shown.
  • Page 37 USER MAINTENANCE INSTRUCTIONS Cleaning the spray arm 1 Unplug the dishwasher or turn it off at the power supply. 2 Unclip the glass supports (if fitted) from the rack wires and fold up all the foldaway cup racks, so that they are all upright and close to the top. 3 Remove the base rack carefully.

  • Page 38: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Wash program unsuitable See your ‘Quick start guide’ for a suitable Unclean dishes for the load. wash program, or the soils were too heavily baked on and dishes may need soaking. Spray arm unable to Ensure no items are obstructing the spray rotate.
  • Page 39 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Wrong type of detergent ONLY use detergents for Dishwashers. Foaming used See ‘Adding detergent’. Incorrect amount of See section ‘Wash programs and detergent detergent. quantities’ or follow the detergent manufacturer’s instructions. Too much egg in the Increase the amount of detergent.
  • Page 40 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Drawer will Childlock feature is on. Turn the Childlock off. See your not open (no Quickstart guide for instructions. beeping, no wash Closed drawer auto lock Press any button and open drawer underway) is on.
  • Page 41 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO The wash program The wash program is No action required. The program will seems to have still underway. It is in transition into a more audible phase finished (the a ‘quiet’ phase that is after the ‘quiet’...
  • Page 42 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Incorrect loading. Ensure the dishes are not nesting Dishes did not dry together. Dishes were left in the We recommend unloading the dishes drawer for several hours within a few hours after a wash program after a wash.

  • Page 43: If There Is A Fault

    IF THERE IS A FAULT How do I know if there is a fault? Your dishwasher will self-diagnose and let you know by beeping continuously and displaying a flashing fault code. Single models: If there is a fault in the drawer: The fault code will flash in the display.

  • Page 44: How To Attend To A Fault

    HOW TO ATTEND TO A FAULT START HERE Press to stop the beeping. Note down the fault code. Look up the fault in the table opposite. If it’s a ‘A’ code If it’s an ‘F’ code A1: Ensure the water supply is on, press again to clear the fault then press...
  • Page 45 HOW TO ATTEND TO A FAULT DISPLAY POSSIBLE CAUSE OF FAULT  No water – the water supply hasn’t been turned on.  Drawer cannot drain. The drainage hose may be blocked or kinked, or the connection to drainage pipe may be blocked. ...

  • Page 46: Warranty And Service

    WARRANTY AND SERVICE Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &...

  • Page 48: Wash Program Data

    WASH PROGRAM DATA For information on which program to use for your load, see your ‘Quick start guide’. Wash cycle times indicated are approximate. USA & CANADA HEAVY NORMAL FAST DELICATE RINSE (~131 MINS) (~116 MINS) (~33 MINS) (~86 MINS) (~10 MINS) main wash 150 main wash 150...
  • Page 49 WASH PROGRAM DATA For information on which program to use for your load, see your ‘Quick start guide’. Wash cycle times indicated are approximate. NEW ZEALAND & AUSTRALIA HEAVY NORMAL FAST DELICATE RINSE (~112 MINS) (~107 MINS) (~35 MINS) (~86 MINS) (~10 MINS) main wash 70 main wash 60...
  • Page 50 WASH PROGRAM DATA For information on which program to use for your load, see your ‘Quick start guide’. Wash cycle times indicated are approximate. GREAT BRITAIN & IRELAND HEAVY NORMAL FAST DELICATE RINSE (~112 MINS) (~129 MINS) (~35 MINS) (~86 MINS) (~10 MINS) main wash 70 main wash 60...

  • Page 51: Standards Tests

    STANDARDS TEST (USA AND CANADA) The dishwashers are tested to various standards for wash performance using the parameters detailed below. Rinse agent setting 5 for single models; 10 for double models Maximum place setting Fixed height setting of racks 5½” (140mm) Recommended loading pattern Top drawer...
  • Page 52 STANDARDS TEST (NEW ZEALAND AND AUSTRALIA) The dishwashers are tested to AS/NZS 2007 and AS/NZS 6400 standards for both wash and dry performance, energy and water consumption using the parameters detailed below. Normal Eco Wash program (At the end of the program, open the drawer 50 mm to improve the dry performance) 23.75g (main wash) per drawer Detergent quantity...
  • Page 53 STANDARDS TEST (GREAT BRITAIN & IRELAND) The dishwashers are tested to EN50242 standards for both wash and dry performances using the parameters detailed below. Normal Eco Wash program 8g (pre-wash) per drawer Detergent quantity 10g (main wash) per drawer Rinse aid setting Water softener setting 6 place settings per drawer Capacity...
  • Page 56 www.fi sherpaykel.com Copyright © Fisher & Paykel Appliances 2017. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
