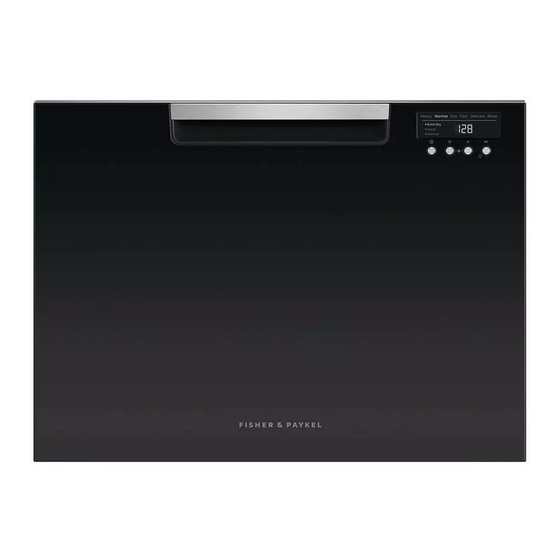

Fisher & Paykel SINGLE DISHDRAWER DD24SCT Series Installation Manual
Hide thumbs
Also See for SINGLE DISHDRAWER DD24SCT Series:
- User manual (48 pages) ,
- Installation instructions manual (20 pages) ,
- Quick start manual (2 pages)
Related Manuals for Fisher & Paykel SINGLE DISHDRAWER DD24SCT Series
Summary of Contents for Fisher & Paykel SINGLE DISHDRAWER DD24SCT Series
- Page 1 SINGLE DISHDRAWER DISHWASHER DD24SA & DD24SCT models INSTALLATION GUIDE US CA 591153B 08.17...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! Electrical Shock Hazard Installation of this dishwasher requires basic mechanical and electrical skills. ● Before installing the dishwasher, remove the house fuse or open the circuit Be sure to leave these Instructions with the Customer. ●... -
Page 3: Parts Supplied
PARTS SUPPLIED Drain hose Drain hose Wire clip (1) Clamp (1) Side mounting support (1) joiner (1) (for securing (for securing bracket kit mounting Drain hose joiner) Drain hose joiner) (A and B) (2) brackets (2) OPTIONAL OPTIONAL Phillips 1 1/2” (38mm) Rubber washer Moisture protection 5/8”... - Page 4 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION REMOVE THE DRAWER REMOVE THE ACCESS COVER & REMOVE POWER To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal.
- Page 5 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION TERMINATE MAINS WIRING AS SHOWN AND REPLACE MODULE AND COVERS Fit a suitable cable clamp for the conduit through the metal knockout. Ensure wiring is routed through or under under housing ribs. Screw down the Live, Neutral and Earth wires correctly.
-
Page 6: Product Dimensions
PRODUCT DIMENSIONS FRONT PROFILE DD24SA DD24SCT PRODUCT DIMENSIONS INCHES (MM) INCHES (MM) Overall height of product 16 1/8” (410) 17 7/8” (454) Overall width of product 23 9/16” (599) 23 9/16” (599) Overall depth of product 22 9/16” (573) 22 9/16” (573) Depth of chassis (to back of front drawer panel) 21 3/4”... -
Page 7: Cabinetry Dimensions
CABINETRY DIMENSIONS Bracket slots PLAN PROFILE DD24SA DD24SCT CABINETRY DIMENSIONS INCHES (MM) INCHES (MM) Inside height of cavity min. 16 1/4” (412) min. 18” (456) Inside width of cavity 23 5/8” (600) 23 5/8” (600) Minimum clearances from adjacent cabinetry Inside depth of cavity min. -
Page 8: Cavity Preparation
CAVITY PREPARATION IMPORTANT! The power outlet must be located in a COUNTERTOP cabinet adjacent to the dishwasher cavity. 110-120 VAC max. 15 A Moisture 3/8” protection (10mm) tape must be applied. Water Connection Recommended HOT These marks indicate (Maximum 140°F/60°C). formed bracket screw locations, if Supplied hose to suit... - Page 9 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hose - 78 1/2” (2000 mm) Drain hose - 70 1/2” (1800 mm) Inlet hose - 49” (1250 mm) Inlet hose - 64 3/4” (1650 mm) Power cord (excl.plug) - 78 1/2”...
- Page 10 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY Clip all four side mounting brackets into their slots using a flat-bladed screwdriver.
- Page 11 SECURE TO THE CABINETRY ON THE SIDES Open the drawer halfway. Using a flat bladed screwdriver, prise the grey rubber plug out of the trim moulding. Replace the grey rubber plug back into the trim moulding and ensure the trim seal is facing forward.
- Page 12 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal.
- Page 13 SECURE TO THE CABINETRY ON THE SIDES The product has three pairs of fixing points: Ensure the sound insulation is repositioned correctly. a pair of fixing two pairs of formed holes either side brackets on either side on the bottom of the chassis (use 1 1/2”...
- Page 14 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. DRAINAGE OPTION 1 Dishwasher and Ø 1 1/2” (38 mm) Standpipe Screw Drain hose support to back wall at correct height If space is limited for fixing, push hose through drain hose support to required height...
- Page 15 DRAINAGE OPTION 2 Dishwasher using Air Break with Drain Hose Joiner Secure drain hose to drain hose joiner and secure to Air Break 37 3/8” (950mm) Max. height to top of Air Break step 14 (countertop or wall mounted) min. R 8” (200mm) IMPORTANT! Ensure that drain...
- Page 16 DRAINAGE OPTION 3 Dishwasher using drain hose joiner onto sink trap/waste tee Screw Drain hose support to back wall at correct height Supplied drain hose joiner to suit Ø 3/4” (19 mm) If space is limited waste tee for fixing, push hose through drain hose support to required height...
- Page 17 CONNECT INLET HOSE TO HOT WATER SWITCH PRODUCT ON No leaks! Ensure the supplied Tighten coupling rubber washer is fitted inside the with spanner. coupling.
-
Page 18: Troubleshooting
TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an fault) ● Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arms not in place. No water supply (This is displayed as an fault) ●... -
Page 19: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawer. You should hear a Check all parts are installed. beep and see a program indicator light up on the control panel. Ensure that all panels and parts thereof are secure and final electrical tests have been Check the spray arm is in place, mounted correctly and free to rotate, by physically conducted in accordance with local electrical regulations.
