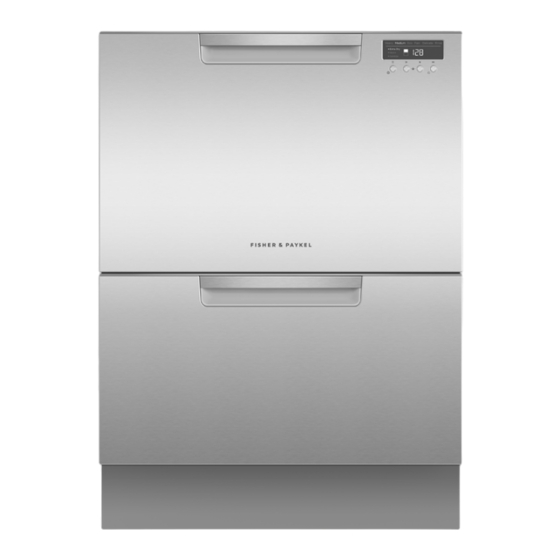

Fisher & Paykel Double DishDrawer DD60DC Installation Instructions Manual

Fisher & Paykel Double DishDrawer DD60DC Installation Instructions Manual

Hide thumbs Also See for Double DishDrawer DD60DC:

Advertisement

INSTALLATION INSTRUCTIONS
Double DishDrawer
dishwasher
TM
DD60DA & DD60DC
models
NZ AU GB IE
www.fi sherpaykel.com
591151B
08.16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Double DishDrawer DD60DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fisher & Paykel Double DishDrawer DD60DC

  • Page 1 INSTALLATION INSTRUCTIONS Double DishDrawer dishwasher DD60DA & DD60DC models NZ AU GB IE www.fi sherpaykel.com 591151B 08.16...
  • Page 3: Safety And Warnings

    SAFETY AND WARNINGS WARNING! WARNING! Electrical shock hazard Electrical shock hazard Before installing the dishwasher, WARNING- Improper connection remove the house fuse or open of the equipment-earthing the circuit breaker. conductor can result in a risk This appliance must be earthed. of electric shock.
  • Page 4: Important Safety Instructions

    SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Installation of this dishwasher requires If the dishwasher is to be relocated ● ● basic mechanical and electrical skills. from one installation to another it must Be sure to leave these Instructions with be kept upright to avoid damage from ●...
  • Page 5: Parts Supplied

    PARTS SUPPLIED Drain hose Drain hose Wire clip (2) Clamp (1) Side mounting support (1) joiner (1) (for securing (for securing bracket kit mounting Drain hose joiner) Drain hose joiner) (A and B) (2) brackets (2) OPTIONAL OPTIONAL Phillips Rubber washer Moisture protection Hexagonal DD60DA models only...
  • Page 6: Product Dimensions

    PRODUCT DIMENSIONS DD60DA MODELS DD60DC MODELS FRONT PROFILE PROFILE DD60DA DD60DC PRODUCT DIMENSIONS Overall height of product 820-880 820-880 Overall width of product Overall depth of product Depth of chassis (to back of front drawer panel) Depth of drawer front panel Height of chassis Height of drawer front panels Height of upper drawer front panel...
  • Page 7: Cabinetry Dimensions

    CABINETRY DIMENSIONS Bracket slots PLAN PROFILE DD60DA DD60DC CABINETRY DIMENSIONS Inside height of cavity* min. 820 min. 820 Inside width of cavity Minimum clearances from adjacent cabinetry Inside depth of cavity min. 560 min. 560 Recommended height of adjacent cabinet space Height of toekick space* 100-160 100-160...
  • Page 8: Cavity Preparation

    CAVITY PREPARATION IMPORTANT! BENCHTOP The power outlet must be located in a cabinet adjacent to the dishwasher cavity. Moisture 220-240 VAC min. 9.5 A 10 mm protection Water Connection tape must be applied. Recommended COLD (Maximum 60°C). 3/4“ BSP (GB20) to suit flat washer.
  • Page 9 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hoses - 2000 mm Drain hoses - 1800 mm Inlet hose - 1650 mm Inlet hose - 1250 mm Power cord (excl.plug) - 1650 mm Power cord (excl.plug) - 1650 mm...
  • Page 10 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY optionally attach the Clip all four side mounting brackets When fitting brackets, into their slots using a flat-bladed...
  • Page 11 SECURE TO THE CABINETRY ON THE SIDES OPTIONALLY SECURE TO THE CABINETRY ABOVE The top mounting Open the brackets will only drawer halfway. (x2) bend upwards a Using a flat maximum of 10 mm. bladed Replace the grey screwdriver, rubber plug back into prise the grey the trim moulding rubber plug out...
  • Page 12 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses optionally attach the Either sit the drawer down on the left two top mounting When fitting brackets, hand side (recommended) or rotate the brackets ensure the ends are...
  • Page 13 SECURE TO THE CABINETRY ON THE SIDES OPTIONALLY SECURE TO THE CABINETRY ABOVE The top mounting brackets will only (x2) bend upwards a maximum of 10 mm. For further adjustment, using the most appropriate length Hexagonal socket supplied, fully extend levelling feet up to required distance by hand.
  • Page 14 FIT THE SUPPLIED TOEKICK PANEL - DD60DA MODELS ONLY Carefully bend and snap off. min.2 mm Once the sides are removed, score/cut all the clearance way down the middle of the toekick. HEIGHT OF TOEKICK min.12 mm clearance On a board, lay the toekick on Use a file to smooth the top edges.
  • Page 15 FIT THE SUPPLIED TOEKICK PANEL - DD60DC MODELS ONLY Where the toekick Mounting rail meets the bottom of the tub is the cut-off point Lay the toekick face down on Turn the toekick over and Smooth the edges with a file. a chopping board or similiar score along the same line Be careful of sharp edges.
  • Page 16 THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. Dishwasher and Ø 38 mm Standpipe Dishwasher using drain hose joiner onto sink trap/waste tee Supplied drain hose joiner to suit If space is limited If space is limited 19 mm waste tee for fixing, push for fixing, push...
  • Page 17: Troubleshooting

    CONNECT INLET HOSE TO COLD WATER PLUG PRODUCT IN min. 10mm 3/4” BSP connector No leaks! Ensure the supplied rubber washer is Tighten coupling with spanner. fitted inside the coupling. TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an fault) ●...
  • Page 18: Final Checklist

    FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawers. You should hear a Check all parts are installed. beep and see a program indicator light up on the control panel. Ensure that all panels and parts thereof are secure and final electrical tests have been Check the spray arms are in place, mounted correctly and free to rotate, by conducted in accordance with local electrical regulations.
  • Page 20: Installation Instructions

    INSTALLATION INSTRUCTIONS Single DishDrawer dishwasher DD60SA & DD60SC models NZ AU GB IE www.fi sherpaykel.com 591151B 08.16...
  • Page 22: Safety And Warnings

    SAFETY AND WARNINGS WARNING! WARNING! Electrical shock hazard Electrical shock hazard Before installing the dishwasher, WARNING- Improper connection remove the house fuse or open of the equipment-earthing the circuit breaker. conductor can result in a risk This appliance must be earthed. of electric shock.
  • Page 23 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Installation of this dishwasher requires If the dishwasher is to be relocated ● ● basic mechanical and electrical skills. from one installation to another it must Be sure to leave these Instructions with be kept upright to avoid damage from ●...
  • Page 24 PARTS SUPPLIED Drain hose Drain hose Wire clip (1) Clamp (1) Side mounting support (1) joiner (1) (for securing (for securing bracket kit mounting Drain hose joiner) Drain hose joiner) (A and B) (2) brackets (2) OPTIONAL OPTIONAL Phillips 38 mm Rubber washer Moisture protection 16 mm...
  • Page 25 PRODUCT DIMENSIONS FRONT PROFILE DD60SA DD60SCT DD60SC PRODUCT DIMENSIONS Overall height of product Overall width of product Overall depth of product Depth of chassis (to back of front drawer panel) Depth of drawer front panel Height of drawer front panel Height of chassis Height from top of drawer front panel to top of chassis Ventilation gap below drawer front panel...
  • Page 26 CABINETRY DIMENSIONS Bracket slots PLAN PROFILE DD60SA DD60SCT DD60SC CABINETRY DIMENSIONS Inside height of cavity min. 412 min. 456 Minimum clearances from adjacent cabinetry Inside width of cavity Inside depth of cavity min. 560 min. 560 Cavity height options allow you to match dishwasher with your cabinetry or companion products DD60SA/SC DD60SCT (Standard height models)
  • Page 27 CAVITY PREPARATION IMPORTANT! The power outlet must be located in a BENCHTOP cabinet adjacent to the dishwasher cavity. 220-240 VAC min. 4.8 A Moisture 10 mm protection tape must be applied. Water Connection Recommended COLD (Maximum 60°C). These marks indicate formed bracket screw 3/4“...
  • Page 28 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hoses - 1800 mm Drain hose - 2000 mm Inlet hose - 1650 mm Inlet hose - 1250 mm Power cord (excl.plug) - 2000 mm Power cord (excl.plug) - 2000 mm...
  • Page 29 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY Clip all four side mounting brackets into their slots using a flat-bladed screwdriver.
  • Page 30 SECURE TO THE CABINETRY ON THE SIDES Open the drawer halfway. Using a flat bladed screwdriver, prise the grey rubber plug out of the trim moulding. Replace the grey rubber plug back into the trim moulding and ensure the trim seal is facing forward.
  • Page 31 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal.
  • Page 32 SECURE TO THE CABINETRY ON THE SIDES The product has three pairs of fixing points: Ensure the sound insulation is repositioned correctly. a pair of fixing two pairs of formed holes either side brackets on either side on the bottom of the chassis (use 38 mm fixing (use 16 mm screws)
  • Page 33 THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. Dishwasher and Ø 38 mm Standpipe Dishwasher using drain hose joiner onto sink trap/waste tee Supplied drain hose joiner to suit If space is limited If space is limited 19 mm waste tee for fixing, push for fixing, push...
  • Page 34 CONNECT INLET HOSE TO COLD WATER PLUG PRODUCT IN min. 10mm 3/4” BSP connector No leaks! Ensure the supplied rubber washer is fitted inside the coupling. Tighten coupling with spanner.
  • Page 35 TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an fault) ● Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arm not in place. No water supply.
  • Page 36 FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawer. You should hear a Check all parts are installed. beep and see a program indicator light up on the control panel. Ensure that all panels and parts thereof are secure and final electrical tests have been Check the spray arms are in place, mounted correctly and free to rotate, by conducted in accordance with local electrical regulations.
