Summary of Contents for Keysight Technologies U9422A
- Page 1 Keysight U9422A/ B/ C and U9424A/ B/ C FET Solid State Switch Module Startup and Service Guide...
- Page 2 TERMS IN THE SEPARATE www.keysight.com/ find/ USBSwitch agreement and written consent from AGREEMENT WILL CONTROL. (product- specific information and Keysight Technologies as governed by support, software and documentation United States and international Technology Licenses updates) copyright laws.
-
Page 3: Safety Considerations
Safety Considerations – DO NOT operate the product in an explosive atmosphere or in the WARNING presence of flammable gases or fumes. – DO NOT perform procedures involving cover or shield removal unless you are qualified to do so: Operating personnel must not remove equipment covers or shields. -
Page 4: Regulatory Markings
Regulatory Markings The CE mark is a registered trademark of the European Community. The CE mark shows that the product complies with all the relevant European Legal This Keysight CCR (Customer Directives. Compliance Response) email ID is CAN ICES/ NMB- 001 indicates that this for manufacturer identification and ISM device complies with the indicates that the product... -
Page 5: South Korean Class A Emc Declaration
South Korean Class A EMC Declaration Information to the user: This equipment has been conformity assessed for use in business environments. In a residential environment, this equipment may cause radio interference. – This EMC statement applies to the equipment only for use in business environment. - Page 6 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U9422x and U9424x Startup and Service Guide...
-
Page 7: Table Of Contents
Table of Contents Safety Considerations ........3 Regulatory Markings . - Page 8 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U9422x and U9424x Startup and Service Guide...
- Page 9 List of Figures Figure 1- 1 Keysight Connection Expert interface ... . .19 Figure 1- 2 Connect to Instrument Dialog ....20 Figure 1- 3 SFP Verification .
- Page 10 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U9422x and U9424x Startup and Service Guide...
- Page 11 List of Tables Table 1- 1 Product Model Description .....14 Table 1- 2 System Requirements ......17 Table 2- 1 U9422x and U9424x Environmental Specifications .
- Page 12 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U9422x and U9424x Startup and Service Guide...
- Page 13 Keysight U9422A/ B/ C and U9424A/ B/ C Startup and Service Guide Getting Started Introduction Step 1: Unpack and Inspect the U9422x/ U9424x Switch Module Step 2: Install the Software Step 3: Connect and Verify the U9422x/ U9424x Operation...
-
Page 14: Getting Started
U9422x/ U9424x switch module, installing the required software, and verifying basic switch operations. If you have any inquiries after reviewing this information, contact your local Keysight Technologies representative or contact us through our website at www.keysight.com/ find/ USBSwitch. -
Page 15: Step 1: Unpack And Inspect The U9422X/ U9424X Switch Module
Getting Started Step 1: Unpack and Inspect the U9422x/ U9424x Switch Module The switch module is shipped in a material that prevents it from static CAUTION damage. The switch module should only be removed from the packaging in an anti- static area ensuring that correct anti- static precautions are taken. Store the switch module in an anti- static envelope when not in use. -
Page 16: Return For Service
– Name and address of owner. A P.O. box is not acceptable as a return address. – Product model number (for example, U9422A) – Product serial number (for example, MYXXXXXXXX). The serial number label is located on the back panel of the switch module. The serial number can also be viewed from the Soft Front Panel interface, but only after the software is installed. -
Page 17: Step 2: Install The Software
Getting Started Step 2: Install the Software System Requirements Prior to any installation or configuration, ensure that the following system requirements are met: System Requirements Table 1- 2 Windows 7 (32- bit and 64- bit) Starter, Home Basic, Home Premium, Professional, Ultimate, Enterprise Operating System Windows 10... -
Page 18: Install The Software
Getting Started Install the Software The U9422x/ U9424x software is available for download at www.keysight.com/ find/ USBswitch. The latest version of Keysight IO Libraries Suite (which includes the Keysight NOTE Connection Expert) can be downloaded from www.keysight.com/ find/ iosuitedownload . The Keysight Instrument Control DVD, with the above software, is no longer shipped with Keysight instruments. -
Page 19: Step 3: Connect And Verify The U9422X/ U9424X Operation
Getting Started Step 3: Connect and Verify the U9422x/ U9424x Operation The following procedure helps you to verify that the newly installed U9422x/ U9424x switch module is operating correctly. 1 Connect the switch module to the PC. 2 Run Keysight Connection Expert (from the desktop icon, or from Start > All Programs >... -
Page 20: Figure 1- 2 Connect To Instrument Dialog
Getting Started 3 Launch the soft front panel (SFP) software from Start > All Programs > Keysight > U942x USB Switch > U942x USB Switch SFP . 4 On the Connect to Instrument dialog shown in Figure 1- 2, click to select a connected switch for use. -
Page 21: Figure 1- 3 Sfp Verification
Getting Started To verify that the U9422x/ U9424x switch module is working properly, click the desired port as shown in Figure 1- It is also possible to change the ports of the switch module using the NOTE OUTPut:PORT SCPI command. You can further verify the U9422x/ U9424x switch module to check if a port is connected using a network analyzer to perform RF measurement. - Page 22 Getting Started THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U9422x and U9424x Startup and Service Guide...
- Page 23 Keysight U9422A/ B/ C and U9424A/ B/ C Startup and Service Guide Specifications Environmental Specifications Physical Specifications This chapter provides you the environmental specifications of the U9422x/ U9424x switch module.
-
Page 24: Specifications
Specifications Environmental Specifications Keysight U9422x/ U9424x switch module is designed to fully comply with Keysight Technologies’ product operating environmental specifications as shown in the table below. Table 2- 1 U9422x and U9424x Environmental Specifications Temperature – Operating 0°C to +55°C –40 °... -
Page 25: Physical Specifications
U9422x and U9424x switch modules respectively. U9422x/ U9424x Weight Table 2- 2 Model number Weight U9422A (USB/ Interconnect for multi- port 107.4 gms (0.236 lbs) configuration with PXIe and USB VNA) U9422A (Solder connector) 72.0 gms (0.158 lbs) U9422B (USB/ Interconnect for multi- port 110 gms (0.242 lbs) - Page 26 U9422x/ U9424x Dimensions Model number Dimensions U9422x (USB/ Interconnect for 82.2 mm H x 64.5 mm W x 23.0 mm D (except U9422A: 85.0 mm H x 70.2 mm W x multi- port configuration with 23.0 mm D) PXIe and USB VNA) 67.7 mm H x 64.5 mm W x 23.0 mm D (except U9422A: 70.5 mm H x 70.2 mm W x...
-

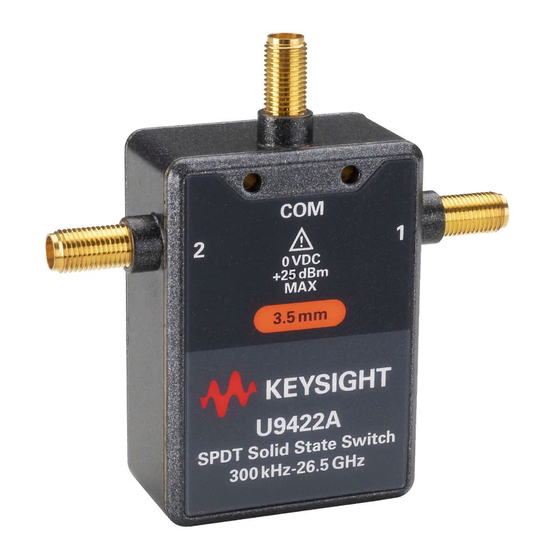

Page 27: Figure 2- 1 U9422X Switch Module
Specifications Figure 2- 1 U9422x Switch Module Figure 2- 2 U9424x Switch Module For the detailed characteristics and specifications of the Keysight U9422x and NOTE U9424x switch modules, refer to the Technical Overview document at www.keysight.com/ my/ en/ assets/ 3120- 1110/ technical- overviews/ U942xA- B- C- FET- SS- Switches- Technical- Overview.pdf Keysight U9422x and U9424x Startup and Service Guide... - Page 28 Specifications THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U9422x and U9424x Startup and Service Guide...
- Page 29 Keysight U9422A/ B/ C and U9424A/ B/ C Startup and Service Guide Service and Maintenance Service Maintenance...
-
Page 30: Service And Maintenance
Service and Maintenance Service The U9422x/ U9424x switch module does not have internal adjustments and should only be repaired by service- trained personnel. Should it become necessary to return the U9422x and U9424x for repair or service, contact your nearest Keysight Service Center. - Page 31 Service and Maintenance Keep isopropyl alcohol away from heat, sparks, and flame. Store it in a tightly WARNING closed container. It is extremely flammable. In case of fire, use alcohol foam, dry chemicals, or carbon dioxide; water may be ineffective. Use isopropyl alcohol with adequate ventilation and avoid contact with eyes, skin, and clothing.
-
Page 32: Make Good Connections
Service and Maintenance Make Good Connections Good connections require a skilled operator. The most common cause of measurement error is bad connections. The following procedures explain how to make good connections. Make a Preliminary Connection 1 Ground yourself and all devices. Wear a grounded wrist strap and work on a grounded, conductive table mat. -
Page 33: Figure 3- 1 Wrench Positions
Service and Maintenance Make the Final Connection Using a Torque Wrench 1 Use a torque wrench to make the final connection. The table below provides information about the torque wrench. Using the torque wrench guarantees that the connection is not too tight, preventing possible connector damage. It also ensures that all connections are equally tight each time. -
Page 34: Figure 3- 2 Using The Torque Wrench
Service and Maintenance 4 Hold the torque wrench lightly, at the end of the handle only (beyond the groove). Refer to Figure 3- Torquing direction Stop when handle begins to yield Figure 3- 2 Using the Torque Wrench 5 Apply downward force perpendicular to the wrench handle. Refer to Figure 3- 2. - Page 35 Service and Maintenance Separate a Connection To avoid lateral (bending) force on the connector mating plane surface, always support the devices and connections. Turn the connector nut, not the device body. Major damage to the center CAUTION conductor can occur if the device is twisted. 1 Use an open- end wrench to prevent the device body from turning.
- Page 36 Service and Maintenance THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U9422x and U9424x Startup and Service Guide...
- Page 37 This information is subject to change without notice. Always refer to the English version at the Keysight website for the latest revision. © Keysight Technologies 2021 Edition 1, November 30, 2021 U9422- 90001 www.keysight.com...
