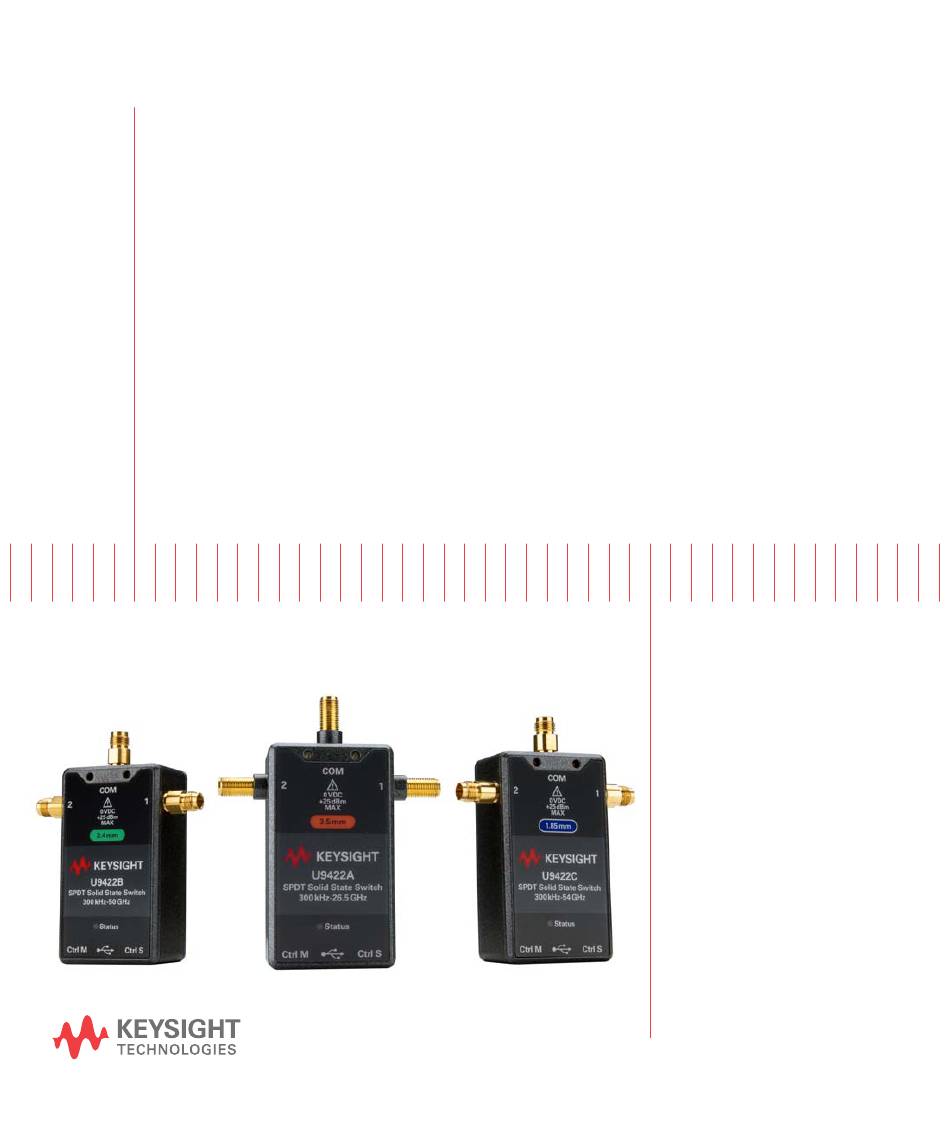

- Page 1 Keysight U9422A/B/C, U9424A/B/C and U9428A/B/C FET Solid State Switch Module Startup and Service Guide...
- Page 2 TERMS IN THE SEPARATE www.keysight.com/find/USBSwitch agreement and written consent from AGREEMENT WILL CONTROL. (product-specific information and Keysight Technologies as governed by support, software and documentation Technology Licenses United States and international updates) copyright laws. The hardware and/or software www.keysight.com/find/assist...
-
Page 3: Safety Considerations
Safety Considerations – DO NOT operate the product in an explosive atmosphere or in the WARNING presence of flammable gases or fumes. – DO NOT perform procedures involving cover or shield removal unless you are qualified to do so: Operating personnel must not remove equipment covers or shields. -
Page 4: Regulatory Markings
Regulatory Markings The CE mark is a registered trademark of the European Community. The CE mark shows that the product complies with all the relevant European Legal This Keysight CCR (Customer Directives. Compliance Response) email ID is CAN ICES/NMB-001(A) indicates that for manufacturer identification and this ISM device complies with the indicates that the product... -
Page 5: South Korean Class A Emc Declaration
South Korean Class A EMC Declaration Information to the user: This equipment has been conformity assessed for use in business environments. In a residential environment, this equipment may cause radio interference. – This EMC statement applies to the equipment only for use in business environment. - Page 6 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U9422x, U9424x and U9428x Startup and Service Guide...
-
Page 7: Table Of Contents
Table of Contents Safety Considerations ........3 Regulatory Markings . - Page 8 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U9422x, U9424x and U9428x Startup and Service Guide...
-
Page 9: List Of Figures
......22 Figure 1-4 U9422A Solder Wire Connection ....23... - Page 10 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U9422x, U9424x and U9428x Startup and Service Guide...
-
Page 11: List Of Tables
......25 Table 1-7 U9422A Logic States (Ctrl M of VNA to Ctrl S of switch module) . - Page 12 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U9422x, U9424x and U9428x Startup and Service Guide...
- Page 13 Keysight U9422A/B/C, U9424A/B/C and U9428A/B/C Startup and Service Guide Getting Started Introduction Step 1: Unpack and Inspect the U9422x/U9424x/U9428x Module Step 2: Install the Software (for USB Connection Only) Step 3: Connect and Verify the U9422x/U9424x/U9428x Operation...
-
Page 14: Getting Started
Product Model Description Table 1-1 Product Model Description Model Description Connector Type U9422A Solid State 1x2 Switch Module, DC - 26.5 GHz 3.5 mm U9422B Solid State 1x2 Switch Module, DC - 50 GHz 2.4 mm U9422C Solid State 1x2 Switch Module, DC - 54 GHz 1.85 mm... -
Page 15: Step 1: Unpack And Inspect The U9422X/U9424X/U9428X Module
Getting Started Step 1: Unpack and Inspect the U9422x/U9424x/U9428x Module The switch module is shipped in a material that prevents it from static CAUTION damage. The switch module should only be removed from the packaging in an anti-static area ensuring that correct anti-static precautions are taken. Store the switch module in an anti-static envelope when not in use. -
Page 16: Return For Service
– Name and address of owner. A P.O. box is not acceptable as a return address. – Product model number (for example, U9422A) – Product serial number (for example, MYXXXXXXXX). The serial number label is located on the back panel of the switch module. The serial number can also be viewed from the Soft Front Panel interface, but only after the software is installed. -
Page 17: Verify The U9422X/U9424X/U9428X Shipment Contents
PXIe and USB VNA, M9800-61622 2 meter [a] This item is available with Option 101 (for U9422A/B/C). [b] This item is available with Option 101 (for U9424A/B/C). [c] This item is available with Option 101 (for U9428A/B/C). [d] This item is available with Option 201. -
Page 18: Step 2: Install The Software (For Usb Connection Only)
Getting Started Step 2: Install the Software (for USB Connection Only) System Requirements Prior to any installation or configuration, ensure that the following system requirements are met: Table 1-3 System Requirements Windows 7 (32-bit and 64-bit) Starter, Home Basic, Home Premium, Professional, Ultimate, Enterprise Operating System Windows 10... -
Page 19: Install The Software
Getting Started Install the Software The U9422x/U9424x/U9428x software is available for download at www.keysight.com/find/USBswitch. The latest version of Keysight IO Libraries Suite (which includes the Keysight NOTE Connection Expert) can be downloaded from www.keysight.com/find/iosuitedownload. The Keysight Instrument Control DVD, with the above software, is no longer shipped with Keysight instruments. If you require a Keysight Instrument Control DVD, it can be ordered by contacting your local Keysight Customer Contact Center. -
Page 20: Step 3: Connect And Verify The U9422X/U9424X/U9428X Operation
Getting Started Step 3: Connect and Verify the U9422x/U9424x/U9428x Operation The following procedures helps you to verify that the newly installed U9422x/ U9424x/U9428x switch module is operating correctly. Using USB Connection 1 Connect the switch module to the PC using the USB Cable (PN: P9375-60010/ 8121-3431). -
Page 21: Figure 1-2 Connect To Instrument Dialog
Getting Started 3 Launch the soft front panel (SFP) software from Start > All Programs > Keysight > U942x USB Switch > U942x USB Switch SFP. 4 On the Connect to Instrument dialog shown in Figure 1-2, click to select a connected switch for use. -
Page 22: Using Solder Wire Connection
Getting Started You can further verify the U9422x/U9424x/U9428x switch module to check if a port is connected using a network analyzer to perform RF measurement. Figure 1-3 SFP Verification Using Solder Wire Connection 1 Connect V and GND wires of the solder wire cable assembly (PN: U9422-60007/U9424-60007/U9428-60001) to the supply voltage (5V) and ground respectively. -
Page 23: Figure 1-4 U9422A Solder Wire Connection
Table 1-5 Table 1-6 for U9422A/B/C, U9424A/ B/C and U9428A/B/C FET solid state switch modules respectively. Figure 1-4 U9422A Solder Wire Connection Table 1-4 U9422A Logic States CTRL Logic RF Port Keysight U9422x, U9424x and U9428x Startup and Service Guide... -
Page 24: Figure 1-5 U9424B Solder Wire Connection
Getting Started Figure 1-5 U9424B Solder Wire Connection Table 1-5 U9424B Logic States CTRL1 Logic CTRL2 Logic RF Port Keysight U9422x, U9424x and U9428x Startup and Service Guide... -
Page 25: Figure 1-6 U9428C Solder Wire Connection
Getting Started Figure 1-6 U9428C Solder Wire Connection Table 1-6 U9428C Logic States CTRL1 Logic CTRL2 Logic CTRL3 Logic RF Port Keysight U9422x, U9424x and U9428x Startup and Service Guide... -
Page 26: Using Multi-Port Configuration Port Connection
2 The switch module reads the control logic (edge trigger) from the VNA ports and toggles RF path on the U9422A/B/C, U9424A/B/C and U9428A/B/C switch modules accordingly. For information on how to select the desired RF path using VNA SCPI commands and logic controls, refer to U9422x/U9424x/... -
Page 27: Figure 1-7 U942Xa/B/C Multi-Port Configuration Port Connection
Getting Started Figure 1-7 U942xA/B/C Multi-port Configuration Port Connection Table 1-7 U9422A Logic States (Ctrl M of VNA to Ctrl S of switch module) Ctrl S Control Logic 1 Control Logic 2 RF Port VNA SCPI Command CONT:SIGN:KDMI:MAIN3:FUNC LOW CONT:SIGN:KDMI:MAIN3:FUNC HIGH... -
Page 28: Table 1-8 U9422A Logic States (Ctrl S Of Vna To Ctrl M Of Switch Module)
Getting Started Table 1-8 U9422A Logic States (Ctrl S of VNA to Ctrl M of switch module) Ctrl M Control Logic 1 Control Logic 2 RF Port VNA SCPI Command CONT:SIGN:KDMI:SUB3:FUNC LOW CONT:SIGN:KDMI:SUB3:FUNC HIGH Table 1-9 U9424B Logic States (Ctrl M of VNA to Ctrl S of switch module) -
Page 29: Table 1-11 U9428C Logic States
Getting Started Table 1-11 U9428C Logic States (Ctrl M of VNA to Ctrl S of switch module) Ctrl S Control Logic 1 Control Logic 2 Control Logic 3 RF Port VNA SCPI Command CONT:SIGN:KDMI:MAIN2:FUNC LOW CONT:SIGN:KDMI:MAIN3:FUNC LOW CONT:SIGN:KDMI:MAIN4:FUNC LOW CONT:SIGN:KDMI:MAIN2:FUNC LOW CONT:SIGN:KDMI:MAIN3:FUNC HIGH CONT:SIGN:KDMI:MAIN4:FUNC LOW CONT:SIGN:KDMI:MAIN2:FUNC LOW... -
Page 30: Table 1-12 U9428C Logic States
Getting Started Table 1-12 U9428C Logic States (Ctrl S of VNA to Ctrl M of switch module) Ctrl S Control Logic 1 Control Logic 2 Control Logic 3 RF Port VNA SCPI Command CONT:SIGN:KDMI:SUB3:FUNC LOW CONT:SIGN:KDMI:SUB4:FUNC LOW CONT:SIGN:KDMI:SUB6:FUNC LOW CONT:SIGN:KDMI:SUB3:FUNC HIGH CONT:SIGN:KDMI:SUB4:FUNC LOW CONT:SIGN:KDMI:SUB6:FUNC LOW CONT:SIGN:KDMI:SUB3:FUNC LOW... -
Page 31: U9422X, U9424X And U9428X Led Indication
Getting Started U9422x, U9424x and U9428x LED Indication RF Connector USB Connector Figure 1-8 U9422x, U9424x and U9428x overview Table 1-13 LED color and instrument state LED color Instrument state Green Indicates that the switch module is turned ON and functioning properly. Indicates that an error has occurred. - Page 32 Getting Started THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U9422x, U9424x and U9428x Startup and Service Guide...
-
Page 33: Specifications
Keysight U9422A/B/C, U9424A/B/C and U9428A/B/C Startup and Service Guide Specifications Environmental Specifications Physical Specifications This chapter provides you the environmental specifications of the U9422x/ U9424x/U9428x FET solid state switch module. -
Page 34: Environmental Specifications
Environmental Specifications Keysight U9422x/U9424x/U9428x FET solid state switch module is designed to fully comply with Keysight Technologies’ product operating environmental specifications as shown in the table below. Samples of this product have been type tested in accordance with the Keysight... -
Page 35: Physical Specifications
U9422x, U9424x and U9428x FET solid state switch modules. Table 2-2 U9422x, U9424x and U9428x Weight Model number Weight U9422A (USB/Interconnect for multi-port 107.4 gms (0.236 lbs) configuration with PXIe and USB VNA) U9422A (Solder connector) 72.0 gms (0.158 lbs) U9422B (USB/Interconnect for multi-port 110 gms (0.242 lbs) -
Page 36: Table 2-3 U9422X, U9424X And U9428X Dimensions
U9422x, U9424x and U9428x Dimensions Model number Dimensions U9422x (USB/Interconnect for 82.2 mm H x 64.5 mm W x 23.0 mm D (except U9422A: 85.0 mm H x 70.2 mm W x multi-port configuration with 23.0 mm D) PXIe and USB VNA) 67.7 mm H x 64.5 mm W x 23.0 mm D (except U9422A: 70.5 mm H x 70.2 mm W x... -
Page 37: Figure 2-1 U9422X Switch Module
Specifications Figure 2-1, Figure 2-2 Figure 2-3 show the dimensions of the Keysight U9422x, U9424x and U9428x FET solid state switch modules respectively. Figure 2-1 U9422x Switch Module Keysight U9422x, U9424x and U9428x Startup and Service Guide... -
Page 38: Figure 2-2 U9424X Switch Module
Specifications Figure 2-2 U9424x Switch Module Keysight U9422x, U9424x and U9428x Startup and Service Guide... -
Page 39: Figure 2-3 U9428X Switch Module
Specifications Figure 2-3 U9428x Switch Module For the detailed characteristics and specifications of the Keysight U9422x, NOTE U9424x and U9428x switch modules, refer to the Technical Overview document www.keysight.com/my/en/assets/3121-1500/technical-overviews/ FET-Solid-State-Switches.pdf Keysight U9422x, U9424x and U9428x Startup and Service Guide... - Page 40 Specifications THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U9422x, U9424x and U9428x Startup and Service Guide...
-
Page 41: Service And Maintenance
Keysight U9422A/B/C, U9424A/B/C and U9428A/B/C Startup and Service Guide Service and Maintenance Service Maintenance... -
Page 42: Service
Service and Maintenance Service The U9422x/U9424x/U9428x switch module does not have internal adjustments and should only be repaired by service-trained personnel. Should it become necessary to return the U9422x, U9424x and U9428x for repair or service, contact your nearest Keysight Service Center. Maintenance The connectors, particularly the connector faces, must be kept clean. - Page 43 Service and Maintenance Keep isopropyl alcohol away from heat, sparks, and flame. Store it in a tightly WARNING closed container. It is extremely flammable. In case of fire, use alcohol foam, dry chemicals, or carbon dioxide; water may be ineffective. Use isopropyl alcohol with adequate ventilation and avoid contact with eyes, skin, and clothing.
-
Page 44: Make Good Connections
Service and Maintenance Make Good Connections Good connections require a skilled operator. The most common cause of measurement error is bad connections. The following procedures explain how to make good connections. Make a Preliminary Connection 1 Ground yourself and all devices. Wear a grounded wrist strap and work on a grounded, conductive table mat. -
Page 45: Figure 3-1 Wrench Positions
Service and Maintenance Make the Final Connection Using a Torque Wrench 1 Use a torque wrench to make the final connection. The table below provides information about the torque wrench. Using the torque wrench guarantees that the connection is not too tight, preventing possible connector damage. It also ensures that all connections are equally tight each time. -
Page 46: Figure 3-2 Using The Torque Wrench
Service and Maintenance 4 Hold the torque wrench lightly, at the end of the handle only (beyond the groove). Refer to Figure 3-2. Torquing direction Stop when handle begins to yield Figure 3-2 Using the Torque Wrench 5 Apply downward force perpendicular to the wrench handle. Refer to Figure 3-2. - Page 47 Service and Maintenance Separate a Connection To avoid lateral (bending) force on the connector mating plane surface, always support the devices and connections. Turn the connector nut, not the device body. Major damage to the center CAUTION conductor can occur if the device is twisted. 1 Use an open-end wrench to prevent the device body from turning.
- Page 48 Service and Maintenance THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U9422x, U9424x and U9428x Startup and Service Guide...
- Page 49 This information is subject to change without notice. Always refer to the English version at the Keysight website for the latest revision. © Keysight Technologies 2021-22 Edition 2, June 15, 2022 U9422-90001 www.keysight.com...
