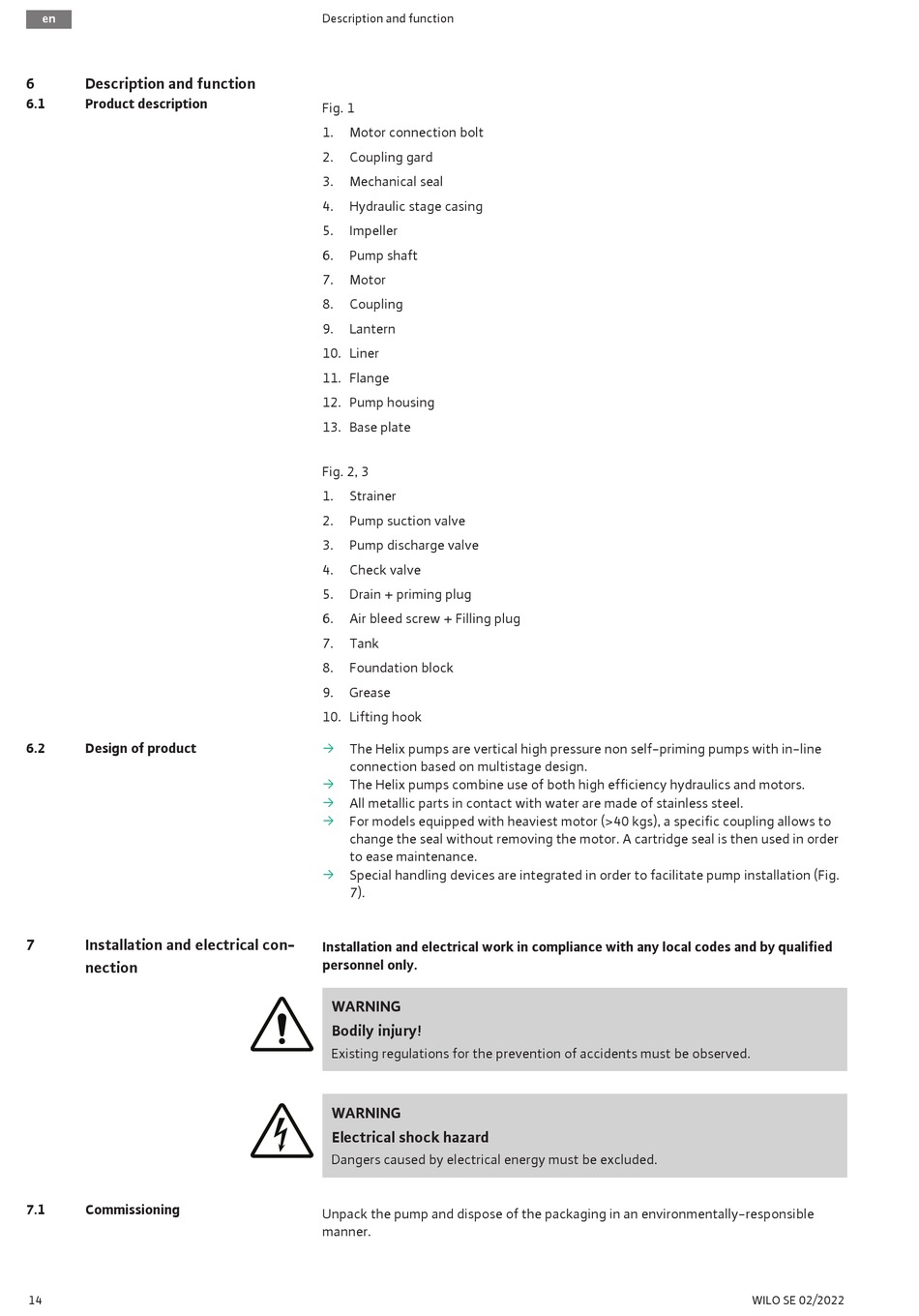

Description and function
Fig. 1
1. Motor connection bolt
2. Coupling gard
3. Mechanical seal
4. Hydraulic stage casing
5. Impeller
6. Pump shaft
7. Motor
8. Coupling
9. Lantern
10. Liner
11. Flange
12. Pump housing
13. Base plate
Fig. 2, 3
1. Strainer
2. Pump suction valve
3. Pump discharge valve
4. Check valve
5. Drain + priming plug
6. Air bleed screw + Filling plug
7. Tank
8. Foundation block
9. Grease
10. Lifting hook
ƒ
The Helix pumps are vertical high pressure non self-priming pumps with in-line
connection based on multistage design.
ƒ
The Helix pumps combine use of both high efficiency hydraulics and motors.
ƒ
All metallic parts in contact with water are made of stainless steel.
ƒ
For models equipped with heaviest motor (>40 kgs), a specific coupling allows to
change the seal without removing the motor. A cartridge seal is then used in order
to ease maintenance.
ƒ
Special handling devices are integrated in order to facilitate pump installation (Fig.
7).
Installation and electrical work in compliance with any local codes and by qualified
personnel only.
WARNING
Bodily injury!
Existing regulations for the prevention of accidents must be observed.
WARNING
Electrical shock hazard
Dangers caused by electrical energy must be excluded.
Unpack the pump and dispose of the packaging in an environmentally-responsible
manner.
