VL3600 PROFILE IP
CURRENT VERSUS VOLTAGE
provides the luminaire's current draw at specific
TABLE 1
voltages. Total luminaire current is calculated with the
lamp on and all motors sequencing.

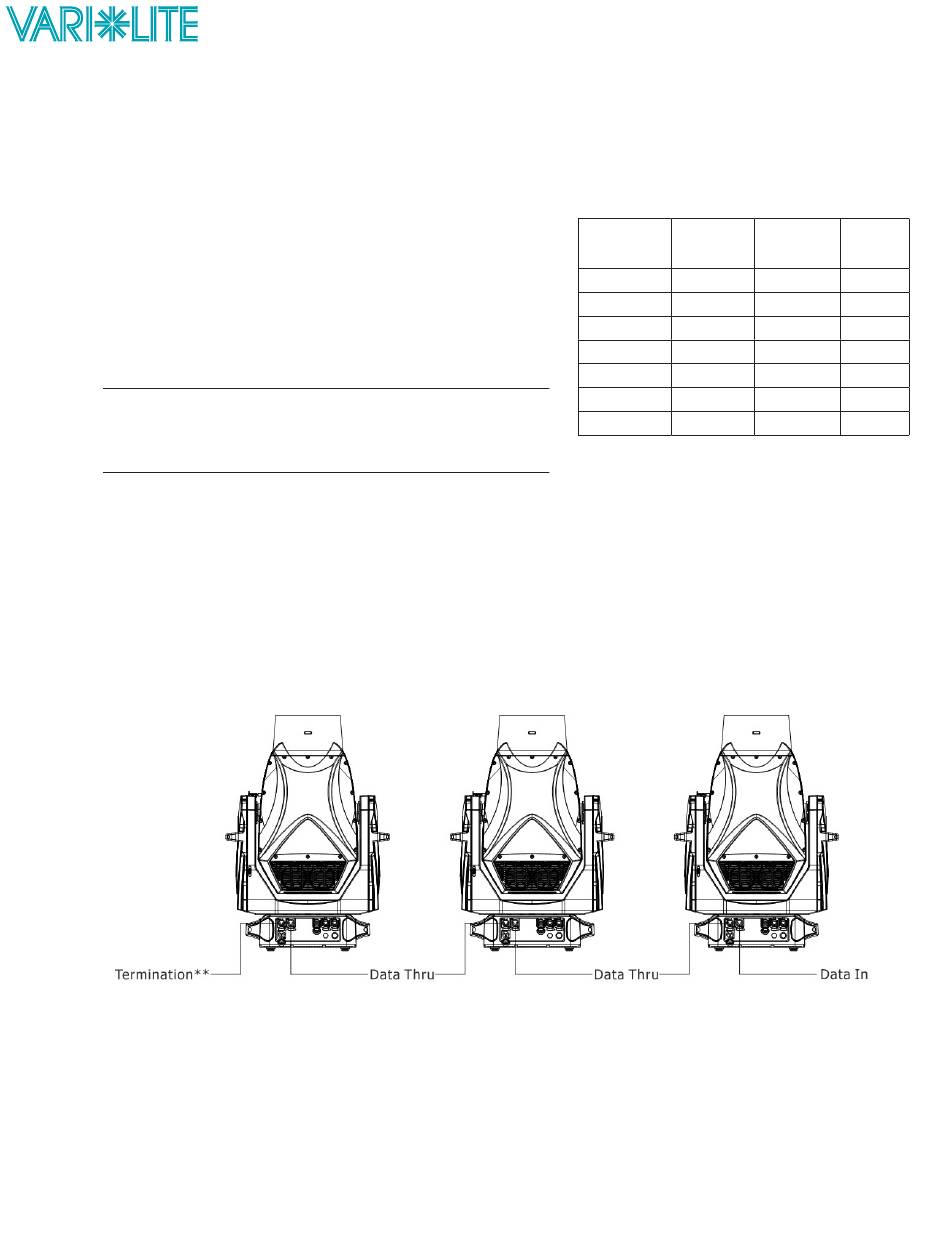

CONNECTING DATA

A maximum of 32 luminaires may be connected in any
one DMX data link.
This maximum limit applies to the luminaire "daisy
NOTE:
chain" only. Your system or console may require fewer
luminaires on a single data link path. Consult your console
documentation for more information.
To connect power and data:
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
Connect data cable from console to first luminaire in chain at DATA IN connector.
If required, connect additional data cables from DATA THRU connectors to DATA IN connectors
of remaining luminaires in link.
At last luminaire in link, install male termination connector at DATA THRU connector. (Luminaires
and other devices on the same DMX chain may not function properly without termination.)
Connect AC Input Cable connector to power input source.
Dress AC input and data cables and secure them so that they will not interfere with luminaire
head and yoke movement.
TAbLE 1. CURRENT VS. VOLTAGE (1000W LED)
AC VOLTAGE
AT 60HZ
120V
180V
208V
230V
240V
264V
277V
2
Quick Start Guide
REV A 06/28/22
TOTAL TOTAL
LUMINAIRE LUMINAIRE
CURRENT POWER
12.66a 1505W 0.996
8.22a 1475W 0.988
7.12a 1472W 0.987
6.32a 1460W 0.987
6.12a 1445W 0.983
5.58a 1440W 0.980
5.38a 1435W 0.966
PFC
