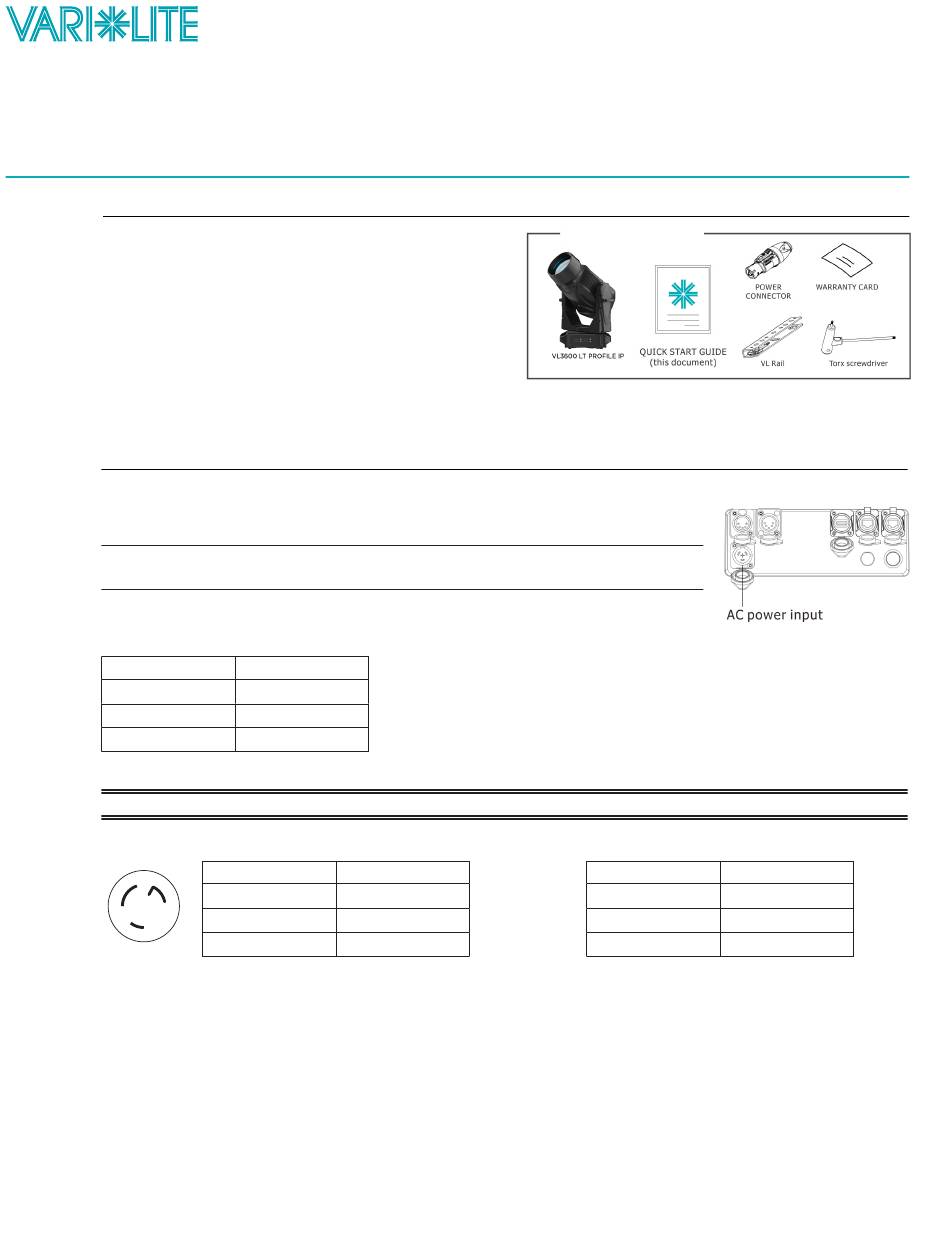

VL3600 LT PROFILE IP
OVERVIEW
This document provides basic setup instructions
and safety warnings for the following product(s):
VL3600 LT
VL3600 LT
VL3600 LT
VL3600
VL3600
iNStaLLatiON aNd SetuP
CONNECTING POWER
This fixture requires standard AC power distribution from 120-240VAC, 50/60
Hz. Current required depends on the AC supply voltage and product model.
The mating True1 IP 65 compatible connector is supplied; however, you will
NOTE:
need to purchase or construct a cable appropriate for your application.
Depending on the application, the luminaire's AC input cable may require
a different connector. If required, install a new connector meeting your
requirements using the following wire color code reference:
WIRE*
Green/yellow
Blue
Brown
* international (Harmonized) Standard
WARNING:
X
G
Y
74817-050
VL3600 LT-Touring Black
74817-150
VL3600 LT-Touring White
74817-TBD
VL3600 LT-Flight Case insert
74817-051
VL3600 LT-Install Black
74817-151
VL3600 LT-Install White
CONNECTION
ac ground
ac neutral
ac line
DO NOT connect to three-phase service in countries with 240V power.
Single-phase power from 120-240V RMS:
CONNECTION
ac neutral
ac line
Ground (earth)
INCLUDED ITEMS
PIN
X
Y
G
1
Quick Start Guide
Two-phase power at 208V RMS:
CONNECTION
Phase 1
Phase 2
Ground (earth)
REV A 07/22/24
PIN
X
Y
G

Advertisement

loading
Need help?

Need help?

Do you have a question about the VL3600 LT and is the answer not in the manual?

Questions and answers

Summary of Contents for Vari Lite VL3600 LT

  • Page 1 Quick Start Guide REV A 07/22/24 VL3600 LT PROFILE IP OVERVIEW This document provides basic setup instructions INCLUDED ITEMS and safety warnings for the following product(s): VL3600 LT 74817-050 VL3600 LT-Touring Black VL3600 LT 74817-150 VL3600 LT-Touring White VL3600 LT...
  • Page 2: Connecting Data

    Quick Start Guide REV A 07/22/24 VL3600 LT PROFILE IP CURRENT VERSUS VOLTAGE TAbLE 1. CURRENT VS. VOLTAGE (1000W LED) TOTAL TOTAL provides the luminaire’s current draw at specific TABLE 1 AC VOLTAGE LUMINAIRE LUMINAIRE voltages. Total luminaire current is calculated with the...
  • Page 3: Floor Mounting

    HANGING THE FIXTURE The VL3600 LT PROFILE IP can be hung horizontally or 45° vertically from any structure designed to work with the type of load created by this moving luminaire. Two mounting truss hooks or other mounting hardware are required.
  • Page 4 Quick Start Guide REV A 07/22/24 VL3600 LT PROFILE IP FIGURE 1. INSTALLING bRACKETS ON LUMINAIRE ENCLOSURE Installing in Truss: Step 1. Using two people, lift luminaire into mounting position. Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g.
  • Page 5: Menu Controls

    Quick Start Guide REV A 07/22/24 VL3600 LT PROFILE IP MENU CONTROLS The menu system is controlled by an OK (Enter), MENU (Escape), and two Arrow (▲▼) buttons. Press and hold the ENTER button, and then quickly press the UP▲, Down▼, UP▲, DOWN▼...
  • Page 6 Quick Start Guide REV A 07/22/24 VL3600 LT PROFILE IP Quick reFereNce dMX MaPS The short form DMX maps are available on the following pages. Visit the product page for full DMX maps. • table 2. 16-Bit Mode • table 3. 16-Bit eNHaNced Mode (deFauLt)enhanced Mode (default) TAbLE 2.
  • Page 7 Quick Start Guide REV A 07/22/24 VL3600 LT PROFILE IP TAbLE 3. 16-bIT ENHANCED MODE (DEFAULT) PARAMETER PARAMETER CHANNEL CHANNEL intensity High iris intensity Low Frame 1a Pan High Frame 1B Pan Low Frame 2a tilt High Frame 2B tilt Low...
  • Page 8 Quick Start Guide REV A 07/22/24 VL3600 LT PROFILE IP It is not recommended to power any Vari-Lite fixture from a dimmer - even in 'NONDIM' mode. Dimmer WARNING: and non-dim modules are not suitable sources of power because their output modifies the AC wave form. This may work for a short time, but will eventually result in power problems, operating errors, and/or fixture failure and may void the warranty.
  • Page 9: Safety Warnings And Notices

    The information presented in this document is not intended as any commercial o er and does not form VL3600 Lt PrOFiLe iP Quick Start Guide part of any quotation or contract, unless otherwise agreed by Signify.
