Floor Mounting; Hanging The Fixture - Vari Lite VL3600 PROFILE IP Quick Start Manual

VL3600 PROFILE IP

FLOOR MOUNTING

All luminaires included in this manual are designed to sit directly on its base in a floor installation
application. When used in this type of application, be sure to leave enough space around the luminaire
to allow proper, uninterrupted airflow for cooling and movement.

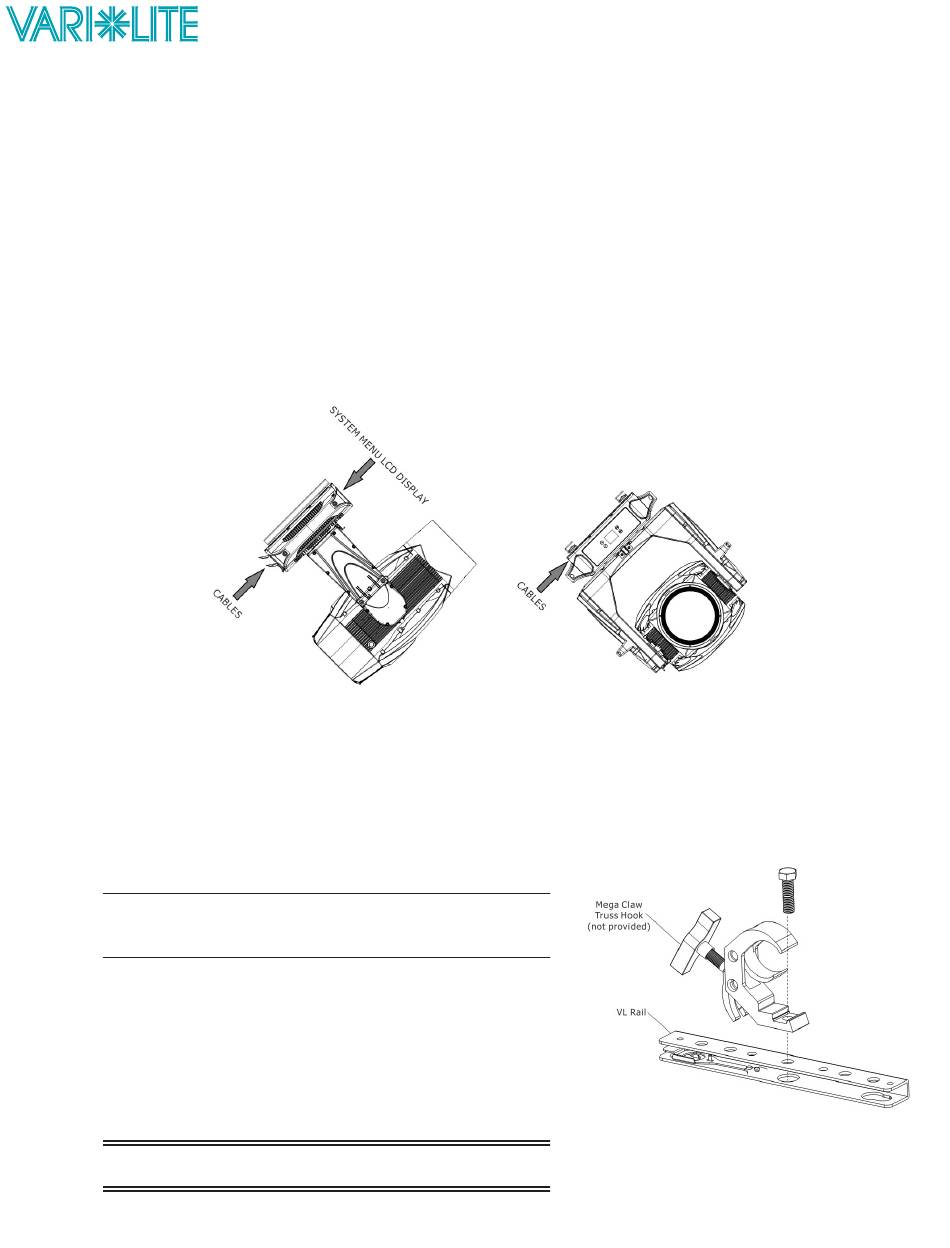

HANGING THE FIXTURE

The VL3600 PROFILE IP can be hung horizontally or 45° vertically from any structure designed to work
with the type of load created by this moving luminaire. Two mounting truss hooks or other mounting
hardware are required. Many compatible truss hooks are available from different manufacturers for your
particular needs.
A minimum of two hooks per luminaire is required. If mounting method does not use truss hooks, two
attachment points, per luminaire, are required.
Install mounting hardware and brackets:
Step 1.
Various types of truss hooks can be used. The Mega
NOTE:
Claw truss hook, as well as many other standard hooks, can be
ordered separately.
Step 2.
Step 3.
WARNING:
seated after the bracket is installed on the fixture.
Install truss hooks on two provided truss hook
brackets as required as shown.
Determine required configuration of bracket
installation. Brackets may be installed in many
different orientations as shown.
While pulling up on locking mechanism
release, fit keyed holes onto raised mounting
buttons at bottom of enclosure. Slide forward
and release locking mechanism to lock in
place. Ensure brackets are locked securely.
Ensure that the bracket locking mechanism is fully
3
Quick Start Guide
REV A 06/28/22
