VL3600 PROFILE IP
Installing in Truss:
Step 1.
Step 2.
Step 3.
a.
b. Loop safety cable at least once around truss/pipe and secure around pipe.
Step 4.
Step 5.

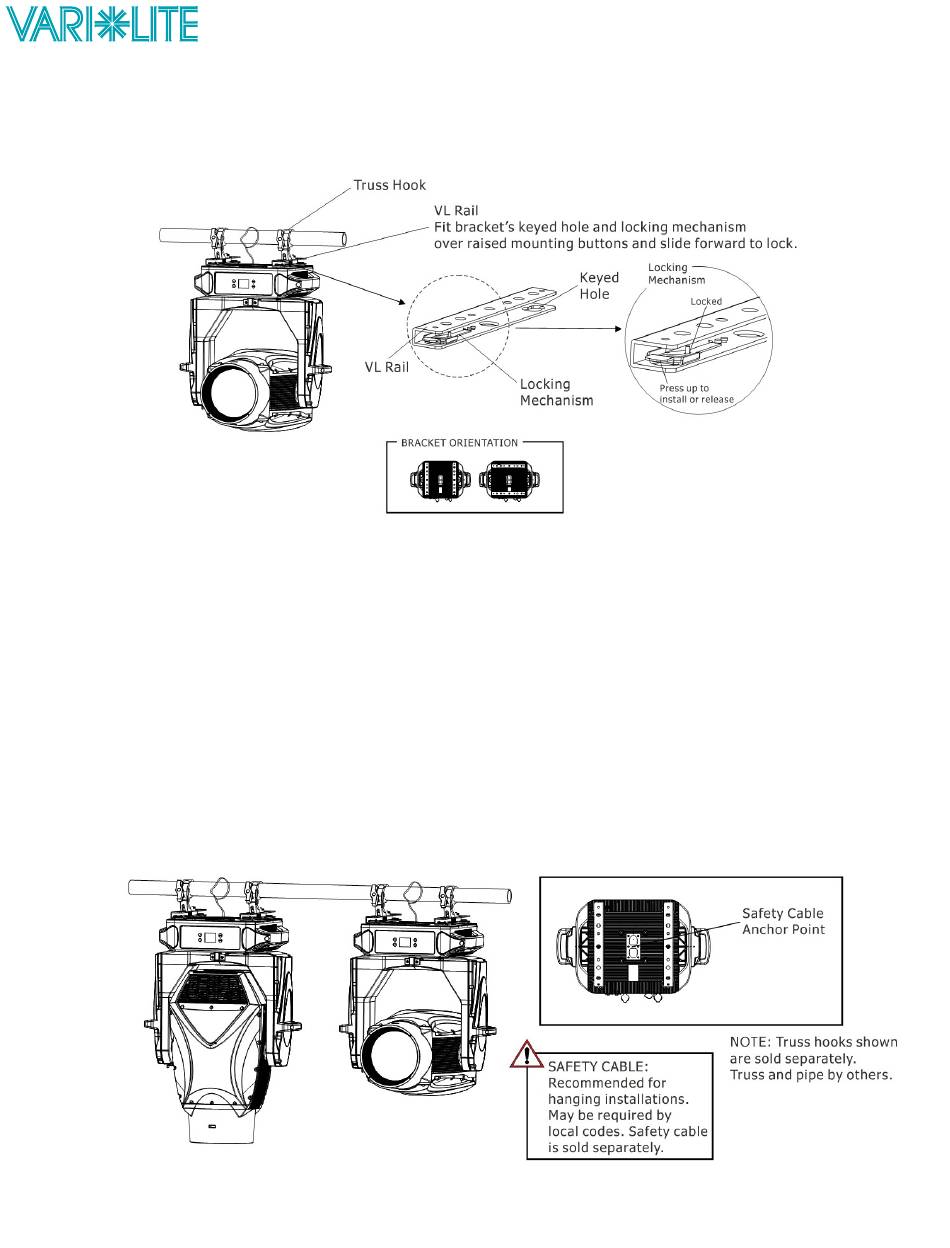

FIGURE 1. INSTALLING bRACKETS ON LUMINAIRE ENCLOSURE
Using two people, lift luminaire into mounting position.
Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g.
wing bolt) is properly tightened and that luminaire is fully supported.
Attach safety cable (as required) as follows:
Loop safety cable at least once around safety cable anchor point rod.
Make sure tilt and pan locks are disengaged so luminaire moves freely.
Connect power and data cables.
