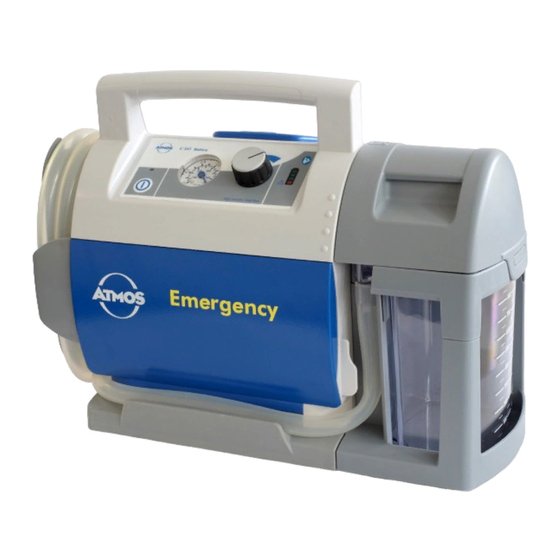

Atmos C 341 Quick Manual

Quick Guide ATMOS
This Quick Guide does not replace the operating instructions.
For your safety
• Recharge the battery at the latest after 3 months, even if you do
not use the device.
• Perform a function check after each use. Perform a function
check every 4 weeks in case you do not use the device for a
longer period.
Device overview
1
Control panel
2
Battery compartment cover
3
Device base
Display of the battery status
• The following display values are not valid during battery charging.
• The battery status must be supervised visually.
• If only the red LED lights up, although the battery has been loaded
for a longer period, the battery is defective.
Support
Mounting
C 341 Battery
®
1
2
3
4
Release button wall and
device support
5
Hose rewind with suction
hose
6
Connection charging
accessories
7
Guide for the wall and device
support
• The device may only be used by persons who were medically
trained, and were trained in the medical suction.
• Do not operate the device without a bacterial filter.
4
5
12
6
7 11
8
9
10
11
12
≤ 100 % ca. 70 %
Removal
10
Display of battery status
Vacuum controller
Vacuum display
On/off button
Power indicator
ca. 40 % < 10 %
8
9
