Summary of Contents for Atmos Hygrotherm Plus
- Page 1 English Hygrotherm plus 0124 GA1GB.140301.0 2021-07 Index 27...
-
Page 2: Table Of Contents
Content Introduction ............3 Notes on operating instructions ......3 Intended use ............4 Function ..............4 Explanation of symbols .........4 For your safety ............5 Advice for the user for maintaining hygienic status ..............6 Setting up and starting up .........7 Scope of supply ........... 7 Illustrations ............8 Connections ............11 3.3.1... -
Page 3: Introduction
• The product Hygrotherm plus bears the CE marking CE- 0124 in accordance with EC Council Directive 93/42/EEC concerning medical devices and meets the basic require- ments of Annex I to this directive. -
Page 4: Intended Use
1.0 Introduction 1.2 Intended use Name: ATMOS Hygrotherm Main function: Heating of the supplied water to body temperature and generation 1.4 Explanation of symbols of a targeted jet of water with a defined flow rate. Observe operating instructions! Intended use / in-... -
Page 5: For Your Safety
2.0 For your safety • The Hygrotherm plus is produced according to IEC 601/ • Use only for irrigation of auditory canal! EN 60601 and listed in the following classes: • ATMOS is not liable for personal injury and damage to... -
Page 6: Advice For The User For Maintaining Hygienic Status
2.0 For your safety 2.1 Important instructions for the maintenance of the hygiene status of warm water irri- gation units For loosening cerumen in the auditory canal and stimulating the organ of equilibrium, ATMOS offers the warm water unit Hygro- therm plus (37 °C). These units heat the drinking water which comes from the household connection to the preselected temperature. The oper- ating instructions must be followed, or the increased number of pathogens in the rinse water can affect the health of sensitive patients. -
Page 7: Setting Up And Starting Up
3.0 Setting up and starting up 3.1 Scope of supply Quantity Description Basic unit Irrigation handle with connection hose Jet connection for irrigation handle 80 Splash guard for attachment to jet con- nection Hose tips Water filter cpl. 3/4"A–3/4"l Water supply hose Waste water hose Power cable Operating Instructions... -
Page 8: Illustrations

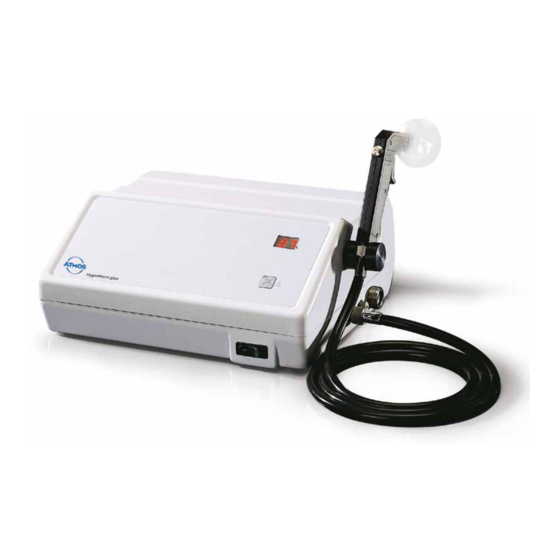

3.0 Setting up and starting up 3.2 Illustrations Hygrotherm plus — Fig. 1. Front view Main switch Key switch for heating ON/OFF (energy saving mode) Temperature display (two-figure number, resolution 1 °C), actual value indication Fig. 2. Rear view Type plate Device plug with fuse compartment... - Page 9 3.0 Setting up and starting up p = +2000...+6000hPa t = +7...+19.5 °C Fig. 3. Side view Support for handle Connection for double-barrelled hose Connection for waste water hose * Connection for water supply hose...
- Page 10 3.0 Setting up and starting up Fig. 4. Irrigation handle Handle Connection for double-barrelled hose Three-hole gasket Knurled screw Release lever Valve plunger Jet connection for irrigation handle Splash guard for attachment to jet connection Double-barrelled hose Hose tip The jet connection must be disinfected after each pa-...
-
Page 11: Connections
EN 1717, an unpressurized water sepa- ration with overflow is required. Therefore, ATMOS recommends installing the water separation unit ATMOS Aqua Clean, REF 502.1200.0, between the water supply and the device in order to meet the connection requirements according to EN 1717. -
Page 12: Connection Of The Irrigation Handle
3.0 Setting up and starting up 3.3.4 Connection of the irrigation handle • Insert a “three-hole gasket” (, Fig. 4) in the double-bar- relled hose and screw it (, Fig. 4) on the unit connection (, Fig. 3). ) Use only “three-hole gaskets” or the unit will not function correctly! • Insert a “three-hole gasket” in the irrigation handle and screw it on the free end of the double-barrelled hose. • Open the water tap. Check whether all connections are tight. -
Page 13: Operation
4.0 Operation 4.2.2 Irrigation mode Before switching on the unit, make sure that the handle is in its holder (jet must point to reverse side of the unit). Purpose: 4.1 Selecting temperature level Rinsing of the auditory canal. Properties: • After operating the main power switch, the automatic activation of the thermal process begins for reducing •... -
Page 14: Cleaning And Care
Take care that no liquid penetrates The hose tips must be exchanged after each use. the device. The cleaning agents and disinfectants listed in The surfaces of the Hygrotherm plus resist most common section 5.2 are all suitable. surface disinfectants. -
Page 15: Cleaning Method For Handle With Jet Connection For Water Irrigation Tip
5.0 Cleaning and care 5.3 Cleaning method for handle with jet connection for water irrigation tip The ATMOS appliances Variotherm and ATMOS Hygrotherm are used, according to the rules, with disposable hose tips (dispos- ables). These hose tips must be disposed of after each application to the patient. What When Qualified and trained staff who are familiar Details... -
Page 16: Maintenance And Service
ATMOS recommends: work should be carried out by an authorized ATMOS service partner. This ensures that repairs and test- ing are carried out professionally, original spare parts are used and warranty claims remain unaffected. • At least every 12 months a repeat test of the electrical safety should be performed according to IEC 62353. ATMOS recom- mends an inspection according to the manufacturer’s specifications. -
Page 17: Troubleshooting
7.0 Troubleshooting Error in temperature display “F0” Handle is not in its support • Insert handle in its support to allow thermal process for reducing bacterial count to start (jet connection must point to the back of the unit). • Replace handle (art. no. 502.0963.0) “F1”... -
Page 18: Accessories And Spare Parts
8.0 Accessories 8.1 Accessories Description ..............................REF Water pre-filter, backwashable (ENT units) ......................502.0990.0 Water filter cpl. 3/4"A–3/4"I/ ..........................530.2085.0 Jet connection for irrigation handle 80 mm ......................508.0427.0 Jet connection for irrigation handle 110 mm ....................508.0429.0 Hose tips ................................502.0844.0 Splash guard for attachment to jet connection ....................501.0331.0 ATMOS Aqua clean (stimulation and irrigation devices) .................. 502.1200.0... -
Page 19: Technical Data
9.0 Technical data Voltage 220 – 240 V~ ± 10%; 50/60 Hz Current consumption 6.8 A Power consumption 1500 VA Fuses F 8 A 250 V Modes of operation • Thermal process for reducing bacterial count • Irrigation mode • Heating OFF (energy saving mode) Water temperature 37 °C ± 0.5 °C Temperature indication Indication accuracy ± 0.5 s ± ½ digit Flow rate 400 ml/min ± 10% Feed temperature of the water... -
Page 20: Disposal
• The Hygrotherm plus does not contain any hazardous materials. • The housing is recyclable. • The component parts of the Hygrotherm plus must be disposed of correctly and the materials are to be separated carefully. • The electronics circuit boards must be fed into the appropriate recycling process. -
Page 21: Notes On Emc
11.0 Notes on EMC ) Medical electrical equipment is subject to special precautions with regard to EMC and must be installed according to the following EMC notes. Guidance and manufacturer’s declaration – ambient conditions The device is suitable for use in the following environments: •... -
Page 22: Notes
12.0 Notes... - Page 23 12.0 Notes...
- Page 24 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch / Germany Phone: +49 7653 689-370 info@atmosmed.de www.atmosmed.com...
