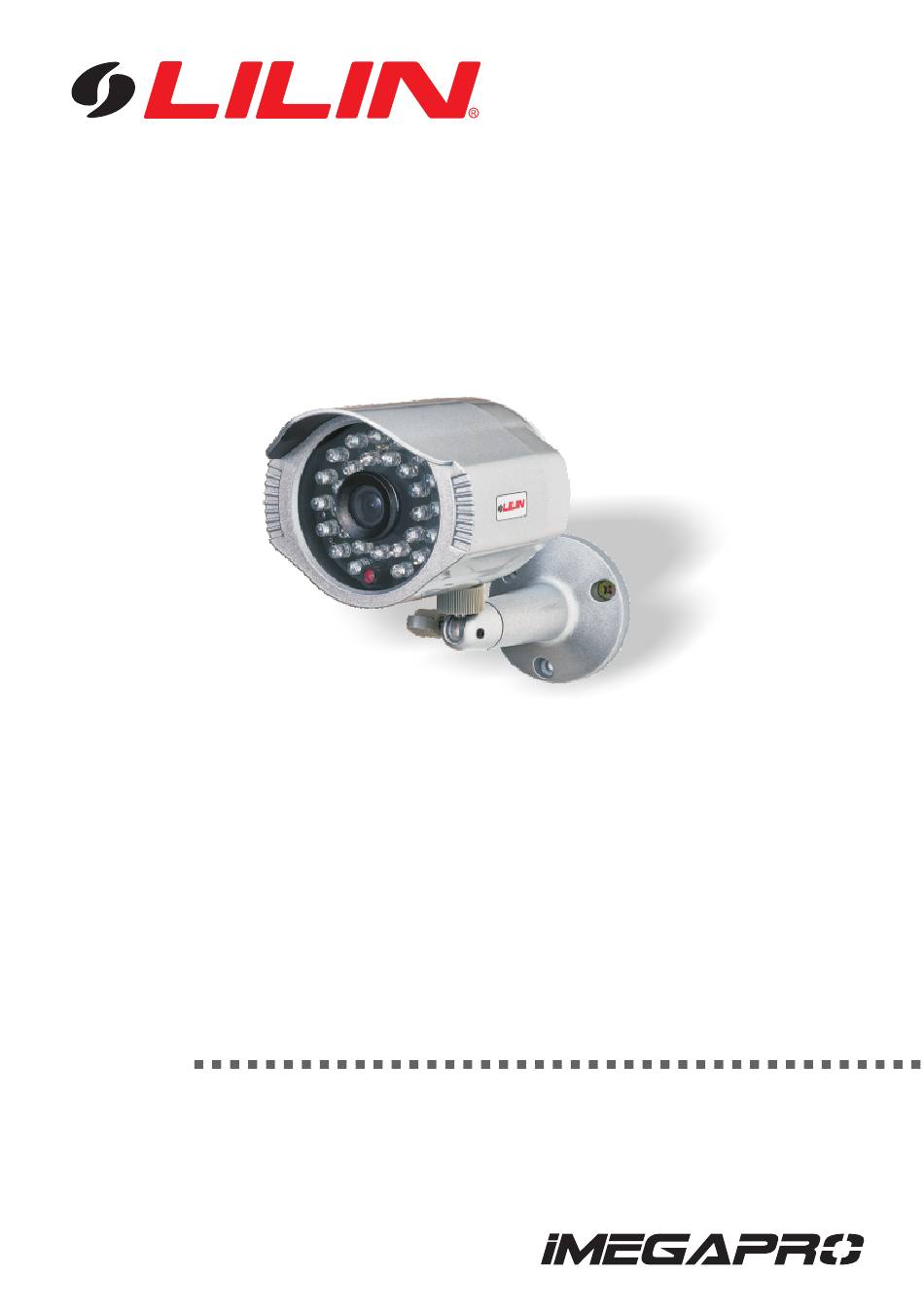

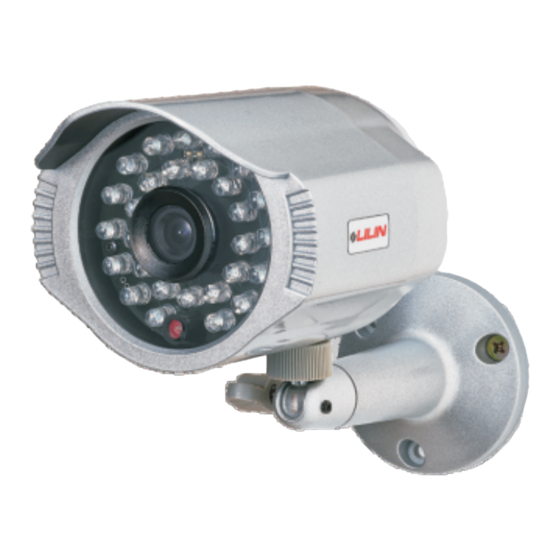

- Page 1 IPR7922E D/N 1080P HD Infrared IP Camera LR7922E D/N 1080P HD Infrared IP Camera Quick Installation Guide...
- Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
- Page 3 Product Overview Unit: mm - 1 -...
-
Page 4: Installation
① Front Cover ② Rear Cover ③ Bracket ④ Pan Adjustment Screw ⑤ Tilt Adjustment Screw ⑥ RJ-45 Network Port (Support PoE) ⑦ DC12V Power Input Jack (DC12V±10%) ⑧ Reset Key To restore the server to factory default setting. ⑨ Micro SD Card Slot ⑩... - Page 5 2. Loosen the pan and tilt adjustment screws on the bracket to turn the camera body to the desired angle and then tighten the screws (FIG.3 & FIG.4). Notes 1. The camera built-in the Micro SD card slot and the Reset Key. Please refer to Product Overview.
- Page 6 3. To make sure camera’s safety and waterproof function, please use the adhesive tape to wrap connected position of DC power cable and Network cable (FIG.9 & FIG.10). System Architectures For connecting HD IP cameras to the network, please follow one of the system architectures: (1).
-
Page 7: Emergency Factory Default
(2). Use a PoE network switch to connect to the network. (3). Use a PoE power injector and a network switch to connect to the network. Emergency Factory Default To restore factory default settings by hardware, please follow these steps: 1. -
Page 8: Software Requirements
JPEG or H.264 Full HD video. When you login to the IP camera by Internet Explorer, the security warning dialog box will prompt the installation of the LILIN Universal ActiveX. Click Install to download it. Configuring IP Addresses by IPScan Software... - Page 9 1. Run the IPScan software. 2. Click Refresh. All available devices should be listed in the device list. 3. Select your device from the list provided. 4. Change the IP address, subnet mask, gateway, or HTTP port for the IP camera. 5.
- Page 10 Internet Browser Settings & Application Required Make sure your Internet browser allows the signed ActiveX plug-in to work on your computer. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in” to “Enable”. You can set this option via Internet Explorer-> Tools-> Options->...
- Page 11 Login There are two levels of user authentication, including admin and guest, that can access the IP camera. Administrator is authorized to reset basic mode settings and see live video, while the guest is allowed to see only live video. The default usernames and passwords are as follows: Administrator Username...
- Page 12 66-LR7922CSM...
